CFS-0088-0813-159-S1-TW (Each)

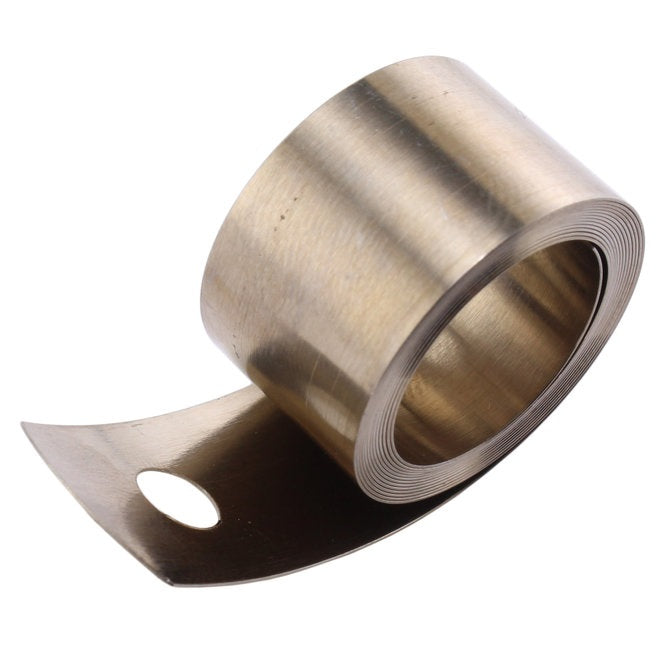

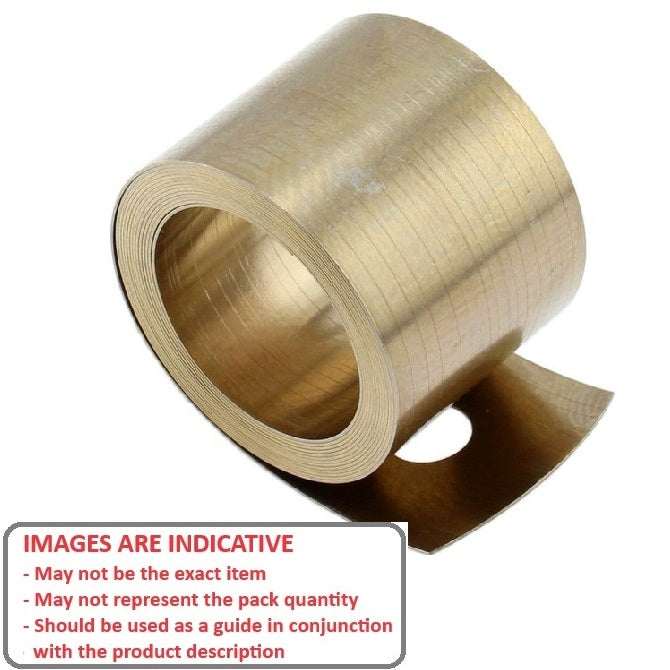

Constant Force Springs - 8.8 Newtons - 812.8x0.254 mm - Spring Steel
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleOrder 50 or more
for $12.65 AUD Each
Couldn't load pickup availability
8.8 Newtons - 812.8x0.254 mm Constant Force Springs - Spring Steel - Sold per Each:
Base Category: Springs - Constant Force
Top Level Category: Springs - Constant Force
Product Details
Load Capacity: 8.8Newtons+/- 10%
Spring Steel

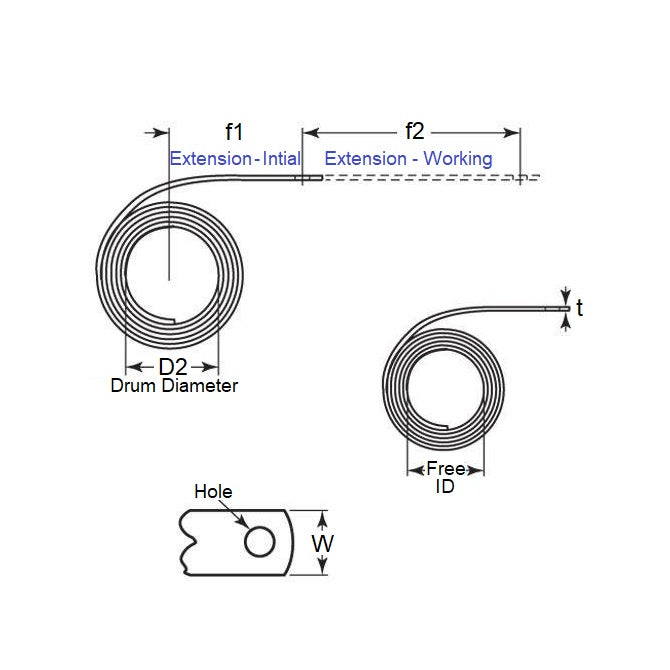

- Load Capacity: 8.8Newtons
+/- 10% - Band Length: 812.8mm
(812.8mm is 32 in.)
- Thickness (t): 0.254mm
(0.254mm is 0.01 in.)
- Band Width (W): 15.88mm
- Free ID (Ref. Only): 28.18mm
- Drum Diameter: 33.8
- Cycles Life: 13000
- Mounting Holes: 1mm
- Initial Extension (f1): 50.8mm
- Max. Working Deflection (f2): 609.6
Brand: MBA
Country of Origin: HK
Product Compliance and Data
Similar to
- A3X50-SK10J32
- A3X50SK10J32
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
CFS00880813159S1TW, CFS00880813
