CMM008-08-030M-R60 (5 Pcs)

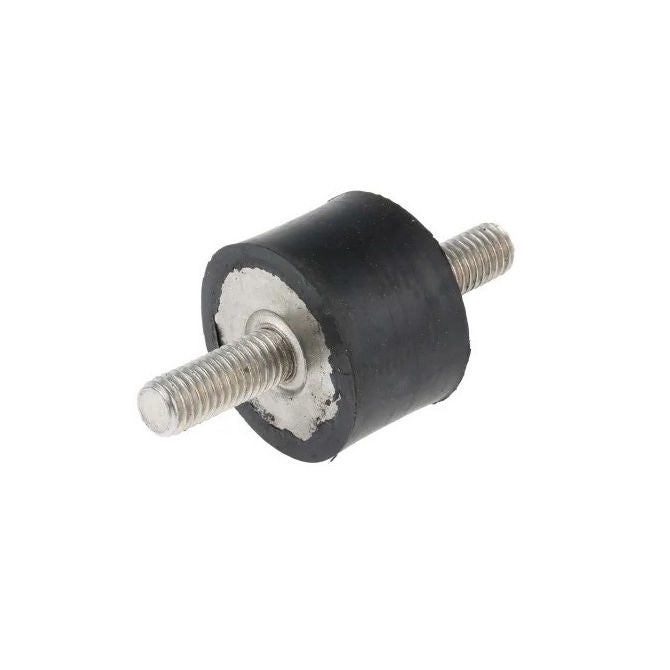

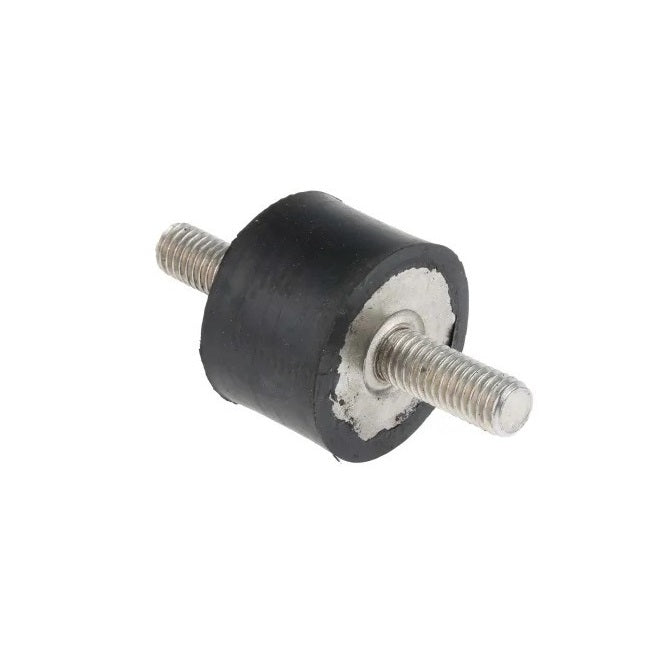

Bobbin Mounts - 8x8 mm - M3x0.5 Male - Natural Rubber Mount

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Bobbin Mounts - 8x8 mm - M3x0.5 - Natural Rubber
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Cylindrical Bobbin Mounts PDF Quick Guide
Price:
$8.50 AUD
$8.50 AUD
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties
 Backorder
Order 50 or more for $7.65 AUD
Backorder now! Backorders for more than the stock quantity are expected before Dec 11, 2025

Base Category: Mounts - Bobbin

Top Level Category: Mounts - Bobbin - Male

Product Details

Nom. Body Diameter (D): 8.0mm
(8.0mm is 0.315 in.)

Natural Rubber
  • Nom. Body Diameter (D): 8.0mm
    (8.0mm is 0.315 in.)
  • Body Height (H): 8.0mm
    (8.0mm is 0.315 in.)
  • Thread Size: M3x0.5
  • Shore Hardness: 60
  • Thread Length (L1): 6.0mm
  • Compression Load: 3.3 (7)Kg (lbs)
  • Deflection: 0.6mm
  • Max Shear Load: 1.6 (3.7)Kg (lbs)
  • Configuration: Male to Male

Brand: MBA
Country of Origin: GB

Product Compliance and Data

Similar to

  • Misumi C-VV0808-06
  • CVV080806
  • A-ZY-3-8-8
  • AZY388
