CMF079-57-1270C-R60 (Each)

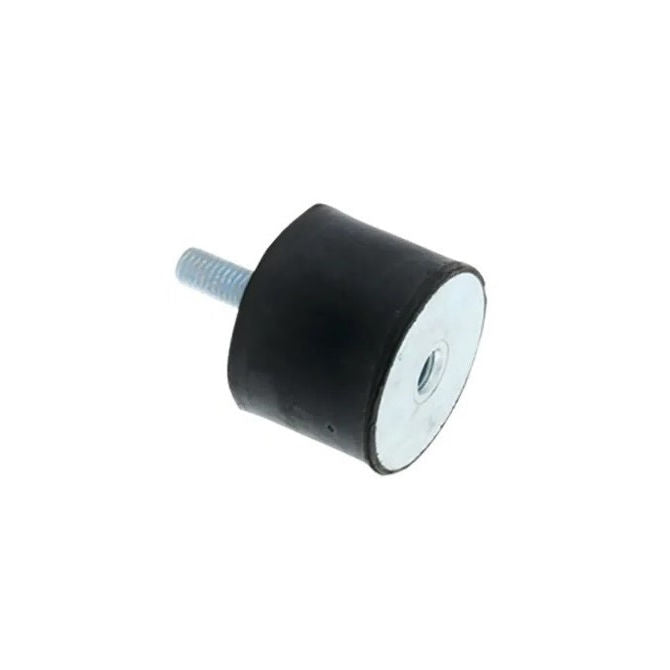

Bobbin Mounts - 79.4x57.2 mm - 1/2 UNC - 13 TPI - Male to Female - Natural Rubber Mount
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleCylindrical Bobbin Mounts PDF Quick Guide
Order 50 or more
for $126.37 AUD Each
3-1/8x2-1/4 inch Mount - 79.4x57.2 mm - 1/2 UNC (13 TPI) Bobbin Mounts - Natural Rubber - Sold per Each:
Base Category: Mounts - Bobbin
Top Level Category: Mounts - Bobbin - Male to Female
Product Details

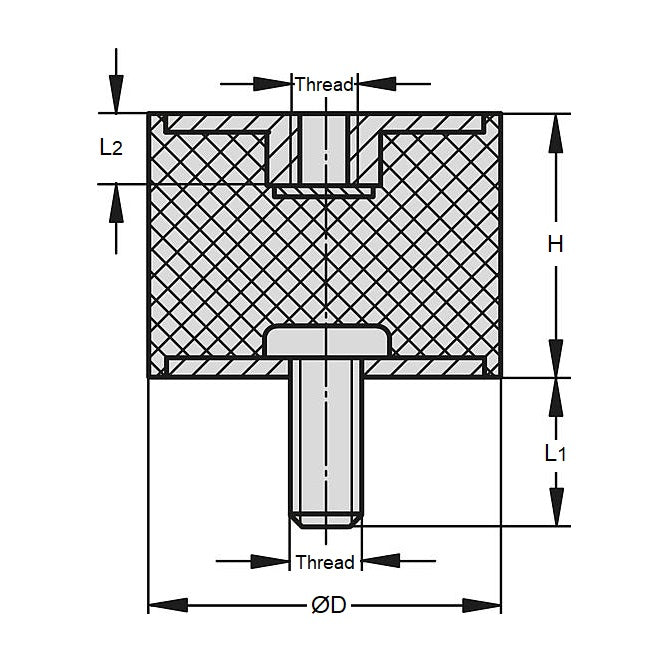

Nom. Body Diameter (D): 79.4mm(79.4mm is 3.126 in.)
Natural Rubber
- Nom. Body Diameter (D): 79.4mm
(79.4mm is 3.126 in.)
- Body Height (H): 57.2mm
(57.2mm is 2.252 in.)
- Thread Size: 1/2 UNC (13 TPI)
- Shore Hardness: 60
- Thread Length/Depth (L1/L2): 31.8 / 13.7mm
- Compression Load: 326 (698)Kg (lbs)
- Max Shear Load: 63.503Kg (lbs)
- Configuration: Male to Female
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Reid Tool® VM-725-1
- VM7251
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
CMF079571270CR60, CMF079571270C
