B-MXL-0078-0095-PPO (Each)

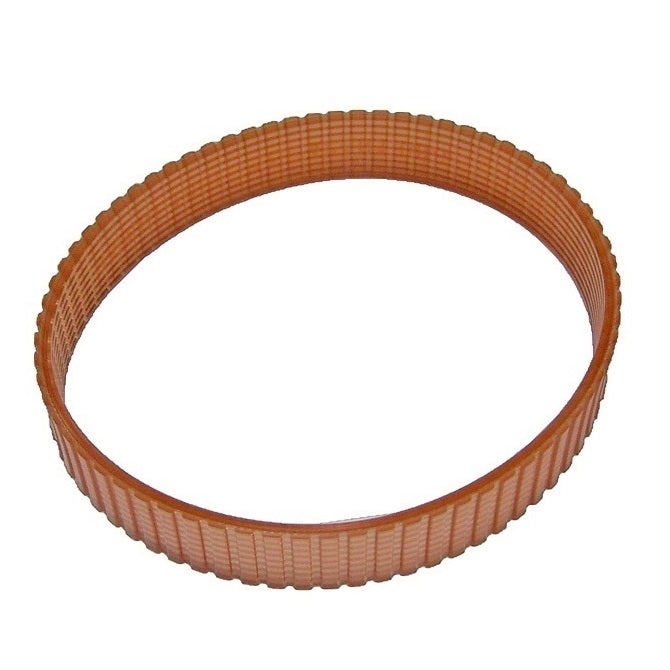

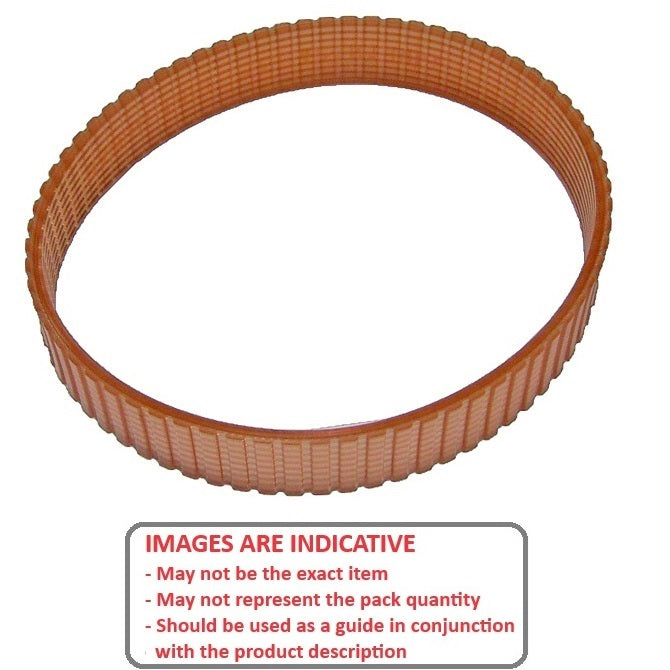

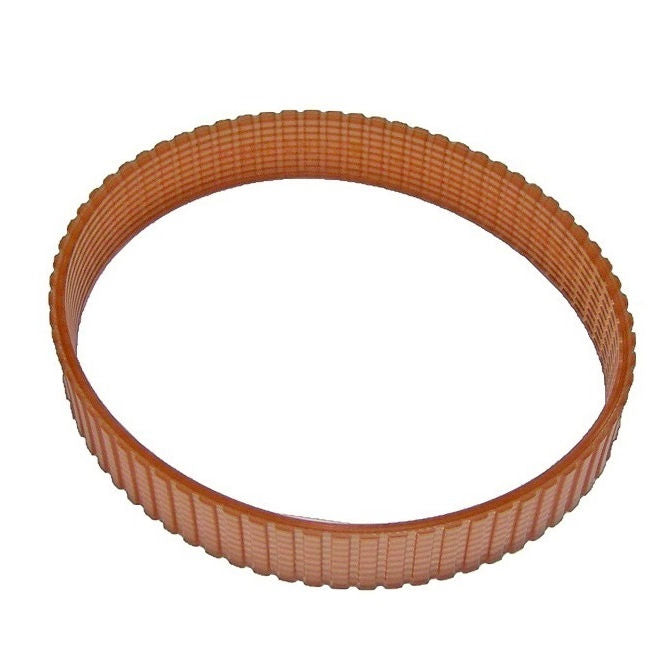

Inch Timing Belts - 78 tooth - 158.496x9.5 mm 2.032mm Pitch MXL - Polyurethane with Polyester Cords Belt
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Timing Belts Catalogue PDF
Timing Pulleys Catalogue
Couldn't load pickup availability
78 tooth - 158.496x9.5 mm Inch Timing Belts - Polyurethane with Polyester Cords - Sold per Each:
Base Category: Belts - Inch Timing
Top Level Category: Belts - Inch Timing - 2.032mm Pitch MXL - 9.5mm Wide
Product Details
Deleted Item. Available while stocks last.
Number of Teeth: 78
Polyurethane with Polyester Cords
- Number of Teeth: 78
- Length: 158.496mm
(158.496mm is 6.24 in.)
- Width: 9.5mm
(9.5mm is 0.374 in.)
- Reinforcement: Polyester
- Appearance: Orange
- Breaking Strength: 533N
- Min Temperature (C): -18Deg C
- Max Temperature (C): 66Deg C
- Tooth Angle (A): 60°
Brand: MBA
Country of Origin: US
Please contact us if you would like a price and delivery for a larger quantity than the available stock.
Product Compliance and Data
Similar to
- Gates® BMXL00780095PP
- A 6G16M078095
- A6G16M078095
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
BMXL00780095PPO, BMXL0078
