CMF075-40-120M23-R60 (Each)

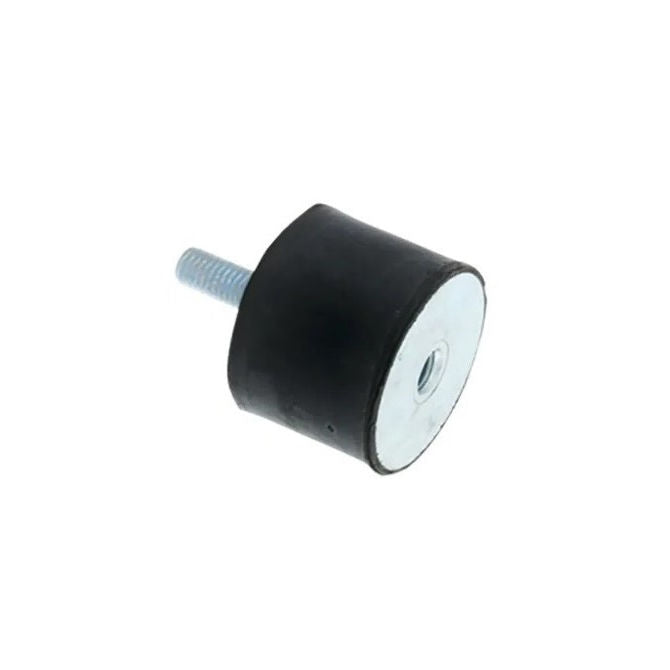

Bobbin Mounts - 75x40 mm - M12x1.75 Male to Female - Natural Rubber Mount
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleCylindrical Bobbin Mounts PDF Quick Guide
Order 50 or more
for $15.83 AUD Each
Couldn't load pickup availability
2x1 inch Mount - 75x40 mm - M12x1.75 Bobbin Mounts - Natural Rubber - Sold per Each:
Base Category: Mounts - Bobbin
Top Level Category: Mounts - Bobbin - Male to Female
Product Details

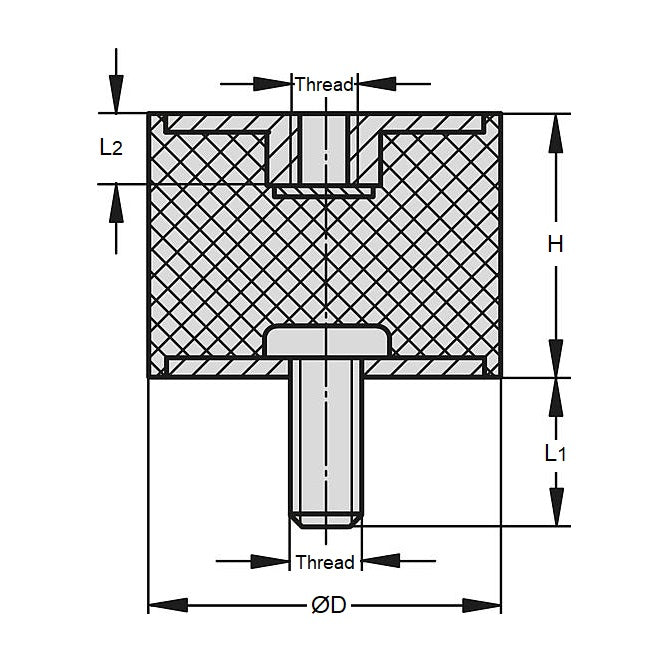

Nom. Body Diameter (D): 75.0mm(75.0mm is 2.953 in.)
Natural Rubber
- Nom. Body Diameter (D): 75.0mm
(75.0mm is 2.953 in.)
- Body Height (H): 40.0mm
(40.0mm is 1.575 in.)
- Thread Size: M12x1.75
- Shore Hardness: 60
- Thread Length/Depth (L1/L2): 23.0 / 12.0mm
- Compression Load: 37 (79)Kg (lbs)
- Max Shear Load: 79.5 (175.3Kg (lbs)
- Configuration: Male to Female
Brand: MBA
Country of Origin: GB
Product Compliance and Data
Similar to
- AVI 7540MF23-60-M12
- 7540MF2360M12
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
CMF07540120M23R60, CMF07540120M23
