CMP-IS8-0200-180-1010

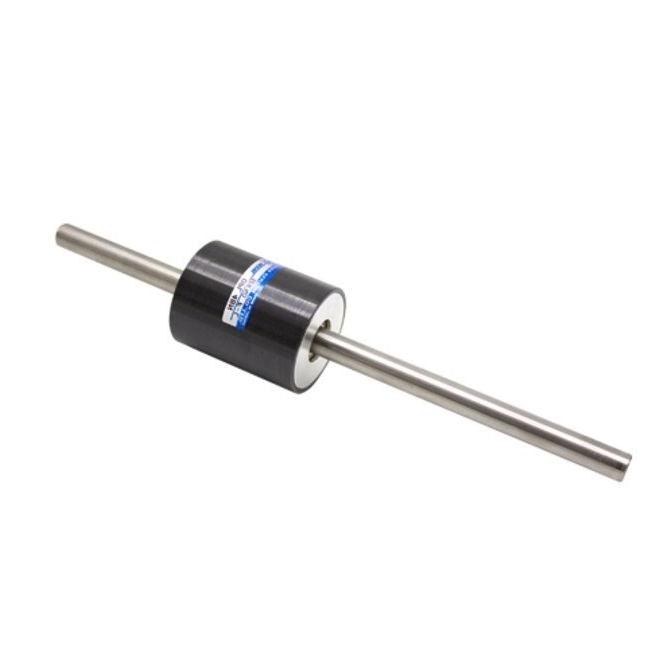

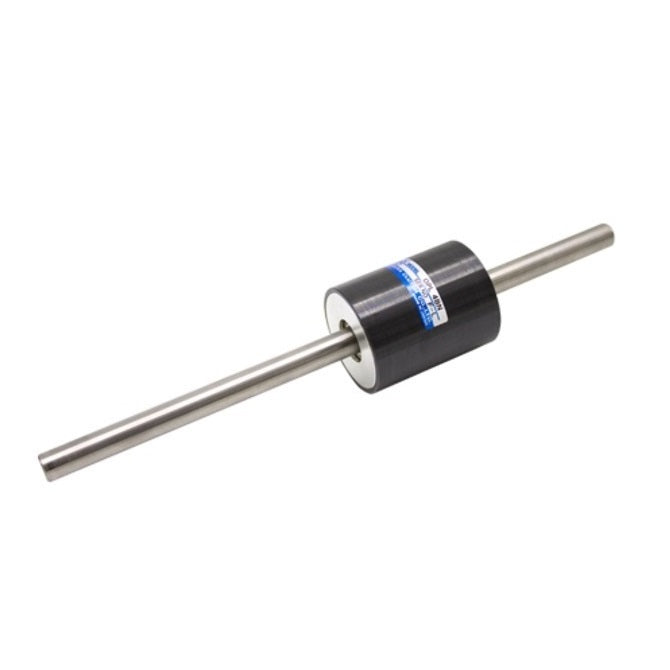

Slip Magnetic Particle Clutches - 714 to 1010 g.cm 8x180 mm No Power Integral Shaft

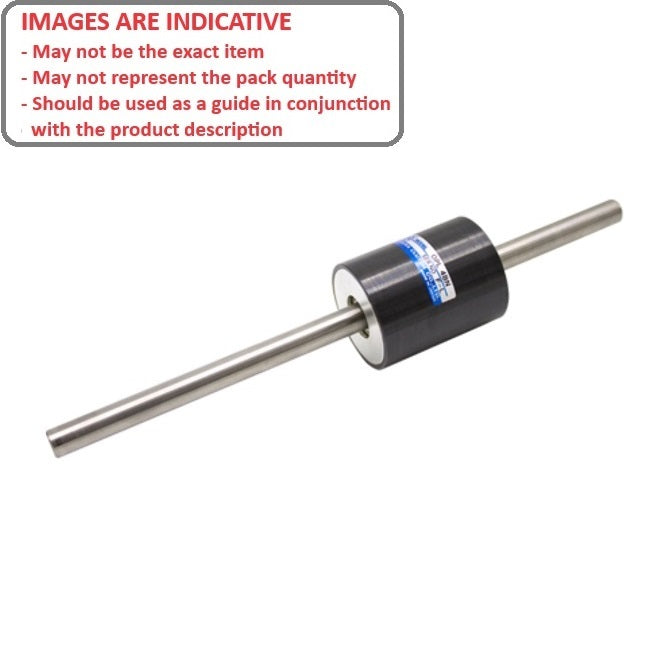

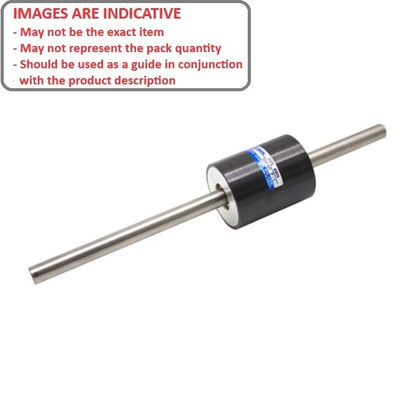

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Slip Magnetic Particle Clutches - 714 to 1010 g.cm 8x180 mm
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale
Price:
$247.77 AUD
$247.77 AUD
Each
Excludes GST and overseas Taxes & Duties
 Backorder
Order 50 or more for $222.99 AUD
Backorder now! Backorders for more than the stock quantity are expected before Jan 13, 2026

Base Category: Clutches - Slip Magnetic Particle

Top Level Category: Clutches - Slip Magnetic Particle - No Power Integral Shaft

Product Details

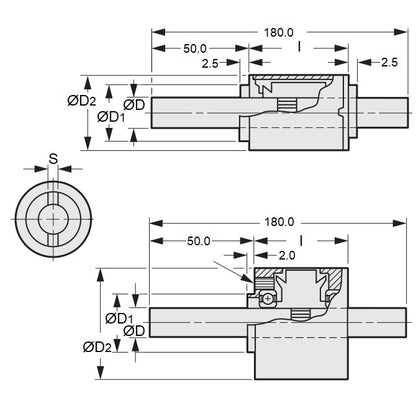

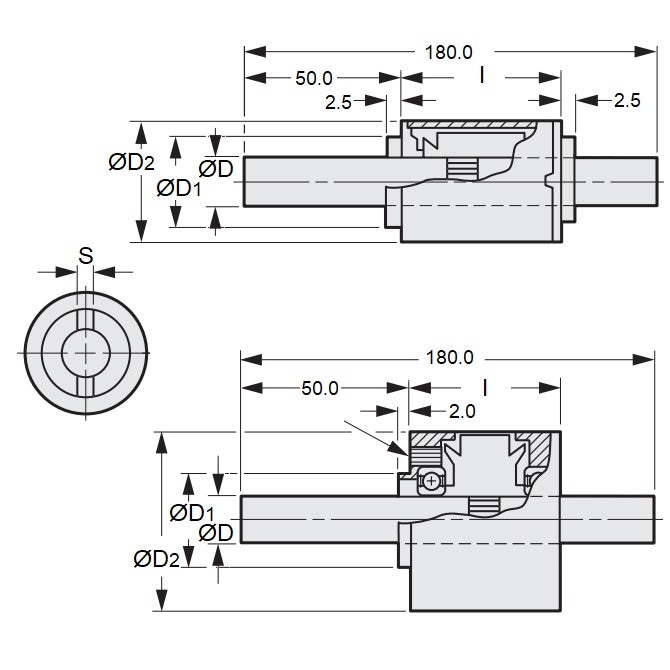

Optimum Torque Range: 714 to 1010g.cm
  • Shaft Diameter (D): 8.000mm
    (8.000mm is 0.315 in.)
  • Overall Length (L): 180.0mm
    (180.0mm is 7.087 in.)
  • Static Torque: 1020g.cm
  • Hub Diameter (D1): 15.0mm
  • Max. Speed: 200RPM
  • Body Diameter: 20.0mm
  • Shell (Material): Steel
  • End Caps (Material): Plastic

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • S90BPLMP08181039

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
