W0700-T-090-060-W3-C (Each)

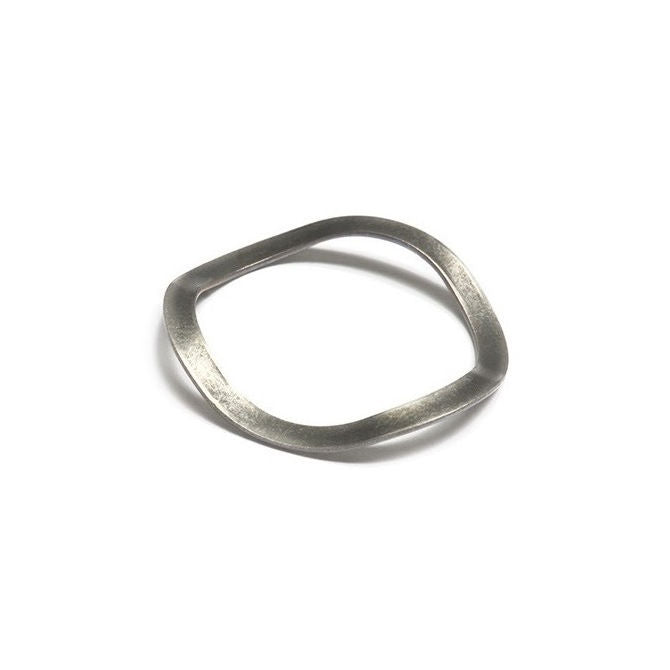

Spring Washers - 70x90x6 mm Wave - Carbon Spring Steel Self Finish Washer
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleAssortment Kits
Screws
Couldn't load pickup availability
2-3/4 inch Washer - 70x90x6 mm Spring Washers - Carbon Spring Steel Self Finish - Sold per Each:
Base Category: Washers - Spring
Top Level Category: Washers - Spring - Wave - Carbon Steel
Product Details

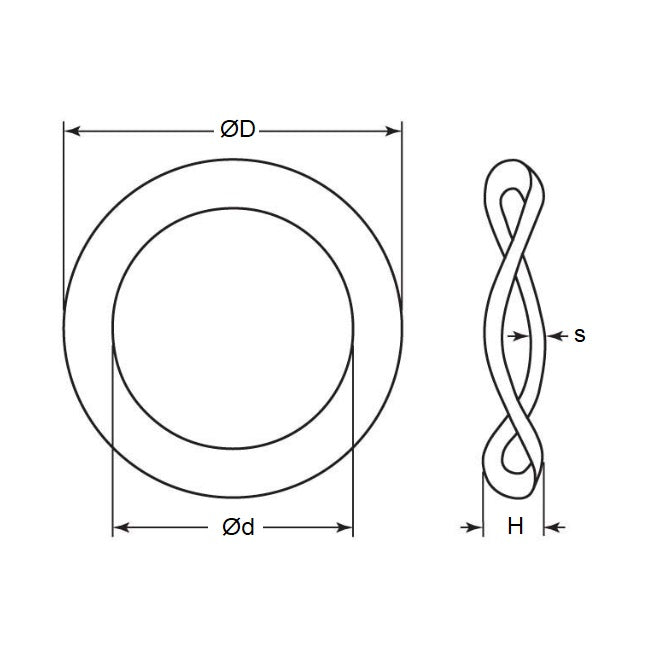

Nominal Inside Diameter (d): 70.00mm+ 1.7 / + 2.0
(70.00mm is 2.756 in.)
Carbon Spring Steel Self Finish
- Nominal Inside Diameter (d): 70.00mm
+ 1.7 / + 2.0
(70.00mm is 2.756 in.)
- Nominal Outside Diameter (D): 90.00mm
- 1.7 / - 2.0
(90.00mm is 3.543 in.)
- Nom. Height (H): 6.00mm
(6.00mm is 0.236 in.)
- Thickness (s): 0.60mm
- Info: Suits OD of 6011, 6210, 6308, and 6406 Bearings (Equiv EPL061)
- Type: 3 Wave
- Nominal Screw Size: M70
- Spring Rate: 27N/mm
- Load at Height: 12.3 N at 1.5 mmRef.
Brand: MBA
Country of Origin: GB
Product Compliance and Data
Similar to
- ExaktKey® EPL061
- NoCor® EPL061
- Springmaster EPL061
- XOSpring® EPL061
- EPL61
- W0700T090065W3C
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
W0700T090060W3C, W0700T090
