P205 (Each)

Name: P205 - Cast Iron Pillow Block Housings - 70x140x45 mm - Cast Iron Housing
Brand: MBA
SKU: P205
Price: 26.32 AUD
Availability: BackOrder

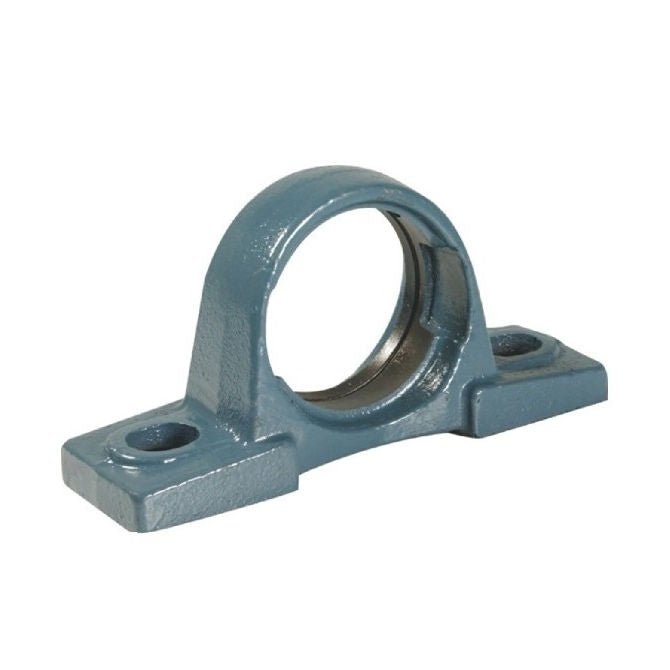

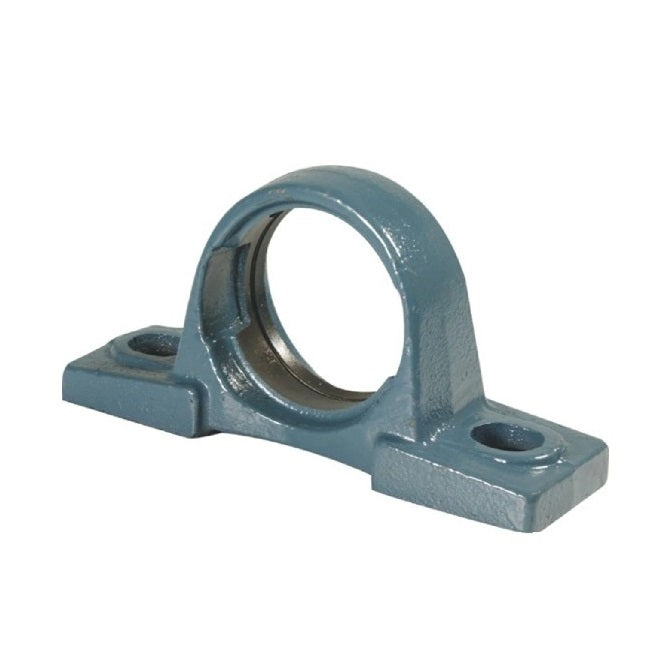

Cast Iron Pillow Block Housings - 70x140x45 mm - Cast Iron Housing

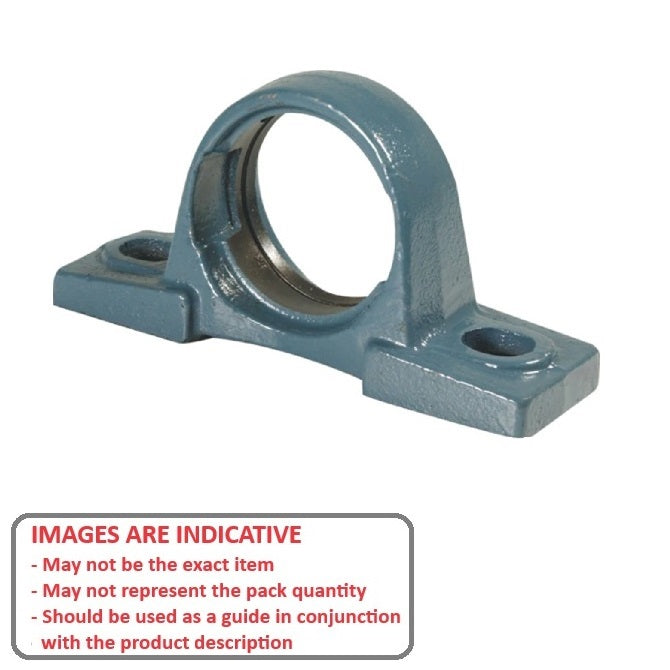

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale

Category: Housings - Cast Iron Pillow Block

Price:

$26.32 AUD

Each

Excludes GST and overseas Taxes & Duties

Backorder
Order 50 or more for $23.69 AUD

Backorder now! Backorders are expected before Feb 07, 2026

Quantity

Base Category: Housings - Cast Iron Pillow Block

Top Level Category: Housings - Cast Iron Pillow Block

Product Details

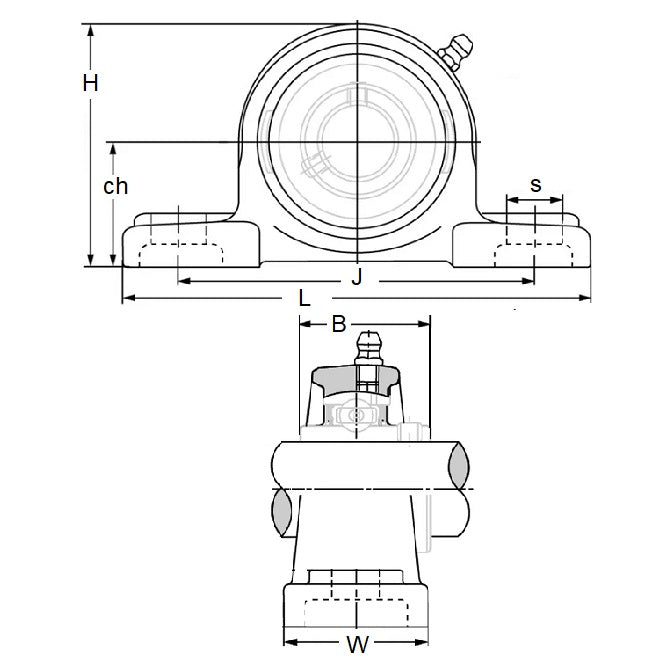

Height (H): 70.000mm
_{(70.000mm is 2.756 in.)}

Cast Iron

Height (H): 70.000mm
_{(70.000mm is 2.756 in.)}
Length (L): 140.000mm
_{(140.000mm is 5.512 in.)}
Base Width (W): 45.000mm
_{(45.000mm is 1.772 in.)}
Bolt Hole Centres (J): 105.000mm
Centre Height (cH): 36.500mm
Bearing Width (B): 34.000mm
To Suit Bearing: UC205
Bolt Hole Size (s): 13 x 19mm

Brand: MBA
Country of Origin: JP

Product Compliance and Data

Similar to

Nachi P205J

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
