WRI-0070-RD (Each)

Name: Internal Retaining Rings - 7x0.8x7.8 mm Round Wire - Carbon Spring Steel Wire Clip - WRI-0070-RD
Brand: MBA
SKU: WRI0070RD
Price: 5.14 AUD
Availability: BackOrder

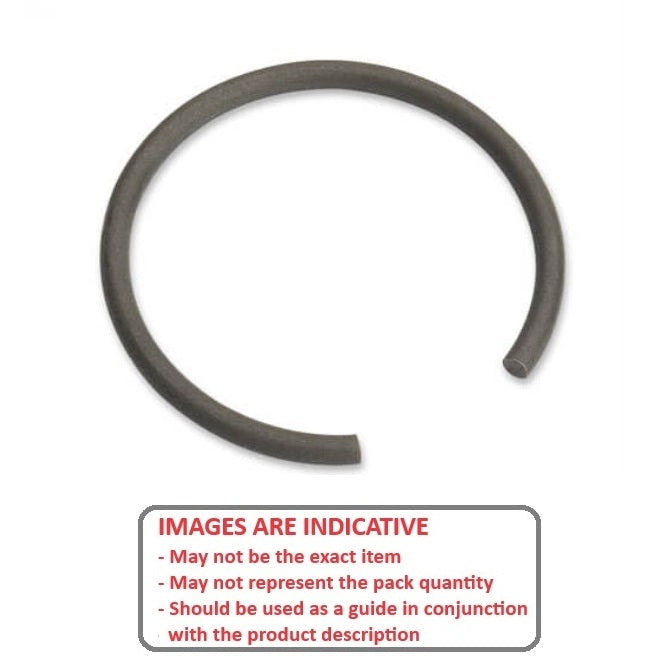

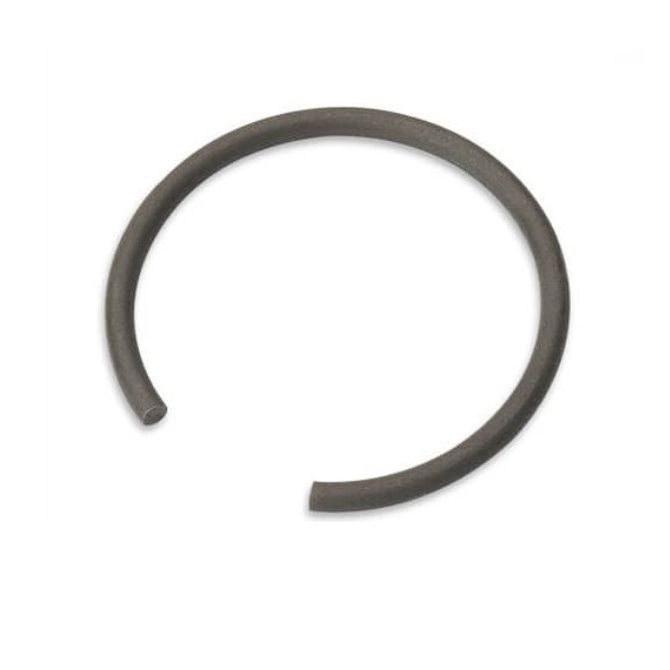

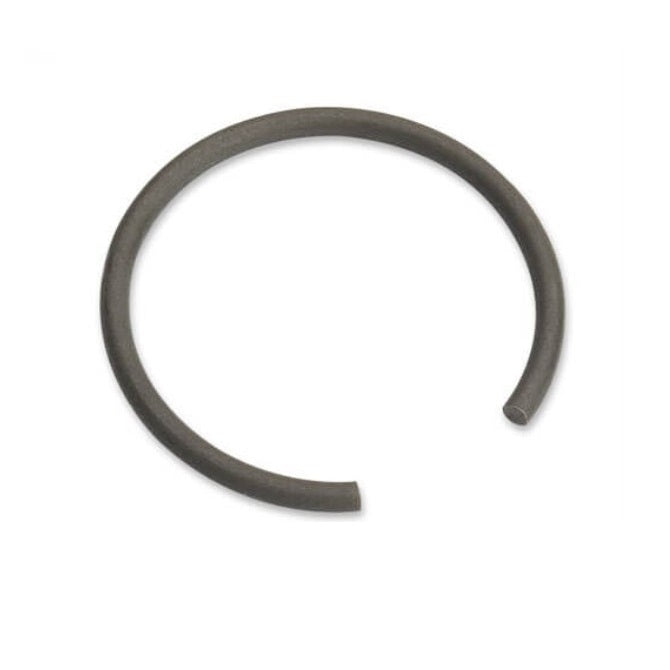

Internal Retaining Rings - 7x0.8x7.8 mm Round Wire - Carbon Spring Steel Wire Clip

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale

Category: Retaining Rings - Internal - Round Wire

Additional resources:
Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue

Price:

$5.14 AUD

~~$8.77 AUD~~ $5.14 AUD

Each

Excludes GST and overseas Taxes & Duties

Backorder
Order 50 or more for $4.63 AUD

Product Details

Additional stock available from USA subject to Prior Sale = 581

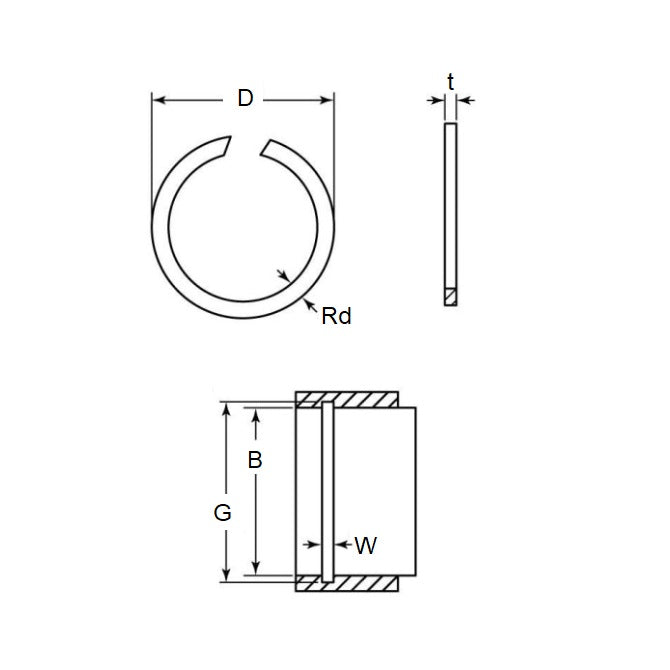

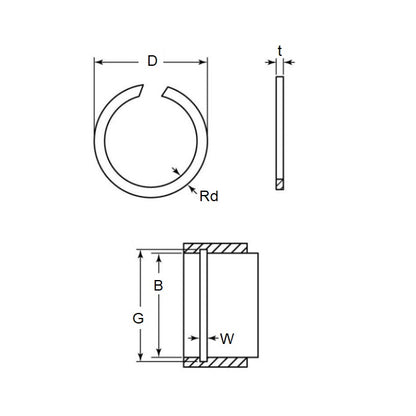

Housing Bore (B): 7.00mm
_{(7.00mm is 0.276 in.)}

Carbon Spring Steel

Housing Bore (B): 7.00mm
_{(7.00mm is 0.276 in.)}
Clip Thickness (T): 0.8mm
_{B DIN 2076}
_{(0.8mm is 0.031 in.)}
Groove Dia. (Dg): 7.80mm
_{+ 0.3 / - 0.0}
_{(7.80mm is 0.307 in.)}
Approx. Loose Circlip OD (Dr): 7.90mm
_{+ 0.00 / - 0.05}
Groove Width (W): 1.00
Free Inside Diameter (D): 6.3
Info: DIN7993
Section Profile: Round Section
Groove Radius (r): 0.50mm
Gap (g): 4.000mm

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

NoCor DRB-007
AMC RB-007
Seeger RB-007
DRB007

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
