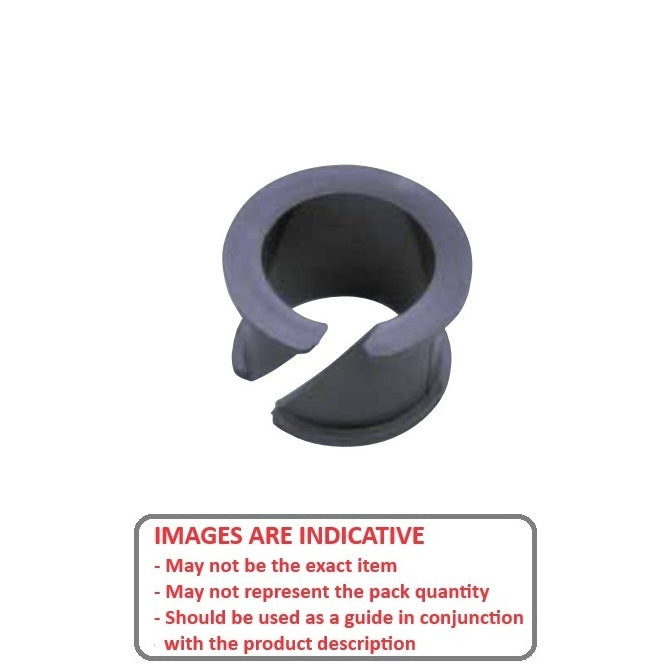

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 3

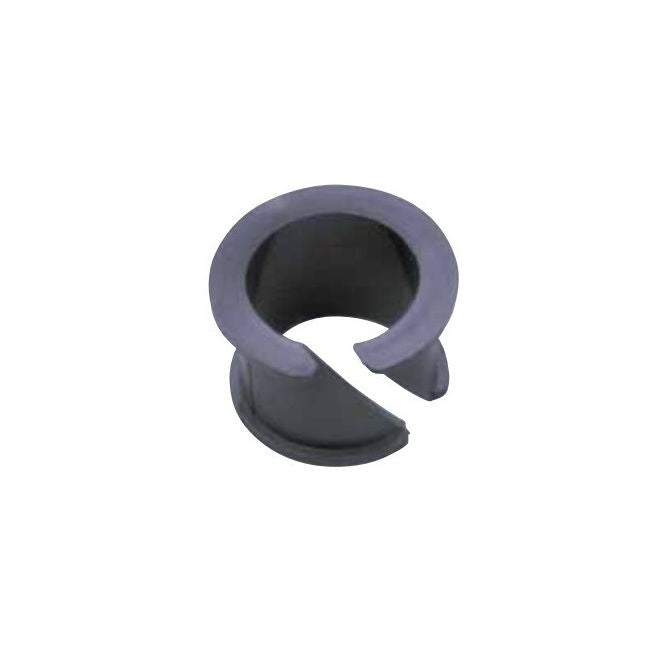

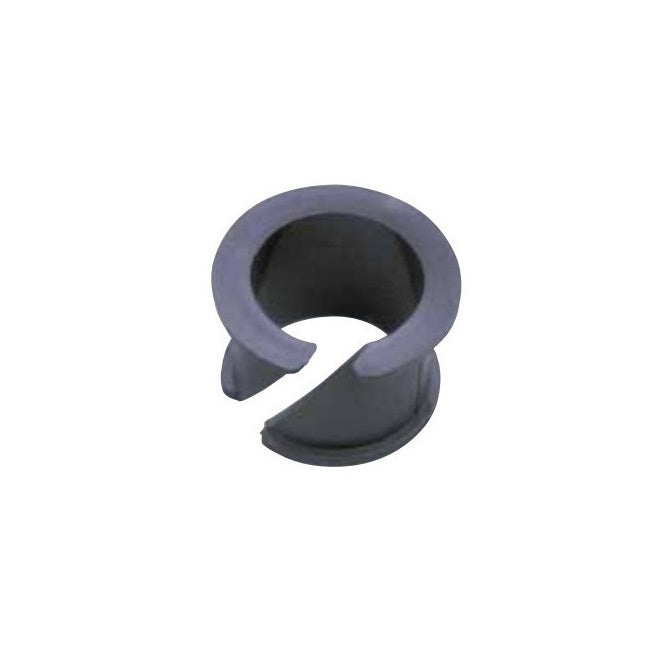

Clip Bushes - 6 mm x 7.2 mm x 4.2 mm
BF0060-0072-0042-PC2

Name: 1067146 | BF0060-0072-0042-PC2 --- Clip Bushes - 6 mm x 7.2 mm x 4.2 mm
Brand: MBA
SKU: BF006000720042PC2
Price: 10.32 AUD
Availability: InStock

MBA

Category: Bushes - Clip - Double Flanged

Additional resources:
Bushes PDF Catalogue

Price:

$10.32 AUD

Each
Out Of Stock
Order 50 or more for $9.29 AUD Each

Pre-Order now! Backorders for more than the stock quantity are expected before Feb 17, 2025

Quantity

Base Category: Bushes - Clip

Top Level Category: Bushes - Clip - Double Flanged

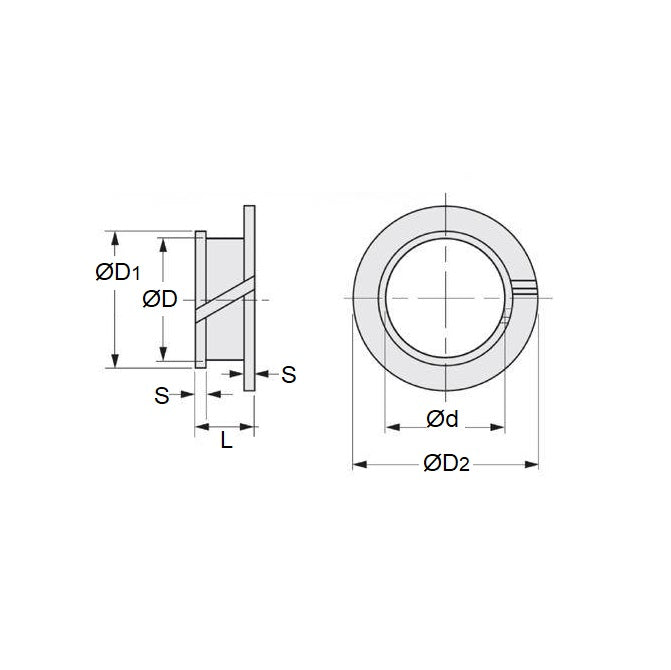

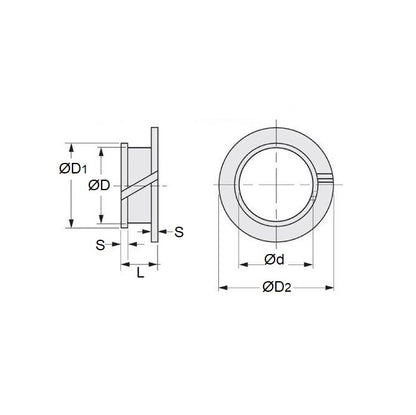

Product Details:

Nom. ID (d): 6.000mm
Plastic

Nom. OD (D): 7.200mm
Overall Length: 4.200mm
Large Flange Dia: 11.000mm
Flange Width (S): 0.6mm
Small Flange Dia: 7.800mm
Min Housing Bore: 5.800mm
Max Housing Bore: 7.200mm
Min Shaft Size: 5.975mm
Max Shaft Size: 6.000mm
Sheet Metal Thickness: 2.45 to 2.92

Brand: MBA
Country of Origin: DE

Alternatives: 7817K58, S99GMCM06078

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
