LYP-R2-060-059-MZ (Each)

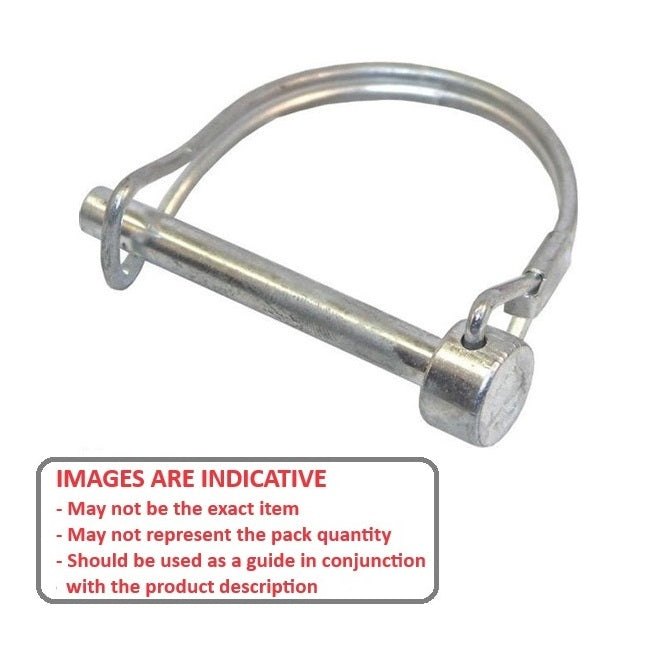

Wire Lock Lynch Pins - 6x58.65x2.1 mm Double Wire - Steel - Mild Zinc Plated Pin
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Master Pins Catalogue PDF
Order 50 or more
for $2.91 AUD Each
Couldn't load pickup availability
6x58.65x2.1 mm Wire Lock Lynch Pins - Steel - Mild Zinc Plated - Sold per Each:
Base Category: Pins - Wire Lock Lynch
Top Level Category: Pins - Wire Lock Lynch - Double Wire - Round - Mild Steel
Product Details

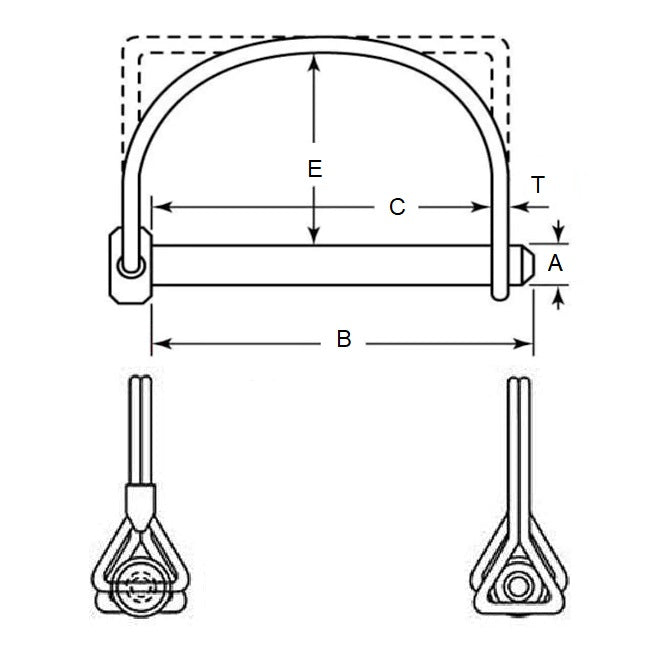

Pin Diameter (A): 6.00mm- 0.051 / - 0.178
(6.00mm is 0.236 in.)
Steel - Mild Zinc Plated
- Pin Diameter (A): 6.00mm
- 0.051 / - 0.178
(6.00mm is 0.236 in.)
- Grip Length (C): 58.65mm
+ 0.00 / - 6.35
(58.65mm is 2.309 in.)
- Wire Thickness (T): 2.1mm
(2.1mm is 0.083 in.)
-
+/- 3.18
- Clearance To Wire (E): 37.0mm
- Pin Length (B): 65.0mm
- Finish: Zinc Plated
Brand: MBA
Country of Origin: TW
Product Compliance and Data
Similar to
- Hitech SLYP6
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
LYPR2060059MZ, LYPR2060
