NSO-0060-0100-0090-ST (Each)

Needle Roller without Inner Ring Bearings - 6x10x9 mm / 305 Kgf Shell Type - Chrome Steel Bearing

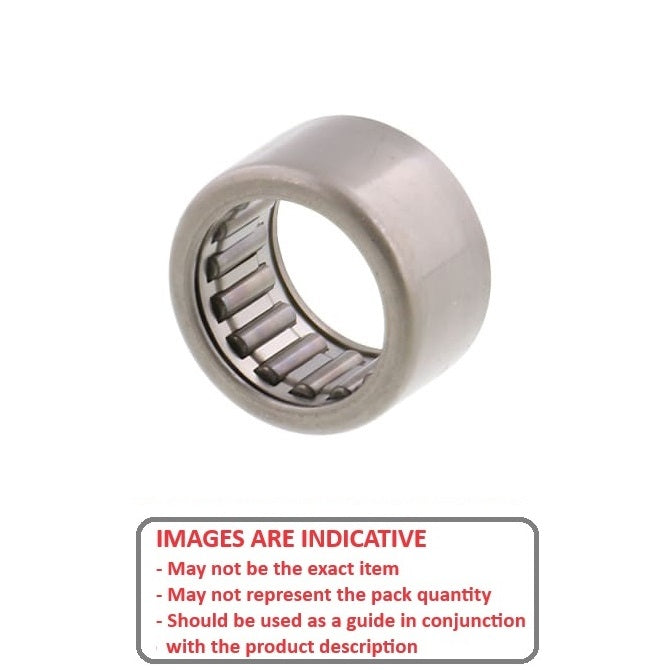

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Needle Roller without Inner Ring Bearings - 6x10x9 mm / 305 mm - Chrome Steel Shell
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Shafting
Price:
$16.32 AUD
$16.32 AUD
Each
Excludes GST and overseas Taxes & Duties
 Backorder

Order 50 or more
for $14.69 AUD Each
Backorder now! Backorders are expected before Apr 26, 2026

Base Category: Bearings - Needle Roller without Inner Ring

Top Level Category: Bearings - Needle Roller without Inner Ring - Shell Type - Open Ends

Product Details

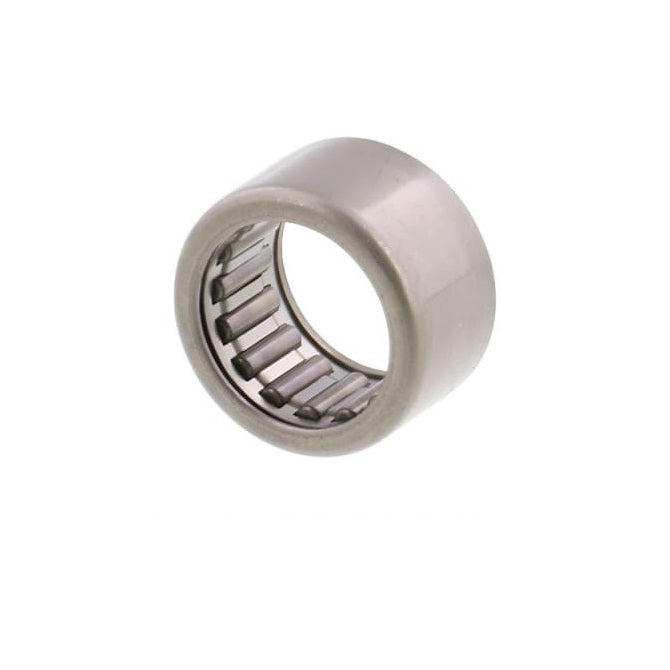

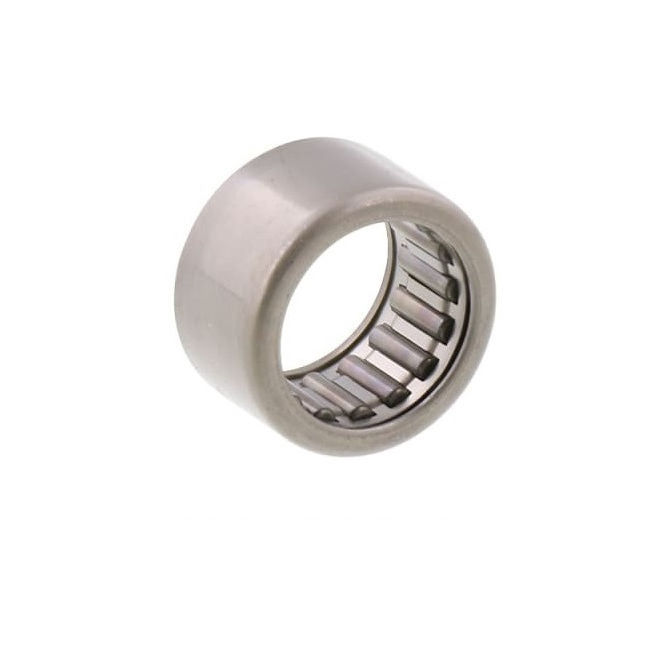

Open shell type needle roller bearing

Shaft Diameter (d): 6.000mm
(6.000mm is 0.236 in.)

Chrome Steel
  • Shaft Diameter (d): 6.000mm
    (6.000mm is 0.236 in.)
  • O.D. (D): 10.000mm
    (10.000mm is 0.394 in.)
  • Width (B): 9.000mm
    (9.000mm is 0.354 in.)
  • Basic Dynamic Load Rating: 305Kgf
  • Basic Static Load Rating: 290Kgf
  • Limiting Speed Grease: 20000RPM
  • Limiting Speed Oil: 34000RPM
  • Cage Type: Steel
  • Seals: None

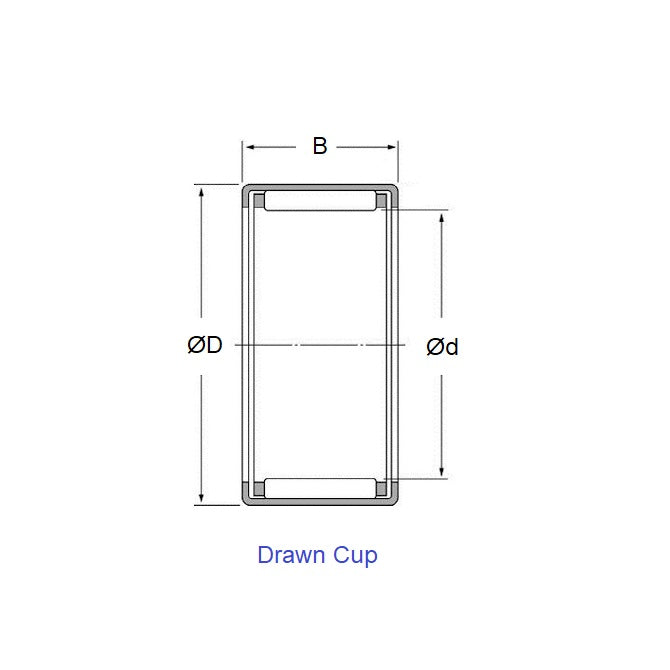

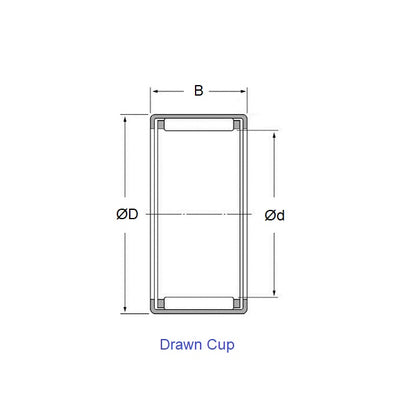

  • Type: Drawn Cup

Brand: MBA
Country of Origin: JP

Product Compliance and Data

Similar to

  • Torrington® FJX-69
  • FAG® HK0609
  • IKO TLA0609
  • IKO TLA609
  • Nachi® TLA-69
  • TLA69
  • FJX69

Used for

  • RC Helicopter Parts
  • Kalt® - Cyclone - Needle Roller Bearing
  • Kalt® - Cyclone II - Needle Roller Bearing
    We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
