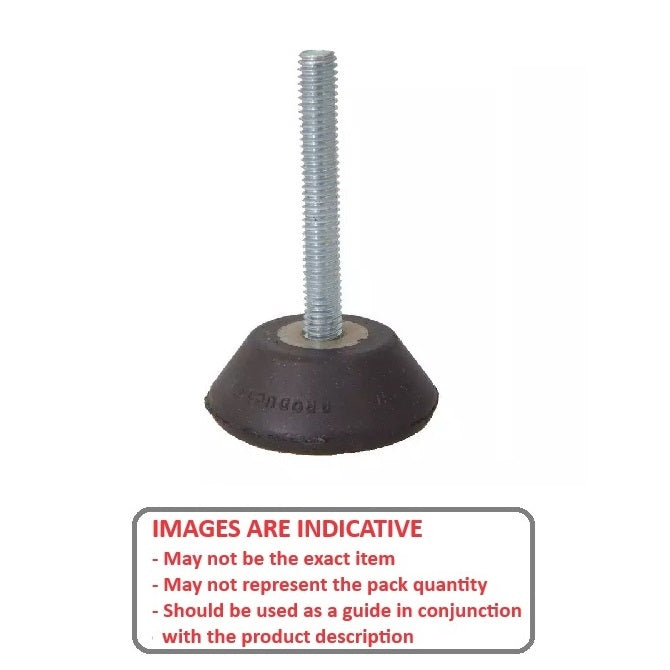

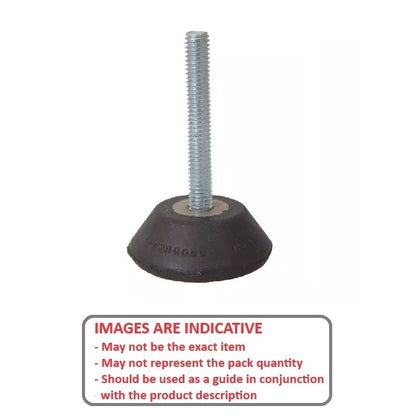

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

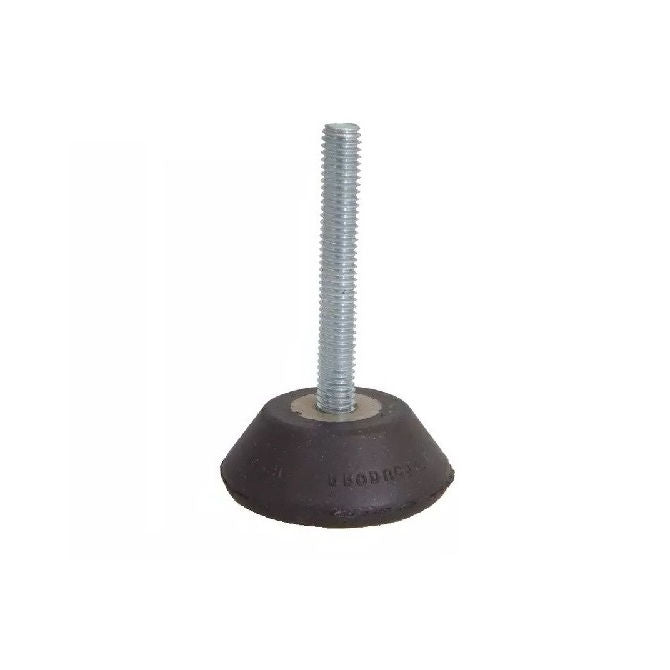

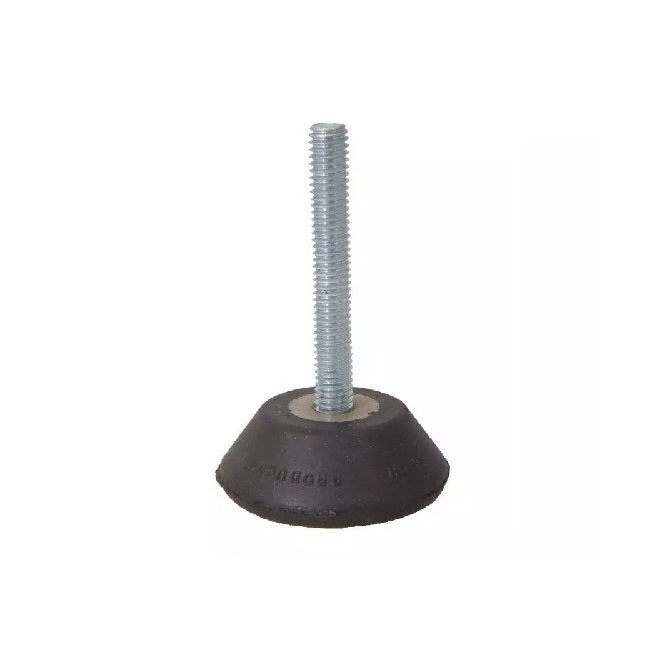

Levelling Bonded Neoprene Mounts - 67.0 to 272.0 x 1.27 mm x 5.08 mm
TMF-609-ARS

MBA

Price:
$42.50 AUD
$42.50 AUD
Each
Out Of Stock
Order 50 or more for $38.25 AUD Each
Pre-Order now! Backorders for more than the stock quantity are expected before Feb 01, 2025

Base Category: Mounts - Levelling Bonded Neoprene

Top Level Category: Mounts - Levelling Bonded Neoprene - With Stud

Product Details:

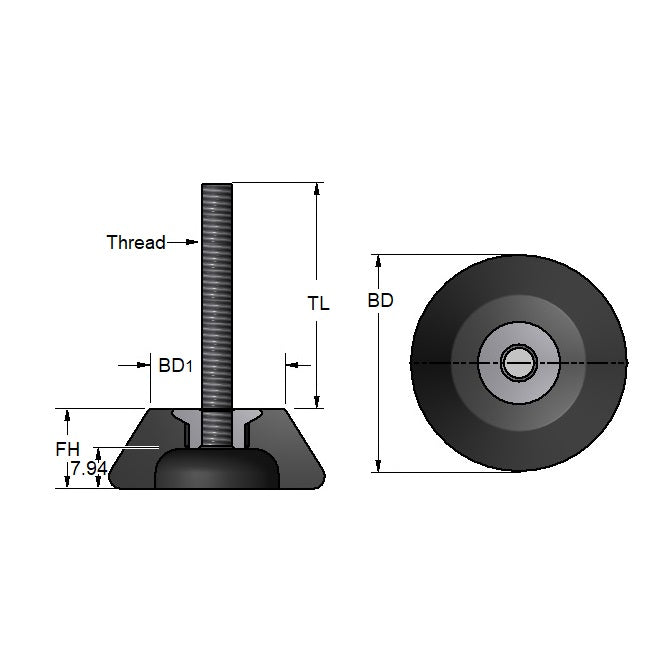

Load: 67.0 to 272.0Kg
  • Min Load Deflection: 1.270mm
  • Max Load Deflection: 5.080mm
  • Thread: 1/2-13
  • Thread Length: 63.5mm
  • Base Diameter: 55.6mm
  • Foot Height: 20.6mm
  • Top Diameter: 34.9mm

Brand: MBA
Country of Origin: US
