W0650-FP-085-0050-CL (10 Pcs)

Flat Washers - 65x85x0.5 mm Precision Shim - Carbon Spring Steel Self Finish Washer

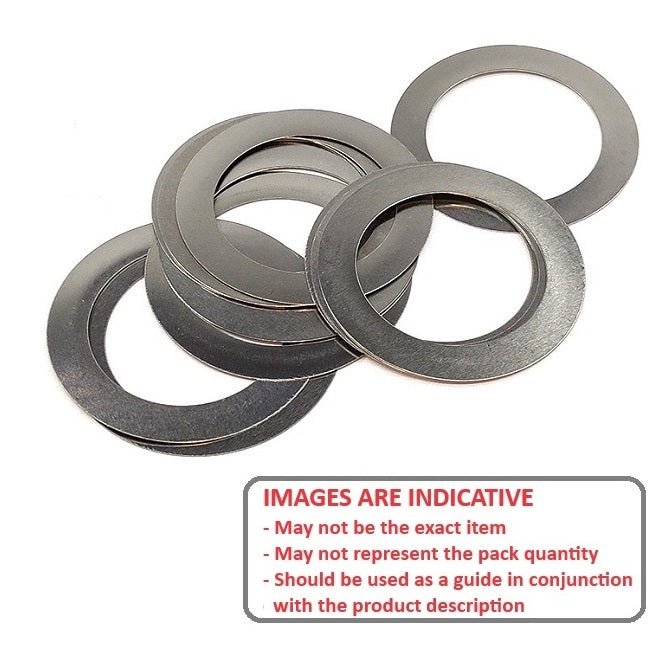

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Flat Washers - 65x85x0.5 mm - Carbon Spring Steel Self Finish
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Precision Shim Washer PDF Catalogue
Washers and Spacers PDF Catalogue
Screws
Price:
$17.23 AUD
$17.23 AUD
per 10
Qty: 14 packs (140 pcs) available now
Order 50 or more packs (500 pcs) for $15.51 AUD per 10
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Sep 21, 2025

Base Category: Washers - Flat

Top Level Category: Washers - Flat - Precision Shim - Carbon Spring Steel

Product Details


Additional stock available from USA subject to Prior Sale = 1181

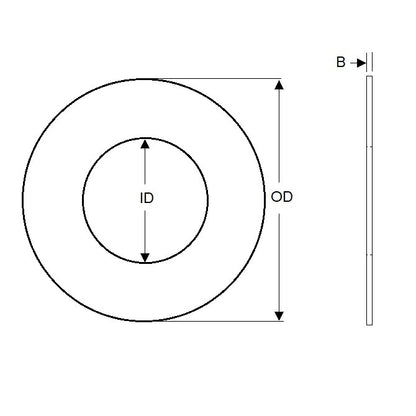

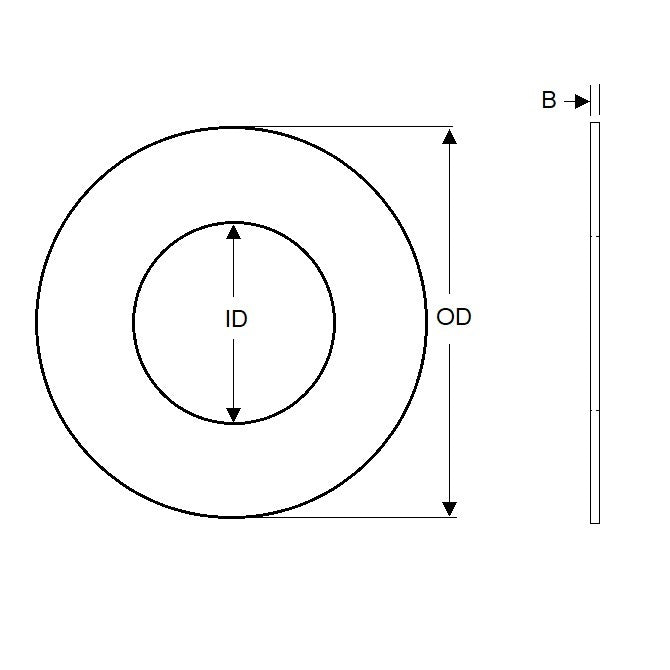

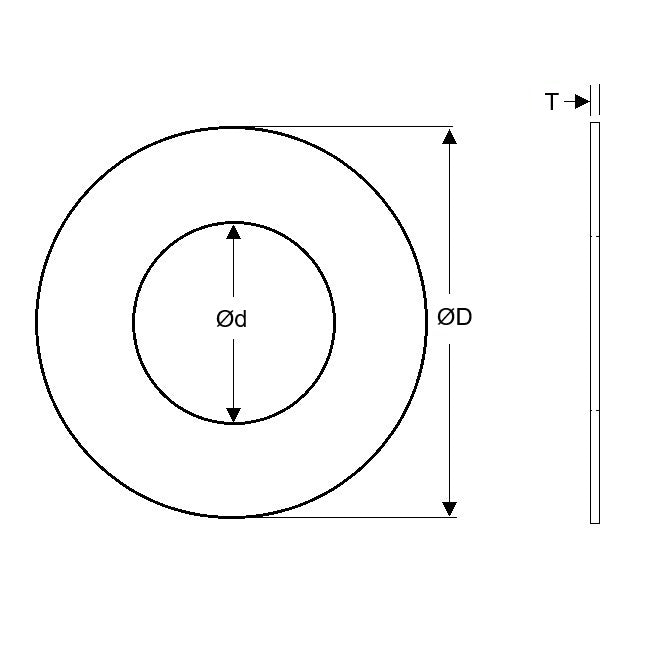

Nominal Inside Diameter (d): 65.000mm
+ 0.100 / + 0.400
(65.000mm is 2.559 in.)

Carbon Spring Steel Self Finish
  • Nominal Outside Diameter (D): 85.000mm
    - 0.120 / - 0.470
    (85.000mm is 3.346 in.)
  • Thickness (T): 0.500mm
    + 0.000 / - 0.050
    (0.500mm is 0.02 in.)
  • Other: Rockwell B 80 Min
  • Grade: Precision
  • Min. Actual ID (Ref): 65.1mm

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • ExaktKey S78820
  • NoCor S78820
  • Springmaster S78820
  • XOSpring S78820
  • P65x85x0.5
  • W0650FP085005CL
  • CPS65X85X0.5

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
