MBN2-0646-42-1270 (PK-25)

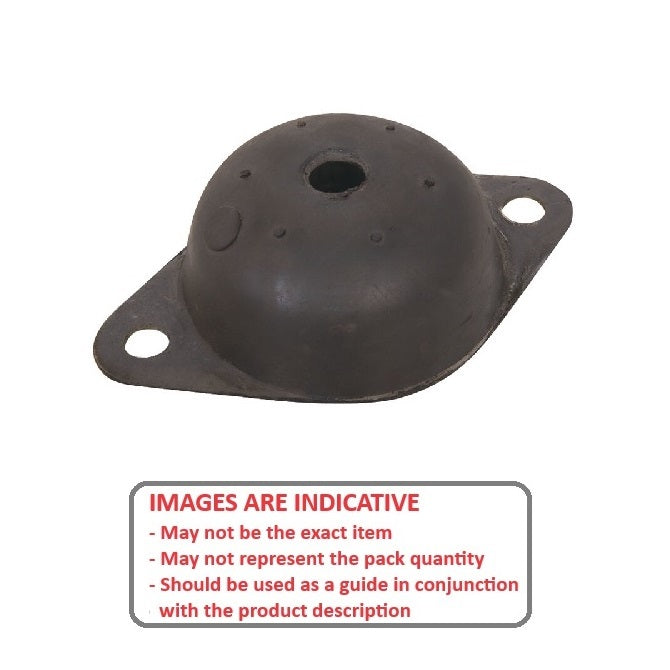

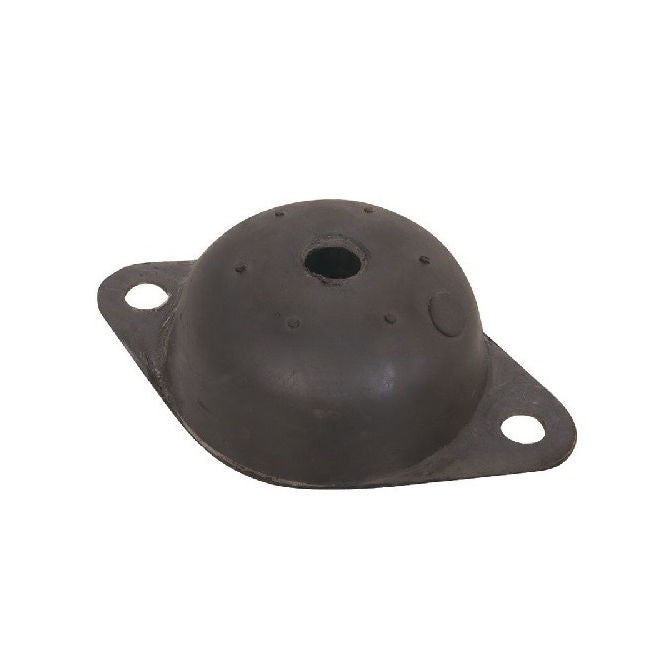

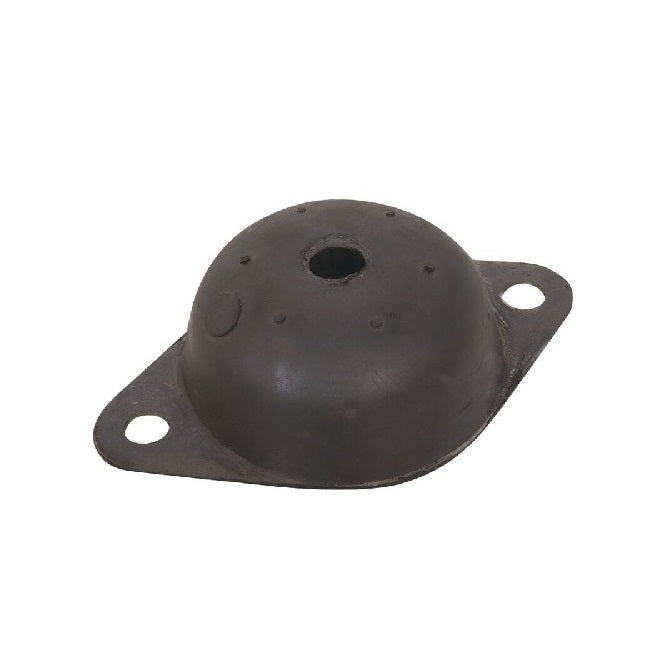

Base Neoprene Style 2 Mounts - 646.4 kg - lbs - D 136.525 mm - Neoprene Rubber Mount
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleCylindrical Bobbin Mounts PDF Quick Guide
Order 50 or more packs of 25 (1250 pcs)
for $2,012.03 AUD per 25 pack
646.4 kg (lbs) D 136.525 mm Base Neoprene Style 2 Mounts - Neoprene Rubber - Sold per pack of 25:
Base Category: Mounts - Base Neoprene Style 2
Top Level Category: Mounts - Base Neoprene Style 2
Product Details
Rated Load: 646.400kg (lbs)Neoprene Rubber
- Rated Load: 646.400kg (lbs)

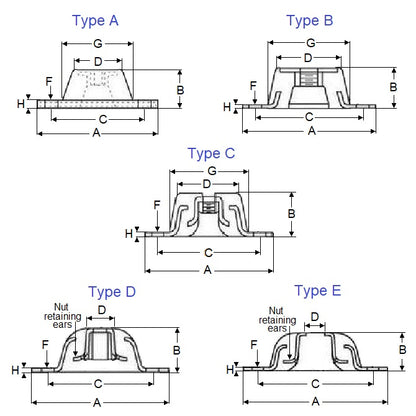

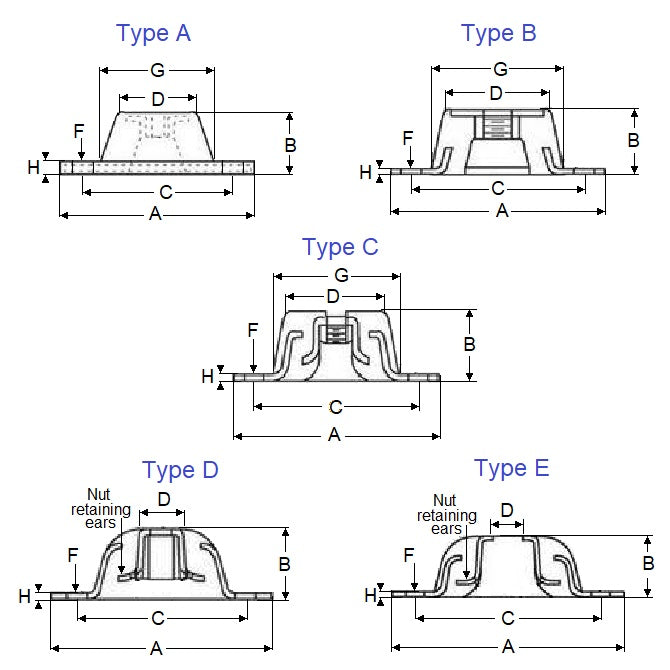

- Style: D
- Length (A): 136.525mm
(136.525mm is 5.375 in.)
- Height (B): 42.069mm
- Bolt Centres (C): 136.525mm
- D: 12.70mm
- F: 13.49mm
- H: 3.18mm
- Thread: 12.7mm Hole (No Thread)
- Durometer: 70
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Reid Tool® KR-61-4
- KR614
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
MBN20646421270, MBN2064642
