CCI-06000-C (PK-2)

Name: Internal Retaining Rings - 60x2x63 mm Circlips - Carbon Steel Circlip (Sold Per PK-2) - - CCI-06000-C
Brand: MBA
SKU: CCI06000C
Price: 2.41 AUD
Availability: InStock

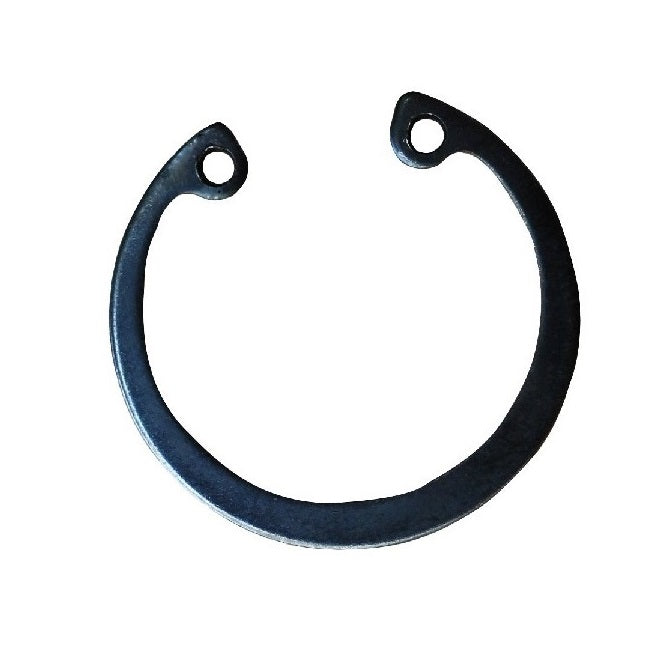

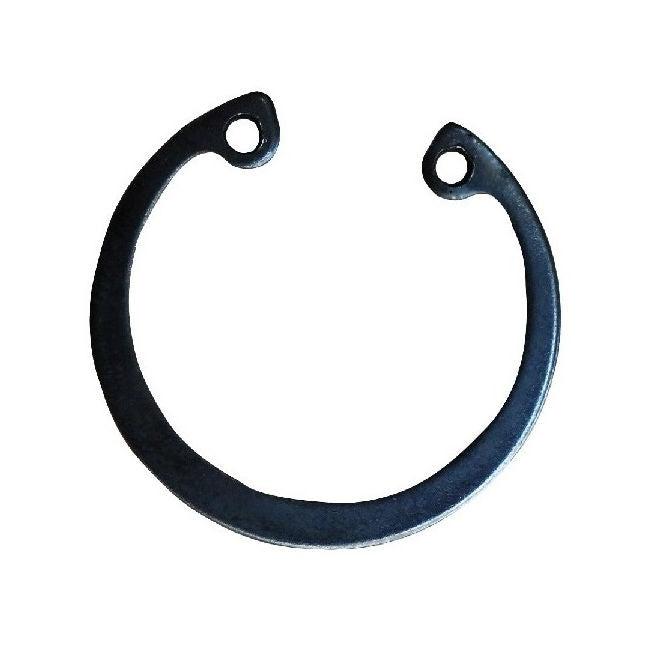

Internal Retaining Rings - 60x2x63 mm Circlips - Carbon Steel Circlip

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale

Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel

Additional resources:
Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits

Price:

$2.41 AUD

~~$4.47 AUD~~ $2.41 AUD

Priced, Stocked and Sold Per 2 Units

Excludes GST and overseas Taxes & Duties

Qty: 148 packs (296 pcs) available now

Order 50 or more packs (100 pcs)
for $2.17 AUD per 2

Product Details

Additional stock available from USA subject to Prior Sale = 261

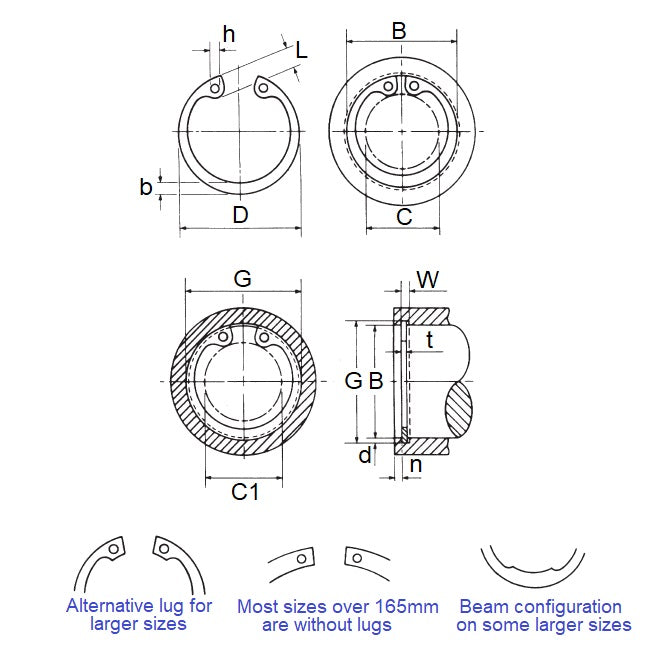

Housing Bore (B): 60.00mm
_{(60.00mm is 2.362 in.)}

Carbon Steel

Housing Bore (B): 60.00mm
_{(60.00mm is 2.362 in.)}
Clip Thickness (T): 2.00mm
_{+ 0.00 / - 0.07}
_{(2.00mm is 0.079 in.)}
Groove Dia. (Dg): 63.00mm
_{+ 0.30 / - 0.00}
_{(63.00mm is 2.48 in.)}
Approx. Loose Circlip OD (Dr): 64.20mm
_{+ 1.10 / - 0.46}
Groove Width (W): 2.15mm
_{+ 0.13 / - 0.00}
Clearance in Bore (C): 44.70mm
Clearance in Groove (C1): 48.40mm
Min. Lug Diameter (h): 2.50mm
Min. Extension (n): 4.50
Standard: DIN472

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

Ellison® 472-060
ALTPART
98455A146
Bossard® BN-822-060
Waldes® D1300-060
Huyett® DHO-060
NoCor® DHO-060
Rotor Clip® DHO-060
Seeger® J-060
Seeger® J60
Seeger® J60-S
Seeger® J60X2
Seeger® NZT.J60
BN822060
J60S
J060
D1300-0600
D1300060
D13000600
D1300-0600APP
DHO060
D13000600APP
472060

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
