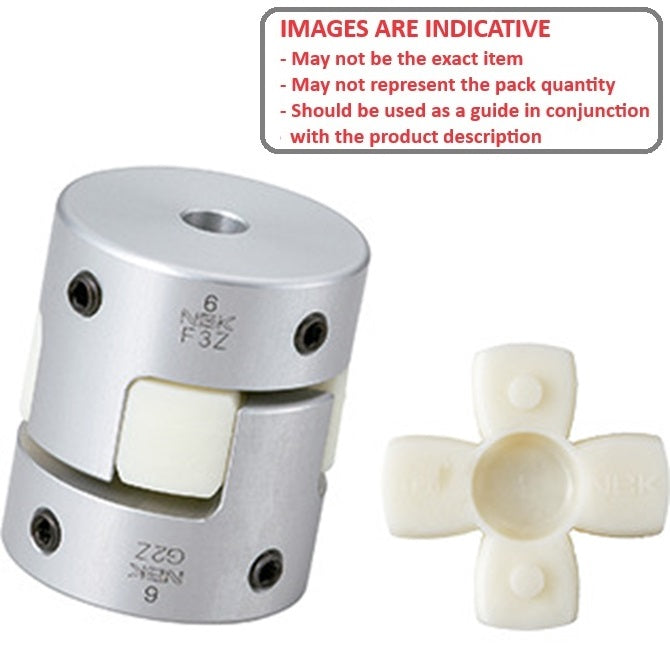

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

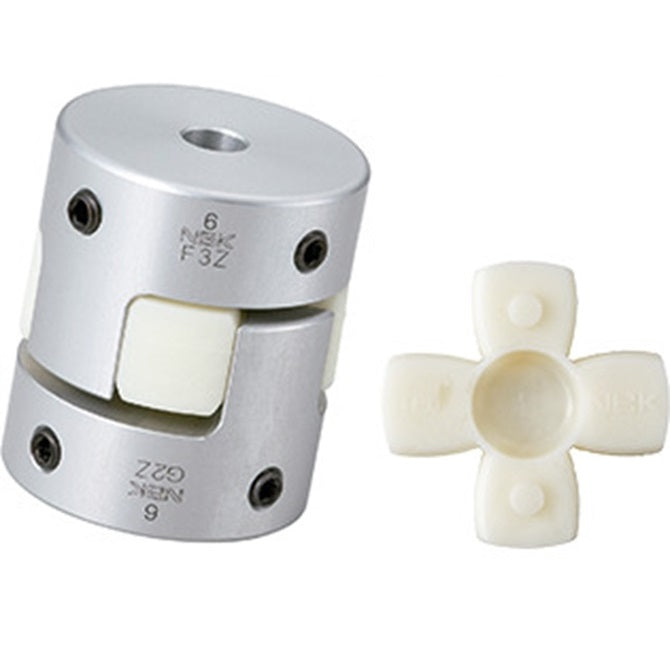

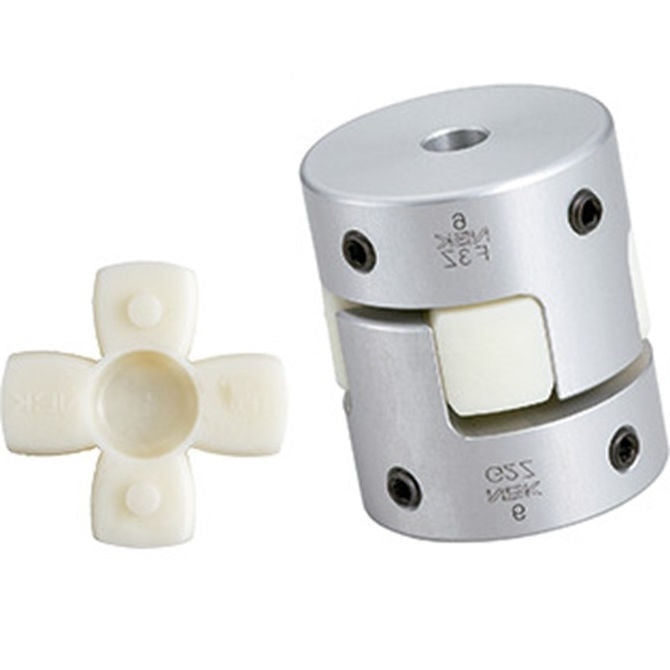

Spider Type C Complete Couplings - 6.35 mm x 9.525 mm x 20 mm
CP-064-095-20-030-J-PU92G

MBA

Price:
$104.14 AUD
$104.14 AUD
Each
Out Of Stock
Order 50 or more for $93.73 AUD Each
Pre-Order now! Backorders for more than the stock quantity are expected before Feb 01, 2025

Base Category: Couplings - Spider Type C Complete

Top Level Category: Couplings - Spider Type C Complete

Product Details:

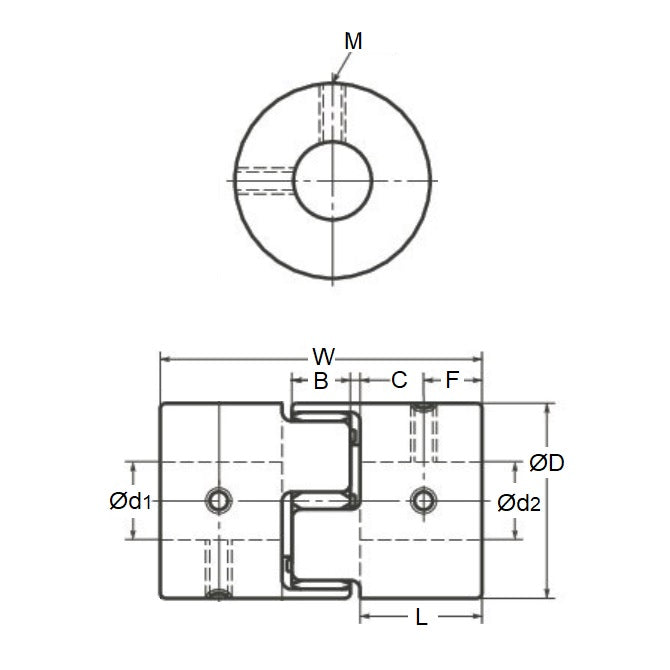

Bore (B): 6.35mm
Aluminium with 92 Duro White Spider
  • Bore (B): 9.525mm
  • OD (D): 20.0mm
  • Overall Assembled Length (L): 30mm
  • Description: Complete
  • Rated Torque: 5Nm
  • Max. Torque: 10Nm
  • Fixing Type: Set Screw
  • Spider Hardness: Aluminium with 92 Duro White Spider

Brand: MBA
Country of Origin: US

Alternatives: GU-31

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
