LYP-Q2-064-057-CZ (Each)

Name: Wire Lock Lynch Pins - 6.35x57.15x2.3 mm Double Wire - Carbon Steel Spring Wire Zinc Plated Pin - LYP-Q2-064-057-CZ
Brand: MBA
SKU: LYPQ2064057CZ
Price: 4.32 AUD
Availability: InStock

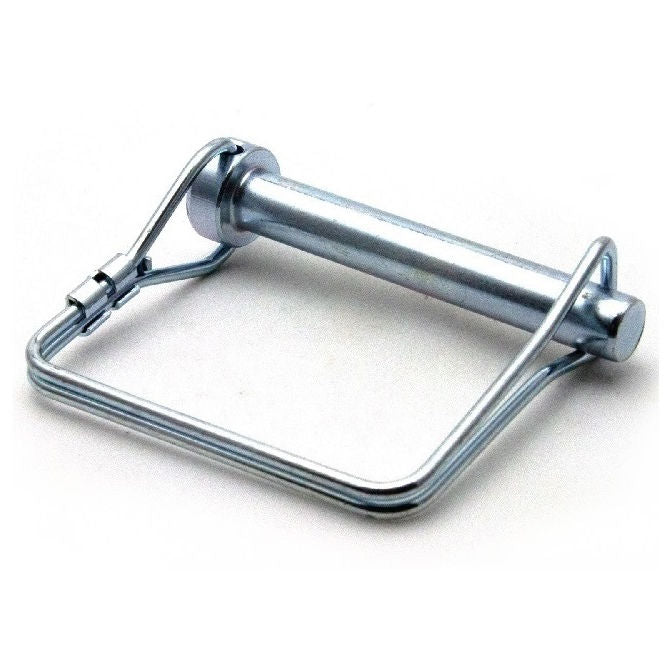

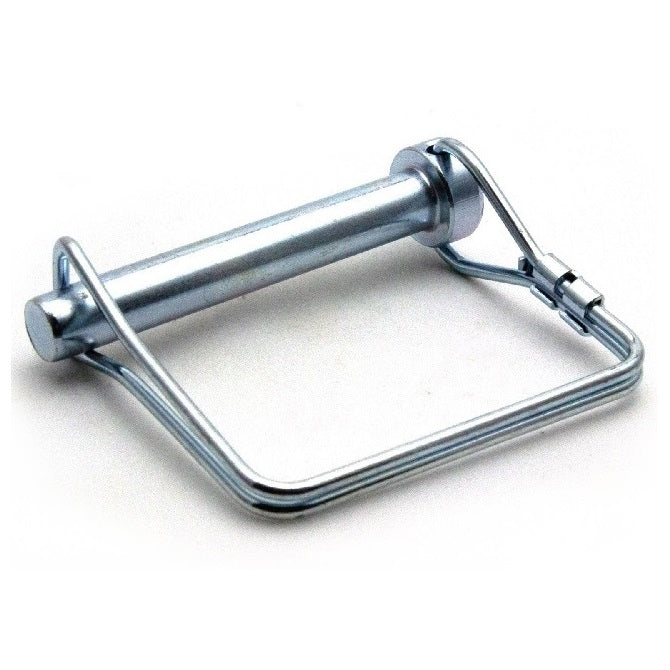

Wire Lock Lynch Pins - 6.35x57.15x2.3 mm Double Wire - Carbon Steel Spring Wire Zinc Plated Pin

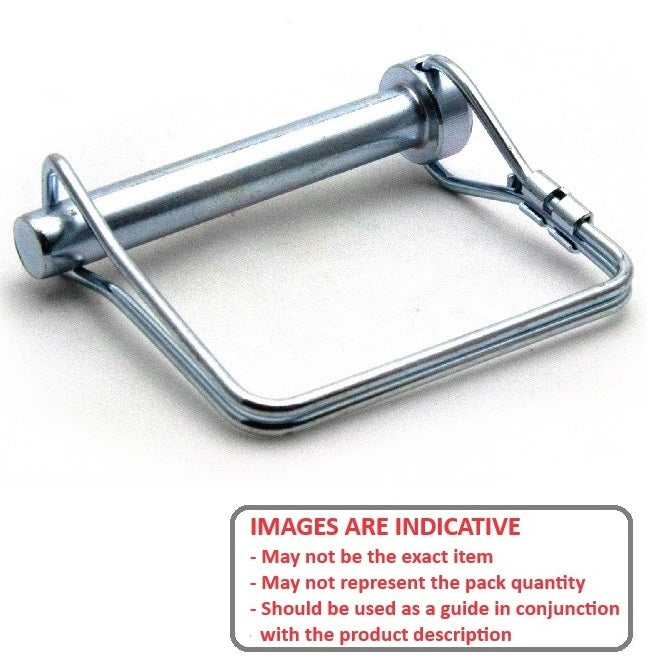

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale

Category: Pins - Wire Lock Lynch - Double Wire - Square - Carbon Steel

Additional resources:
Master Pins Catalogue PDF

Price:

$4.32 AUD

Each

Excludes GST and overseas Taxes & Duties

Qty: 66 available now

Order 50 or more
for $3.89 AUD Each

Product Details

Additional stock available from USA subject to Prior Sale = 30064

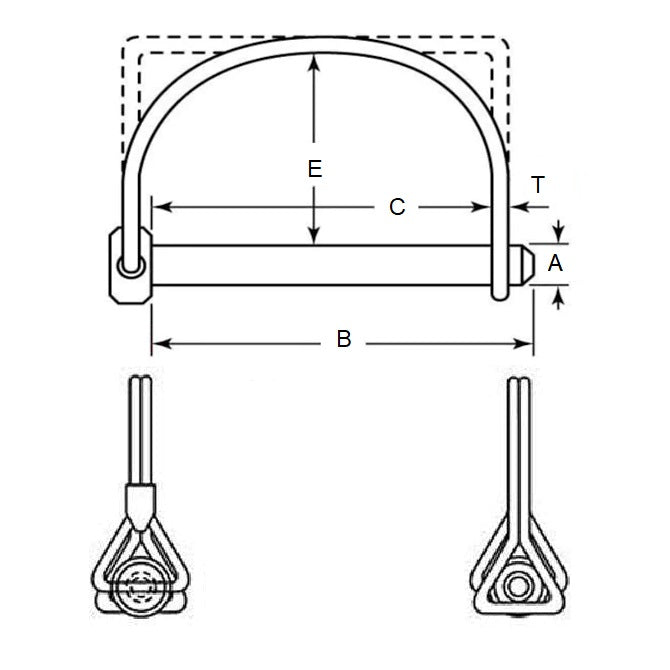

Pin Diameter (A): 6.35mm
_{- 0.051 / - 0.178}
_{(6.35mm is 0.25 in.)}

Carbon Steel Spring Wire Zinc Plated

Pin Diameter (A): 6.35mm
_{- 0.051 / - 0.178}
_{(6.35mm is 0.25 in.)}
Grip Length (C): 57.15mm
_{+ 0.00 / - 6.35}
_{(57.15mm is 2.25 in.)}
Wire Thickness (T): 2.3mm
_{(2.3mm is 0.091 in.)}
_{+/- 3.18}
Clearance To Wire (E): 41.3mm
Pin Length (B): 63.5mm
Weight Per Piece: 39g
Finish: Zinc Plated

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

Huyett® SNAP-250-2250S
NoCor® SNAP-250-2250S
SNAP2502250S

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
