ECL-0053-0064B-CZY (100 Pcs)

Name: ECL-0053-0064B-CZY (100 Pack) - E-Clips Retaining Rings - 6.35x5.33x0.64 mm Basic - Steel Zinc Plated Yellow E-Clip
Brand: MBA
SKU: ECL00530064BCZY
Price: 14.59 AUD
Availability: BackOrder

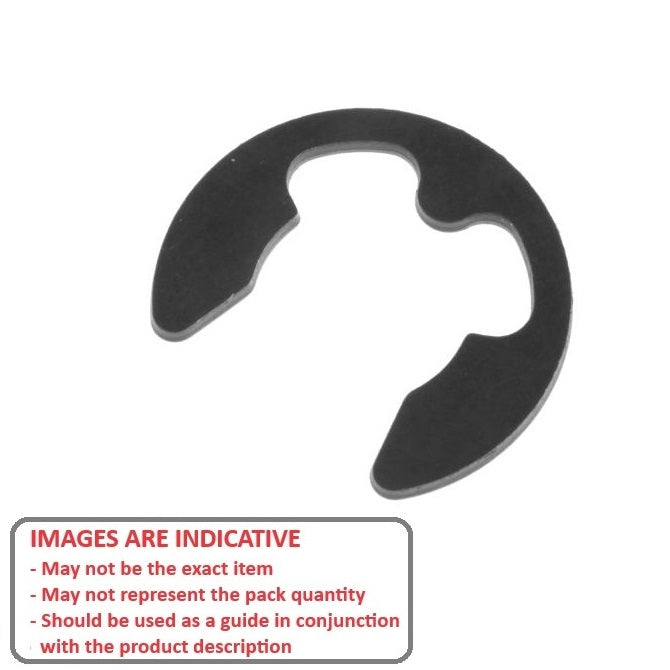

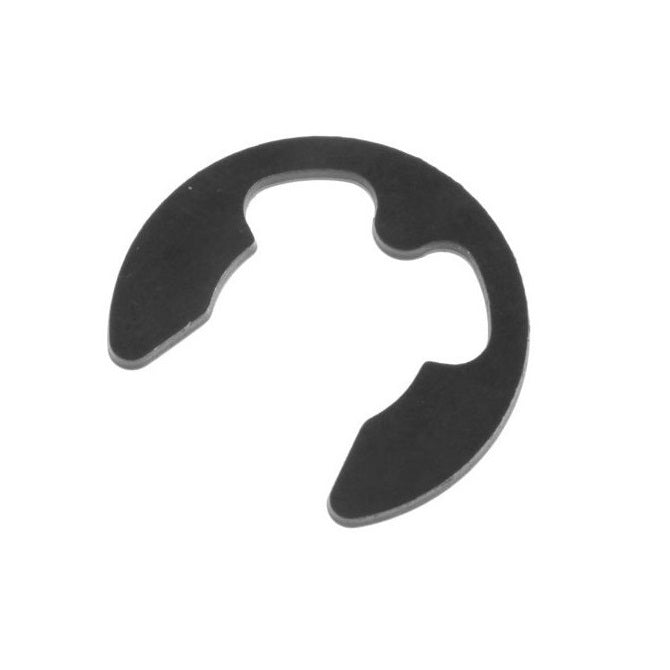

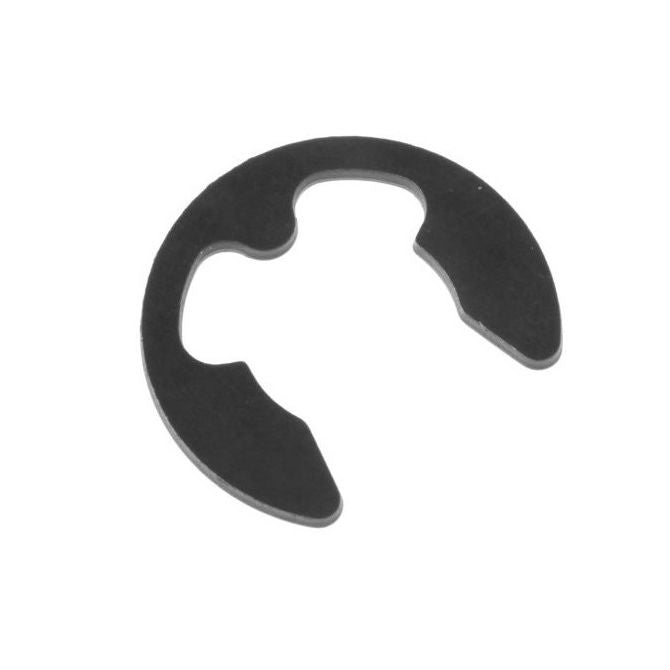

E-Clips Retaining Rings - 6.35x5.33x0.64 mm Basic - Steel Zinc Plated Yellow E-Clip

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale

Category: Retaining Rings - E-Clips - Basic - Carbon Steel

Additional resources:
Assortment Kits
E-Clip Applicators

Price:

$14.59 AUD

~~$34.00 AUD~~ $14.59 AUD

per 100
Backorder
Order 50 or more pack (5000 pcs) for $13.13 AUD per 100

Product Details

Additional stock available from USA subject to Prior Sale = 166

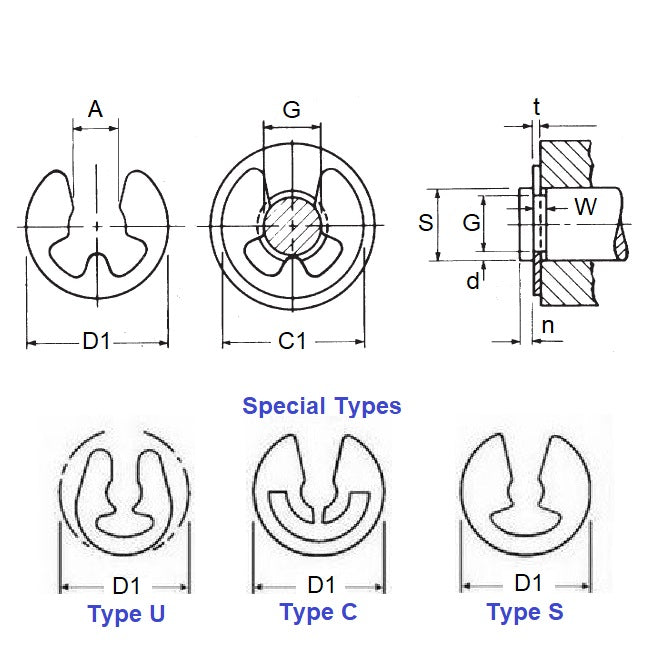

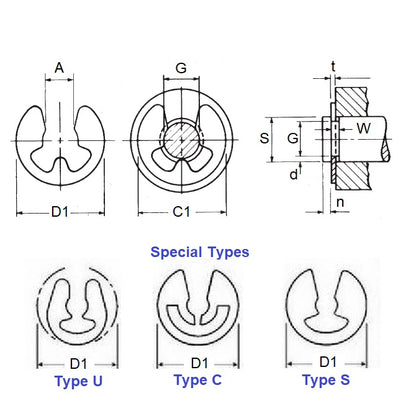

Minimum Rec. Shaft Dia (S): 6.35mm
_{+ 2.54 / - 0.00}
_{(6.35mm is 0.25 in.)}

Steel Zinc Plated Yellow

Groove Dia. (Dg): 5.33mm
_{+/- 0.051}
_{(5.33mm is 0.21 in.)}
Clip Thickness (T): 0.64mm
_{+/ - 0.052}
_{(0.64mm is 0.025 in.)}
Clip OD Loose (D1): 13.11mm
Groove Width (W): 0.74mm
Maximum Rec. Shaft Dia (S): 8.89
Clip OD in groove (C1): 13.46mm
Additional Info: RRA-160 Applicator

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

IRR 1200-025-ZD
Military 3215-025-ZD
Waldes 5144-025-ZD
5144025ZD
1200025ZD
3215025ZD
N1540025ZD
N1540-025-ZD

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
