CLP-064-0171-P (Each)

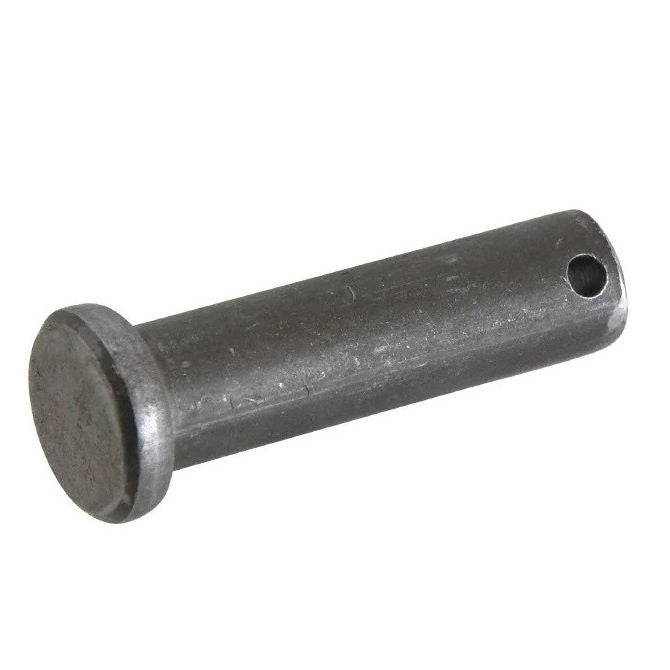

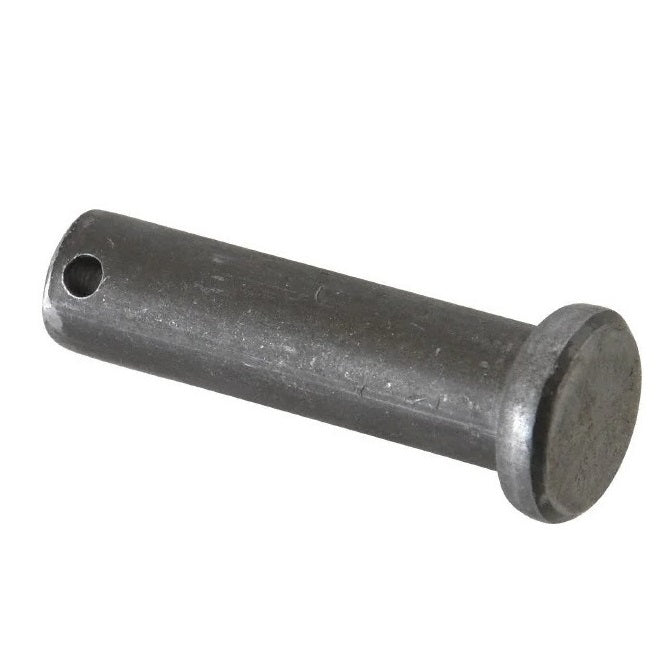

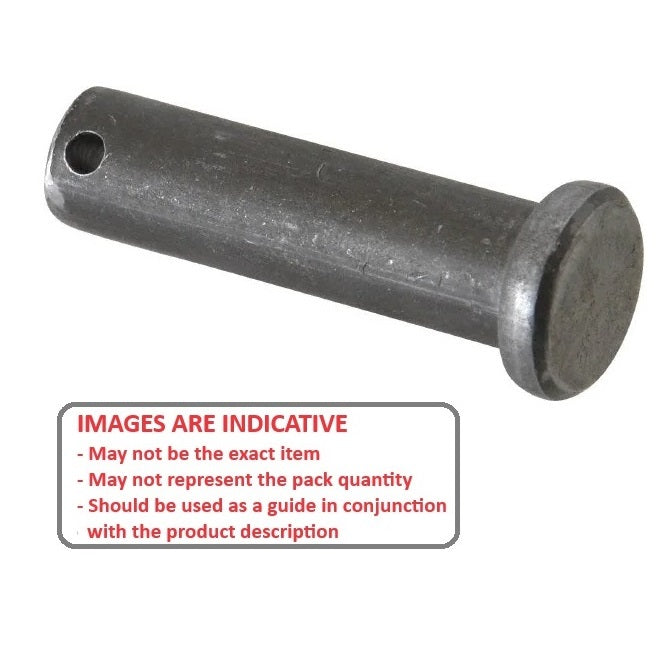

Clevis Pins - 6.35x17.07x19.46 mm Pin Locking - Carbon Steel - Low Carbon 1010 or 1018 Steel
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Master Pins Catalogue PDF
R-Clips
Split Pins
Order 50 or more
for $1.35 AUD Each
Couldn't load pickup availability
1/4 inch Pin - 6.35x17.07x19.46 mm Clevis Pins - Carbon Steel - Low Carbon 1010 or 1018 Steel - Sold per Each:
Base Category: Pins - Clevis
Top Level Category: Pins - Clevis - Pin Locking - Low Carbon Steel
Product Details

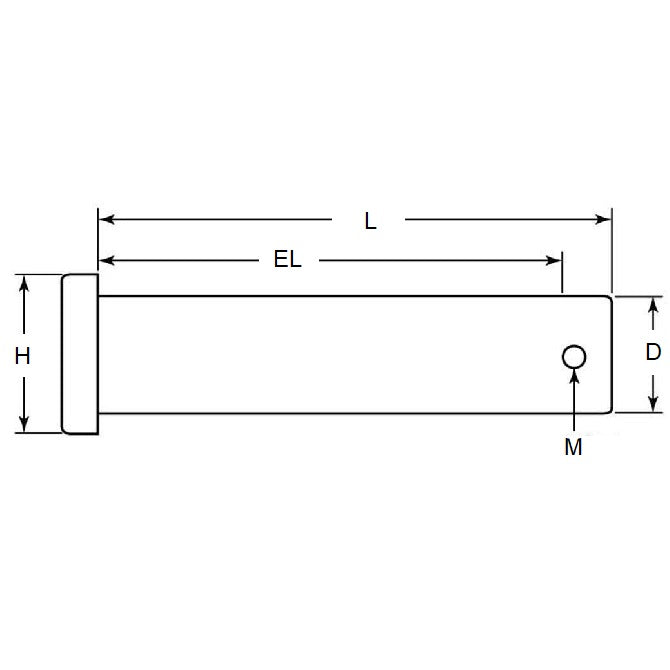

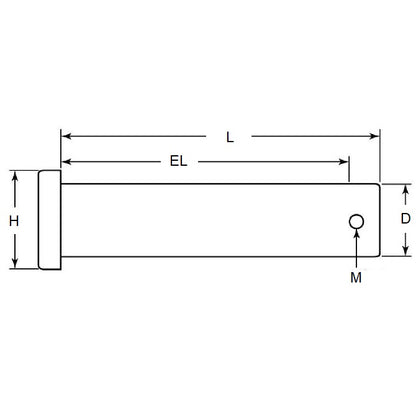

Nominal Pin Diameter (D): 6.35mm- 0.05 / - 0.18
(6.35mm is 0.25 in.)
Carbon Steel - Low Carbon 1010 or 1018 Steel
- Nominal Pin Diameter (D): 6.35mm
- 0.05 / - 0.18
(6.35mm is 0.25 in.)
- Grip Length (EL): 17.07mm
+ 0.51 / - 0.00
(17.07mm is 0.672 in.)
- Nom. Length (L): 19.46mm
+ 0.51 / - 0.00
(19.46mm is 0.766 in.)
- Ret. Pin Dia. (M): 2.4mm
- RCL-020-057-Z
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- ALTPART
- 98306A158
- Reid Tool® YP-32
- YP32
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
CLP0640171P, CLP064
