BF0064-0095-0159-BS1312TT (PK-5)

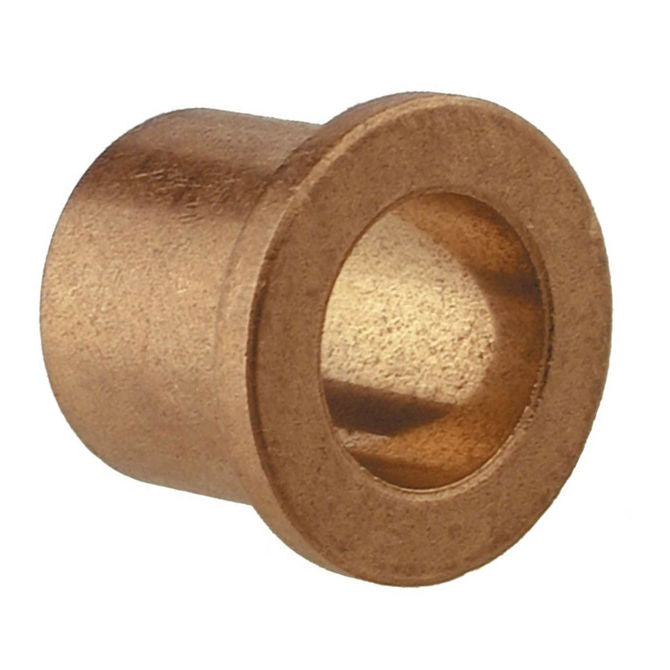

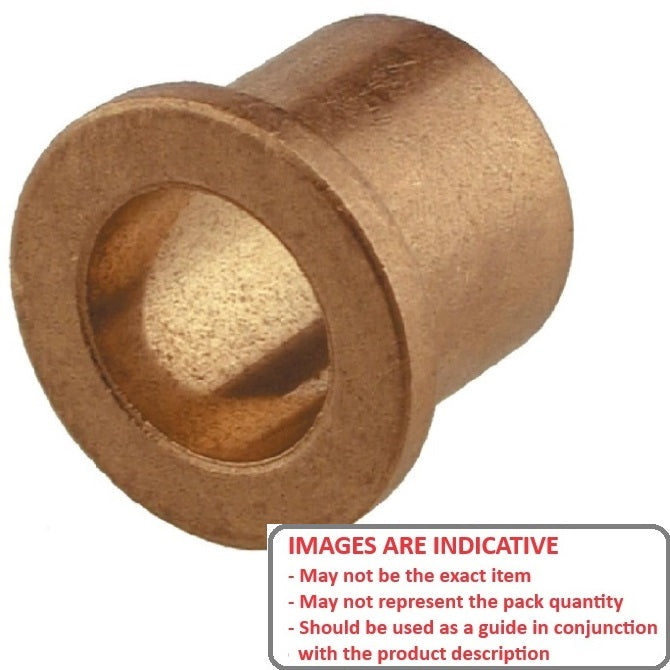

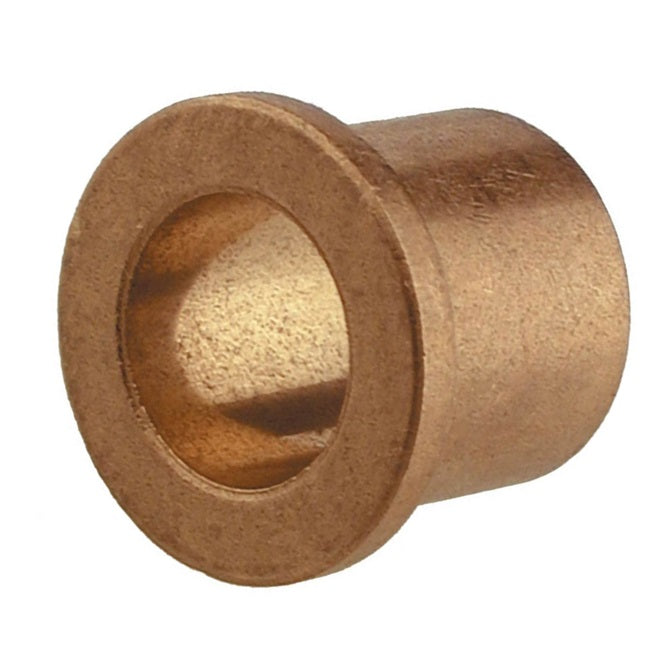

Flanged Bushes - 6.35x9.525x15.875 mm - Bronze SAE 841 Sintered Bush
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleBushes PDF Catalogue
Order 50 or more packs of 5 (250 pcs)
for $14.19 AUD per 5 pack
1/4x3/8x5/8 inch Bush - 6.35x9.525x15.875 mm Flanged Bushes - Bronze SAE 841 Sintered - Sold per pack of 5:
Base Category: Bushes - Flanged
Top Level Category: Bushes - Flanged - Bronze - Sintered
Product Details

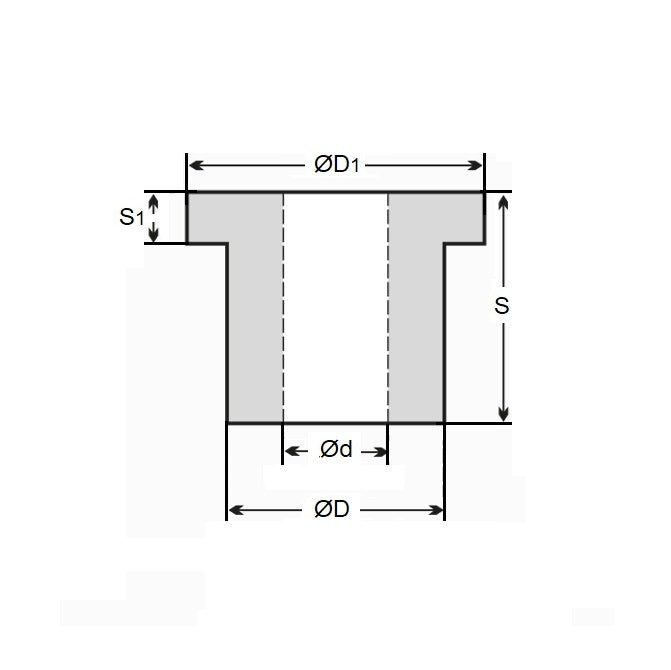

Nominal Inside Diameter (d): 6.350mm+ 0.025 / + 0.051
(6.350mm is 0.25 in.)
Bronze SAE 841 Sintered
- Nominal Inside Diameter (d): 6.350mm
+ 0.025 / + 0.051
(6.350mm is 0.25 in.)
- Nominal Outside Diameter (D): 9.525mm
+ 0.025 / + 0.051
(9.525mm is 0.375 in.)
- Length (s): 15.875mm
+/- 0.191
(15.875mm is 0.625 in.)
- Flange OD (D1): 12.70mm
- Flange Thickness (S1): 1.19mm
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Boston Gear® FB-46-5
- Oilite® FB46-5
- FB465
- A7B4-SF081205
- A7B4SF081205
- BF006400950159BS
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
BF006400950159BS1312TT, BF006400950159
