BF0064-0095-0103-BS1324TH

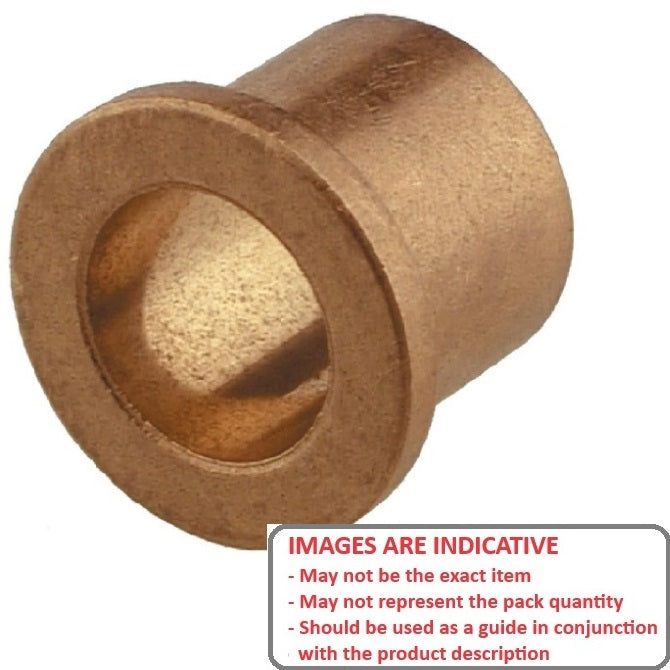

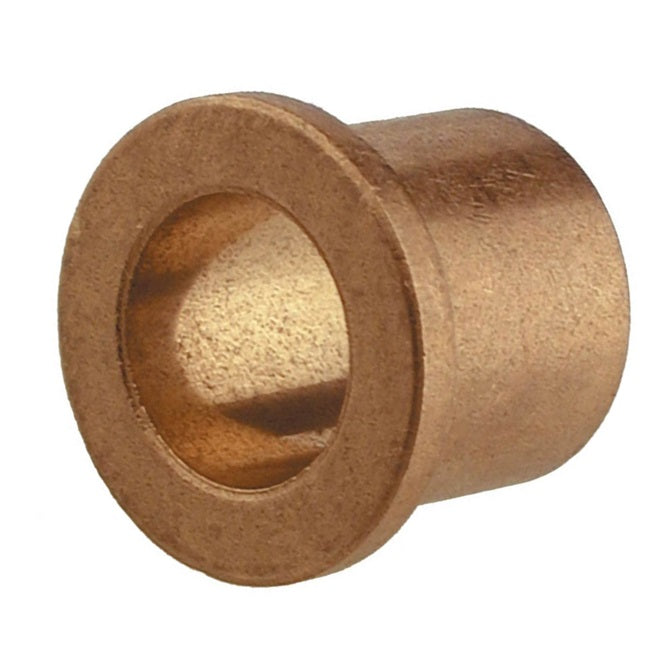

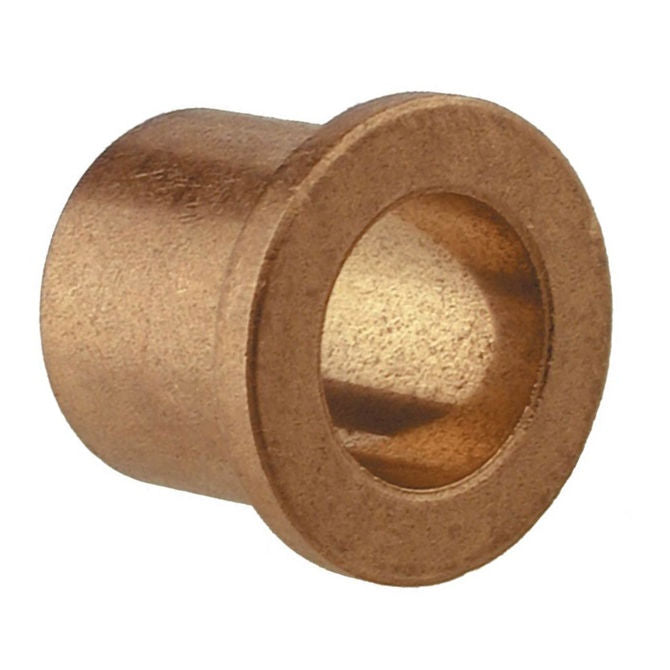

Flanged Bushes - 6.35x9.525x10.312 mm - Bronze SAE 841 Sintered

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Flanged Bushes - 6.35x9.525x10.312 mm - Bronze SAE 841 Sintered
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Collection, Retail, Distributors, Wholesale Additional resources:
Bushes PDF Catalogue
Price:
$5.77 AUD
$6.93 AUD $5.77 AUD
Each
Backorder
Order 50 or more for $5.19 AUD Each
More stock due Jul 28, 2025: Qty 6 Backorder now! If you wish to order more than 6, delivery is expected before Jul 28, 2025

Base Category: Bushes - Flanged

Top Level Category: Bushes - Flanged - Bronze - Sintered

Product Details:

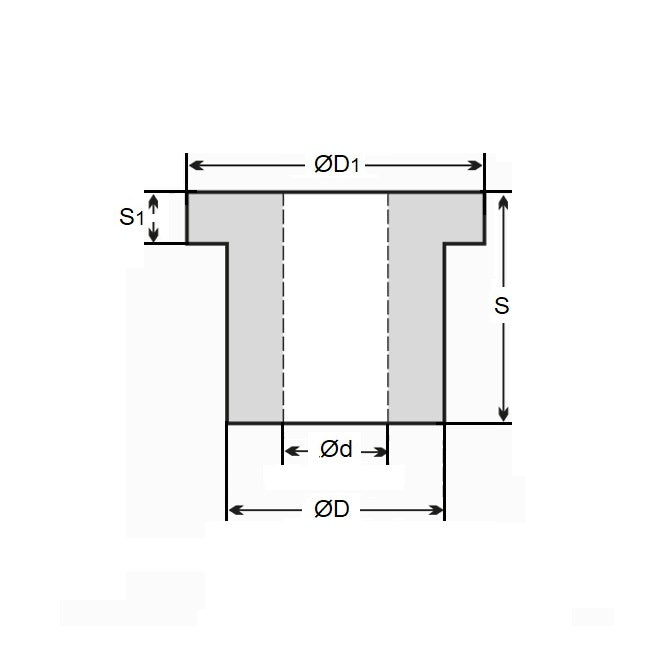

Nom. ID (d): 6.350mm
+ 0.025 / + 0.051
(6.350mm is 0.25 in.)

Bronze SAE 841 Sintered
  • Nom. OD (D): 9.525mm
    + 0.076 / + 0.102
    (9.525mm is 0.375 in.)
  • Length (s): 10.312mm
    +/- 0.127
    (10.312mm is 0.406 in.)
  • Flange OD (D1): 12.70mm
  • Flange Thickness (S1): 2.41mm

Brand: MBA
Country of Origin: US

Alternative Parts Include: BF006400950103BS, BF006400950103BSTH, A7B4F006, A7B4-F006

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
