DP064-019-416-1 (PK-10)
Dowel Pins - 6.35x19.05 Standard - Stainless Steel AISI 416 Rc 36-42 Pin
NoCor
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Dowel Pins Catalogue PDF
Master Pins Catalogue PDF
Order 50 or more packs of 10 (500 pcs)
for $32.45 AUD per 10 pack

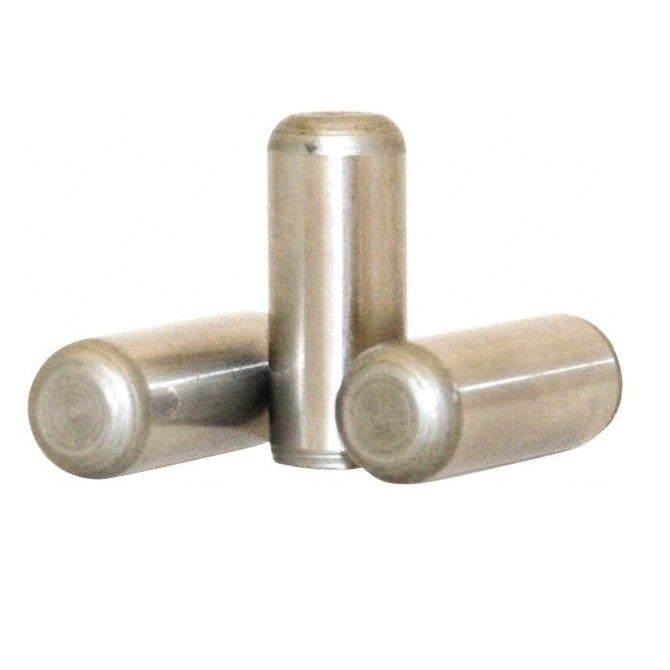

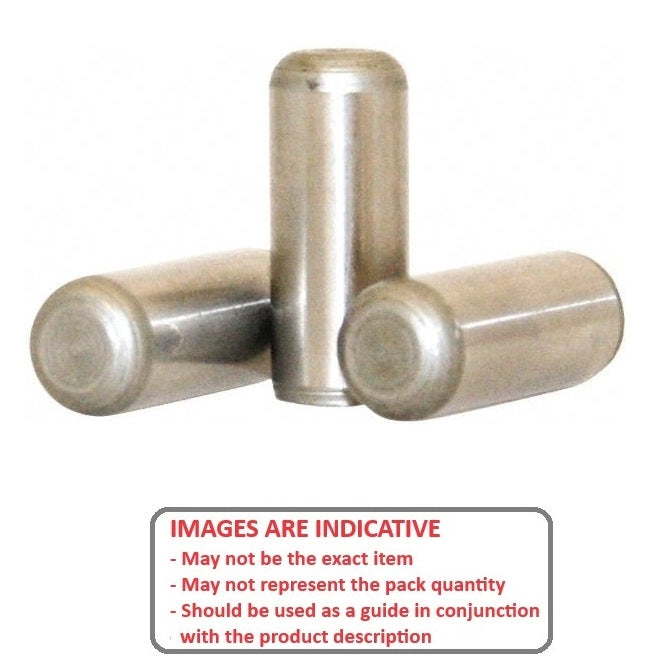

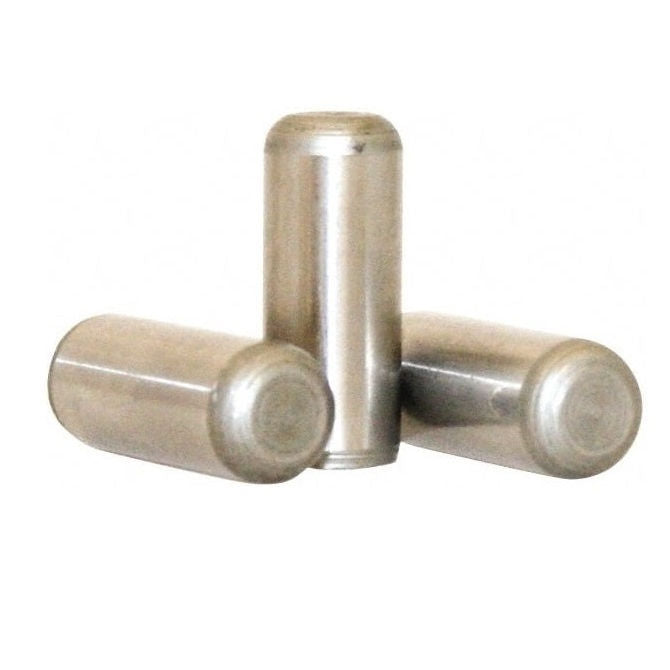

1/4x3/4x3/4 inch Pin - 6.35x19.05 Dowel Pins - Stainless Steel AISI 416 Rc 36-42 - Sold per pack of 10:
Base Category: Pins - Dowel
Top Level Category: Pins - Dowel - Standard - Chamfered Ends - 416 Stainless
Product Details
Additional stock available from USA subject to Prior Sale = 4992
Diameter (D): 6.350mm
+ 0.006 / + 0.015
(6.350mm is 0.25 in.)
Stainless Steel AISI 416 Rc 36-42
- Diameter (D): 6.350mm
+ 0.006 / + 0.015
(6.350mm is 0.25 in.)
- Length (L): 19.05mm
+/- 0.420
(19.05mm is 0.75 in.)
- Approx. Overall Length: 19.05mm
+/- 0.420
(19.05mm is 0.75 in.)

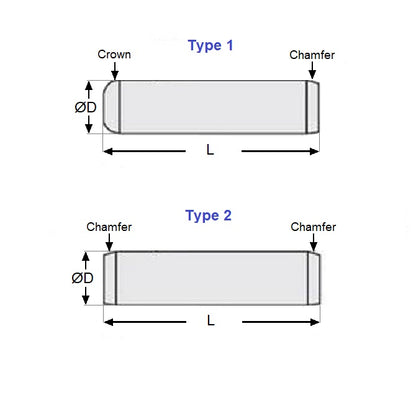

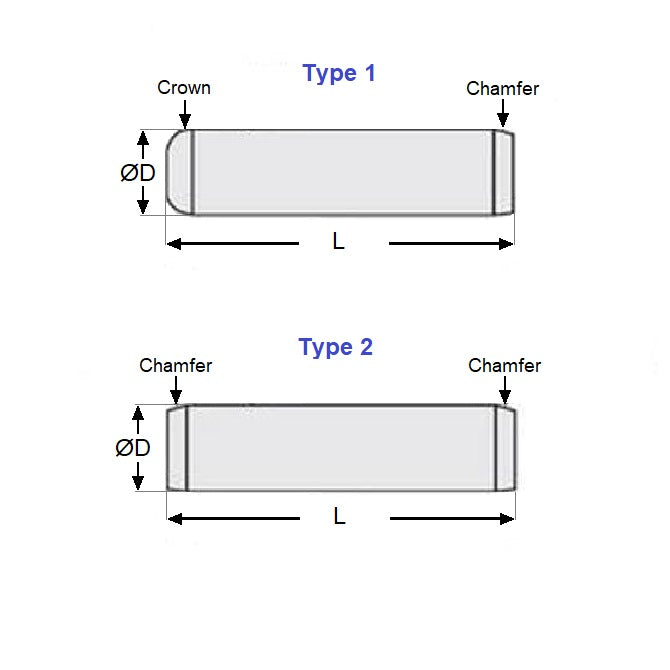

- Type: 1 (Chamfer One End)
- Chamfer: 1.20 x 15 Deg
- Standard: Based on DIN 6325
Brand: NoCor
Country of Origin: US
Product Compliance and Data
Similar to
- Huyett® DOWS-250-0750
- NoCor® DOWS-250-0750
- A 9Y31-0824
- A9Y31-0824
- A9Y310824
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
DP0640194161, DP064019
