RPO-063-065-CZ (1000 Pcs)

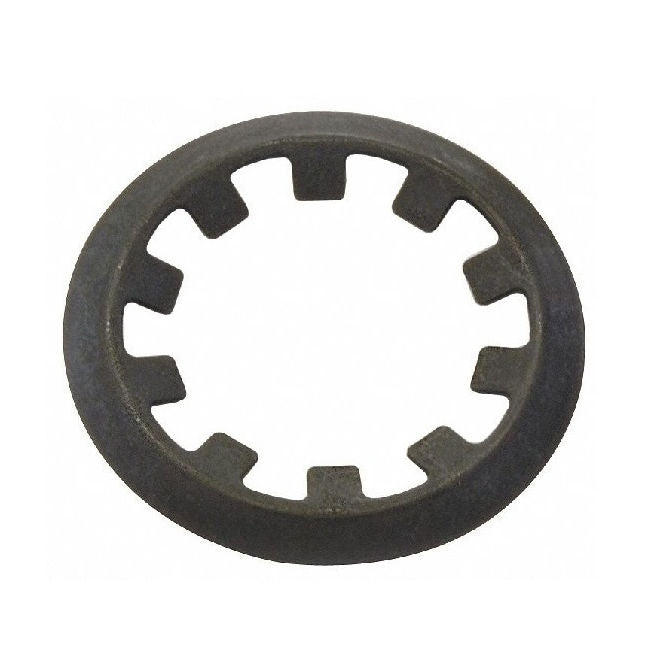

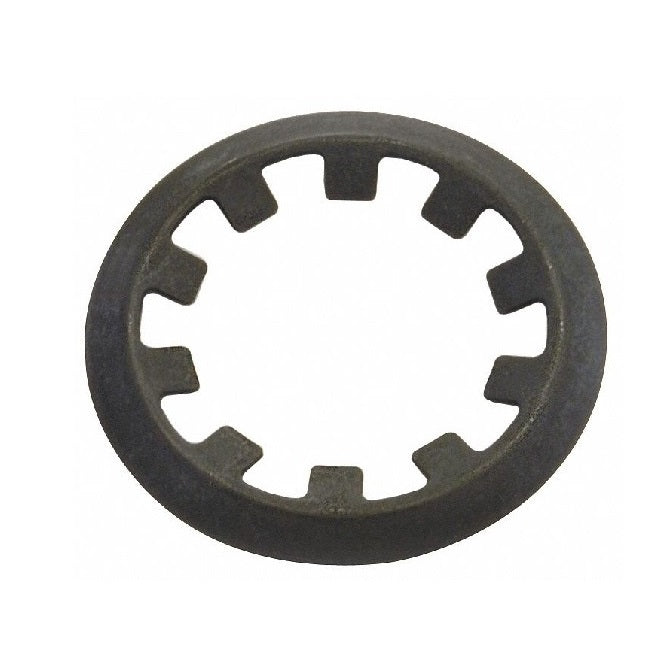

Push On Retaining Rings - 6.25x6.45x13 mm - Carbon Steel Zinc Plated Ring

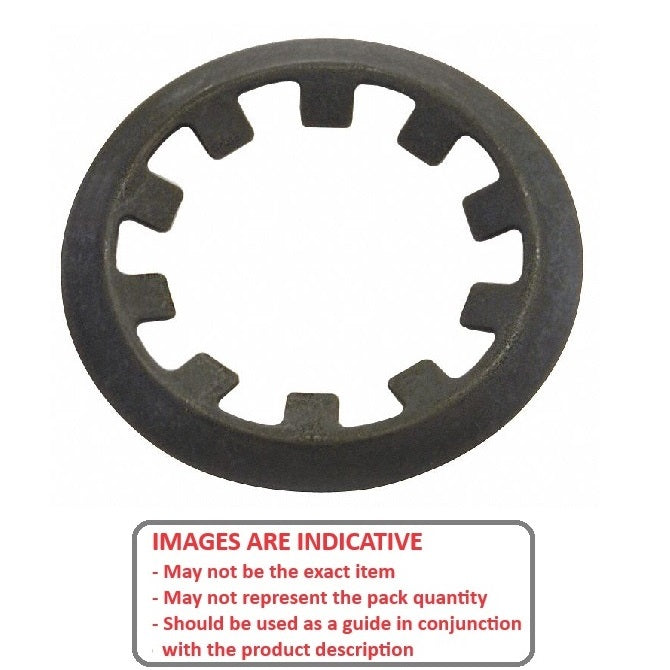

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Push On Retaining Rings - 6.25x6.45x13 mm - Carbon Steel Zinc Plated
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale
Price:
$168.41 AUD
$202.09 AUD $168.41 AUD
per 1000
Backorder
Order 50 or more pack (50000 pcs) for $151.57 AUD per 1000
Backorder now! Backorders for more than the stock quantity are expected before Nov 23, 2025

Base Category: Retaining Rings - Push On

Top Level Category: Retaining Rings - Push On - Carbon Steel

Product Details

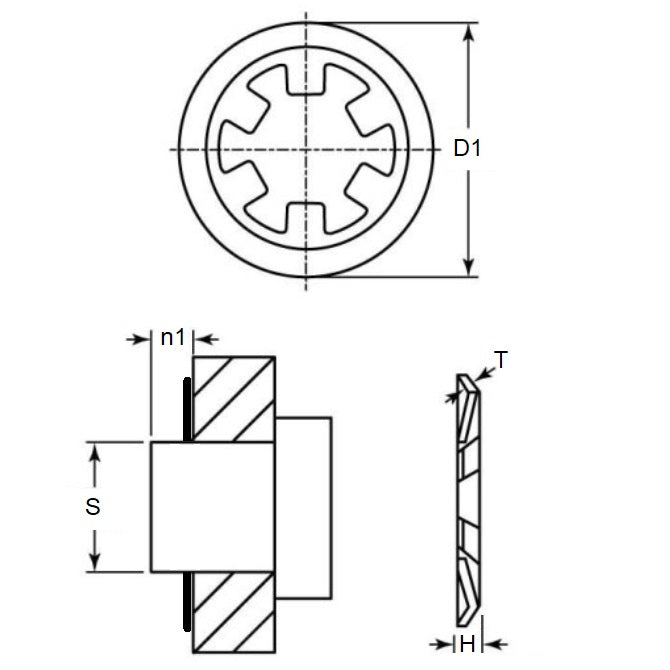

Min shaft size (s1): 6.25mm
(6.25mm is 0.246 in.)

Carbon Steel Zinc Plated
  • Max Shaft Size (s2): 6.45mm
    (6.45mm is 0.254 in.)
  • Outside diameter (D1): 13.00mm
    (13.00mm is 0.512 in.)
  • Min shaft extension (n1): 1.88mm
  • Finish: Zinc Plated
  • Material Thickness (t): 0.38mm

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • Waldes 5115-025-ZD
  • NoCor TX-025-ZD
  • Rotor Clip TX-025-ZD
  • 5115025ZD
  • TX025ZD
  • N1465-025-ZD
  • N1465025ZD

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
