W0050-T-007-007-W3-S400 (2 Pcs)

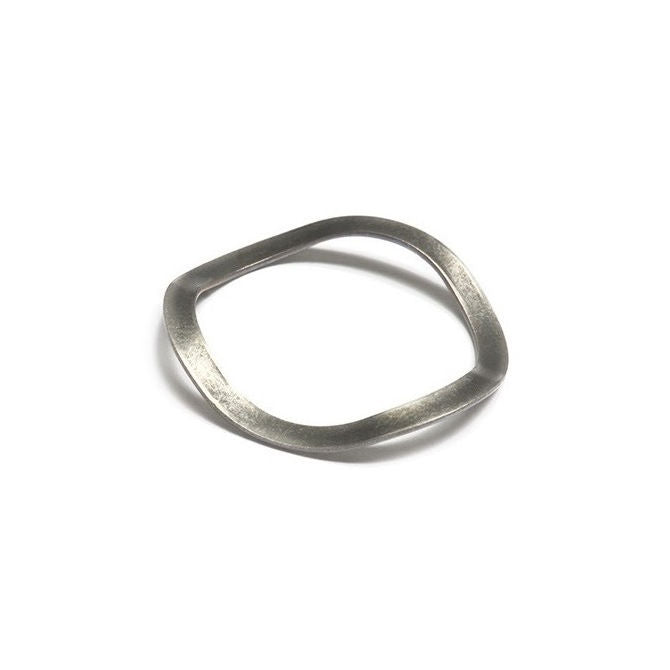

Spring Washers - 5x6.75x0.65 mm 3 Wave - Stainless Steel AISI 400 Series Heat Treated Washer

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Spring Washers - 5x6.75x0.65 mm - Stainless Steel AISI 400 Series Heat Treated
1 4

Myonic

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Assortment Kits
Screws
Price:
$5.95 AUD
$5.95 AUD
2 Per Sell Unit
Excludes GST and overseas Taxes & Duties
 Qty: 1540 available now
Order 50 or more for $5.36 AUD
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Dec 27, 2025

Base Category: Washers - Spring

Top Level Category: Washers - Spring - 3 Wave - 400 Grade Stainless

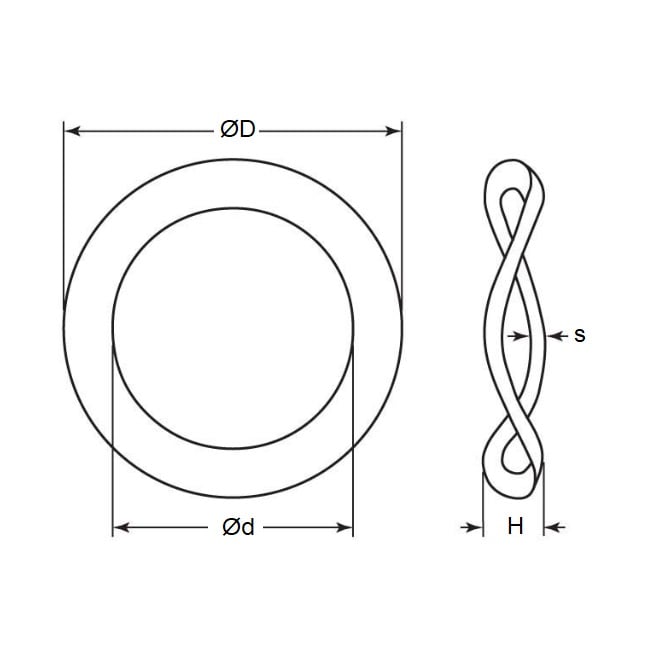

Product Details

Nominal Inside Diameter (d): 5.00mm
(5.00mm is 0.197 in.)

Stainless Steel AISI 400 Series Heat Treated
  • Nominal Inside Diameter (d): 5.00mm
    (5.00mm is 0.197 in.)
  • Nominal Outside Diameter (D): 6.75mm
    (6.75mm is 0.266 in.)
  • Nom. Height (H): 0.65mm
    + / - 0.05
    (0.65mm is 0.026 in.)
  • Thickness (s): 0.12mm
    +/- 0.01
  • Info: Made in Germany
  • Type: 3 Wave
  • Nominal Screw Size: M5, 10-24, 10-32, 3/16
  • Actual ID (Ref): 5.2mm

Brand: Myonic
Country of Origin: DE

Product Compliance and Data

Similar to

  • FS5X7
  • FS5X7x0.12

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
