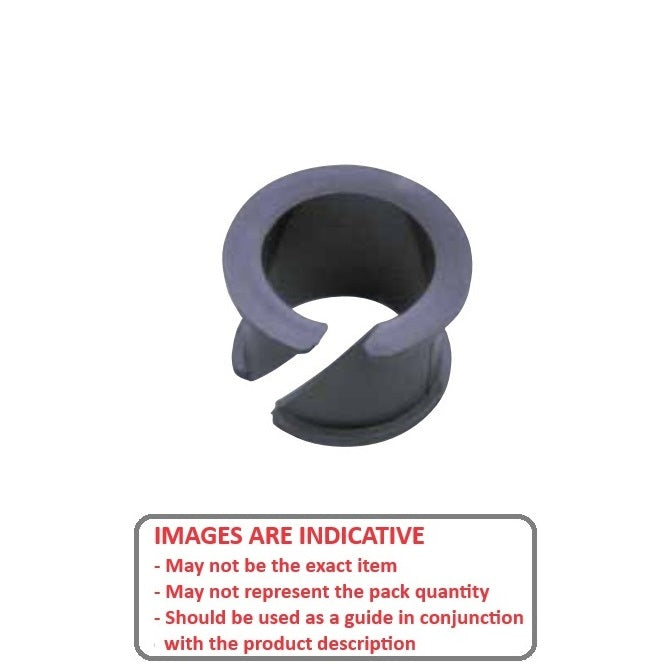

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 3

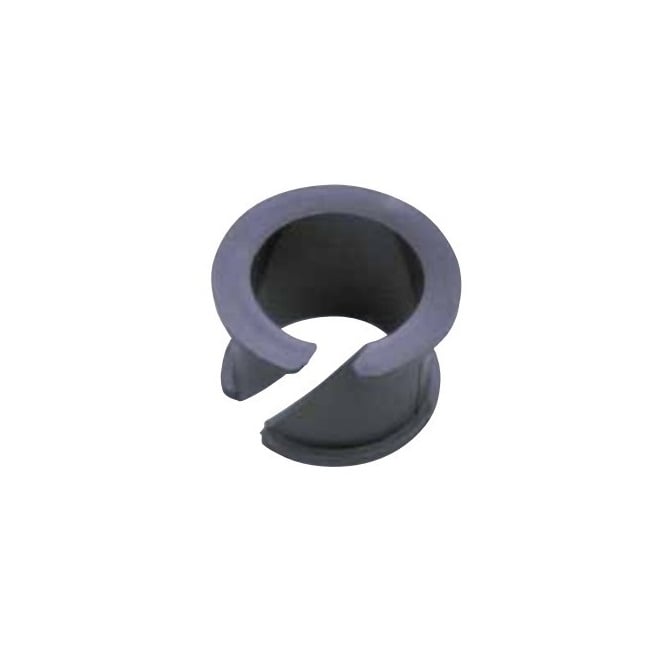

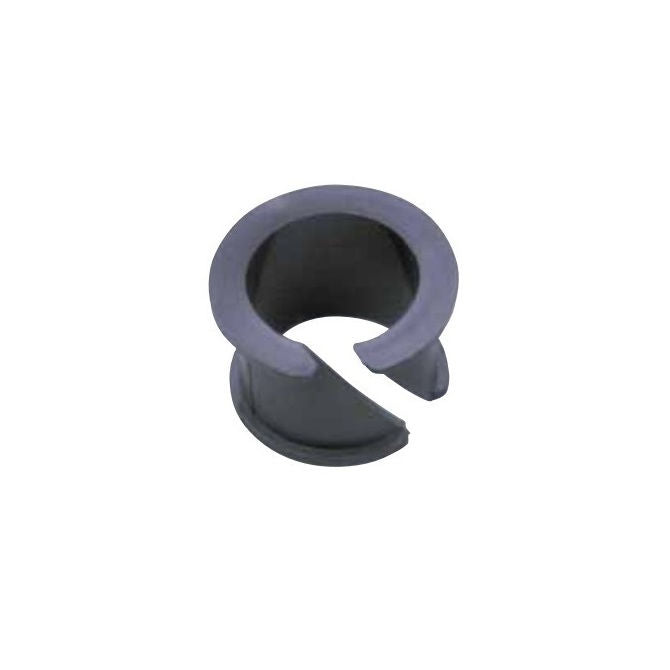

Clip Bushes - 5 mm x 6.2 mm x 3.2 mm
BF0050-0062-0032-PC2

Name: 1062262 | BF0050-0062-0032-PC2 --- Clip Bushes - 5 mm x 6.2 mm x 3.2 mm
Brand: MBA
SKU: BF005000620032PC2
Price: 11.32 AUD
Availability: InStock

MBA

Category: Bushes - Clip - Double Flanged

Additional resources:
Bushes PDF Catalogue

Price:

$11.32 AUD

Each
Out Of Stock
Order 50 or more for $10.19 AUD Each

Pre-Order now! Backorders for more than the stock quantity are expected before Feb 17, 2025

Quantity

Base Category: Bushes - Clip

Top Level Category: Bushes - Clip - Double Flanged

Product Details:

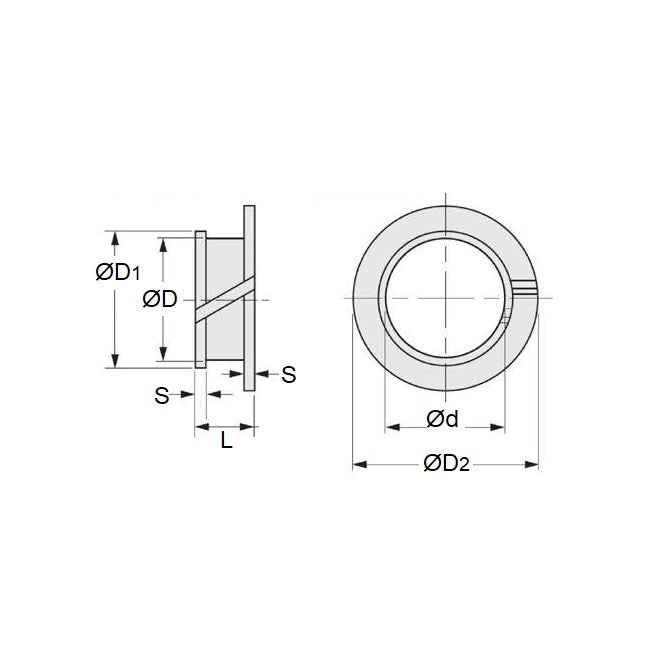

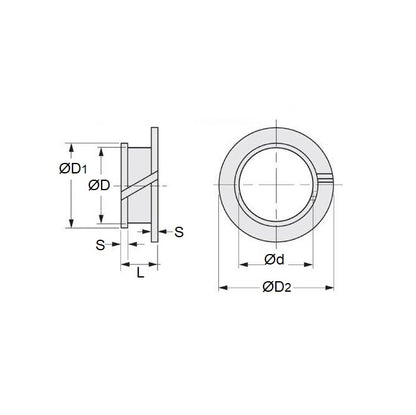

Nom. ID (d): 5.000mm
Plastic

Nom. OD (D): 6.200mm
Overall Length: 3.200mm
Large Flange Dia: 8.000mm
Flange Width (S): 0.6mm
Small Flange Dia: 6.800mm
Min Housing Bore: 5.980mm
Max Housing Bore: 6.200mm
Min Shaft Size: 4.975mm
Max Shaft Size: 5.000mm
Sheet Metal Thickness: 1.45 to 1.92

Brand: MBA
Country of Origin: DE

Alternatives: 7817K55, S99GMCM05068

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
