COL-00500-016-09-1C-CS (PK-50)

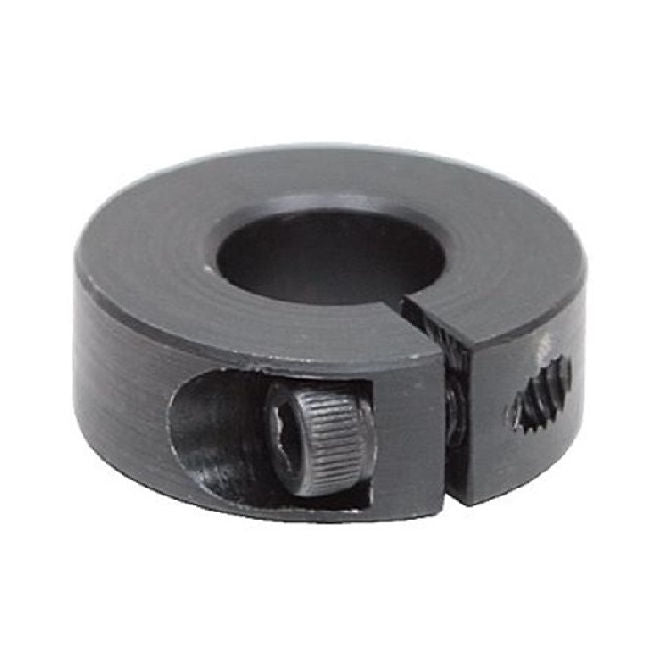

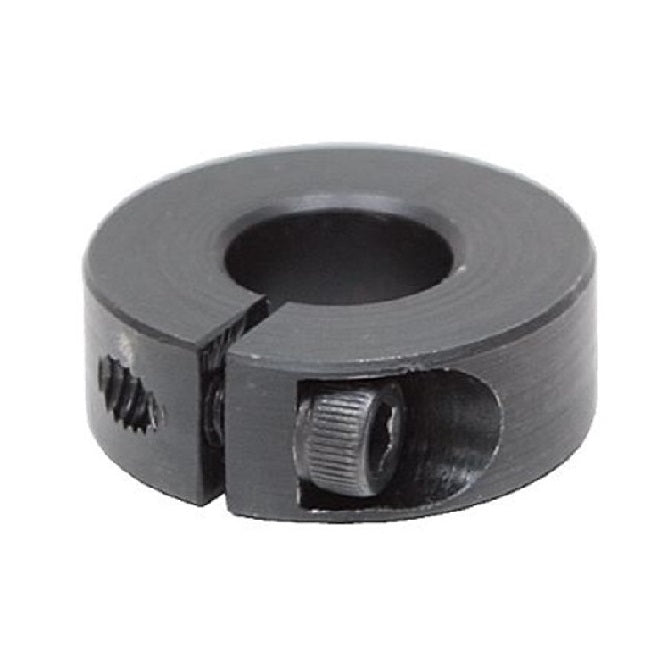

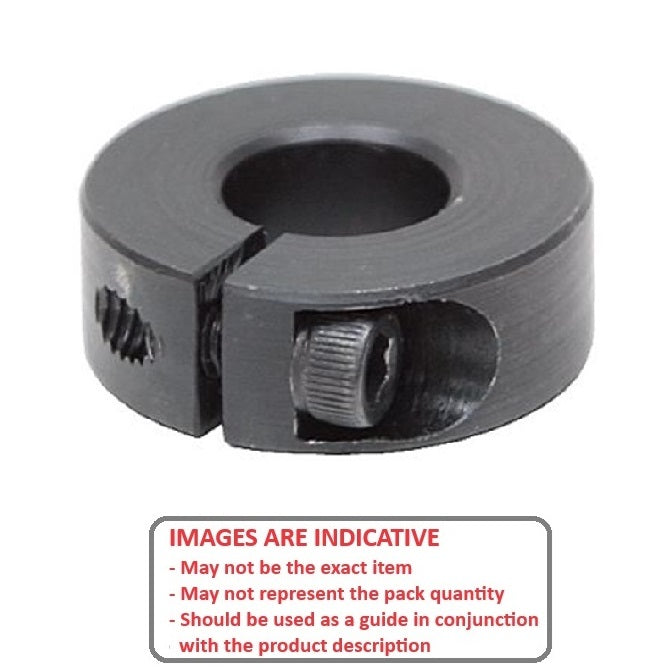

Shaft Collars - 5x16x9 mm Clamp Type - Steel, Black Oxide Coated Collar
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Shaft Collars PDF Catalogue
Order 50 or more packs of 50 (2500 pcs)
for $123.83 AUD per 50 pack
5x16x9 mm Shaft Collars - Steel, Black Oxide Coated - Sold per pack of 50:
Base Category: Collars - Shaft
Top Level Category: Collars - Shaft - Clamp Type - One Piece - Steel
Product Details

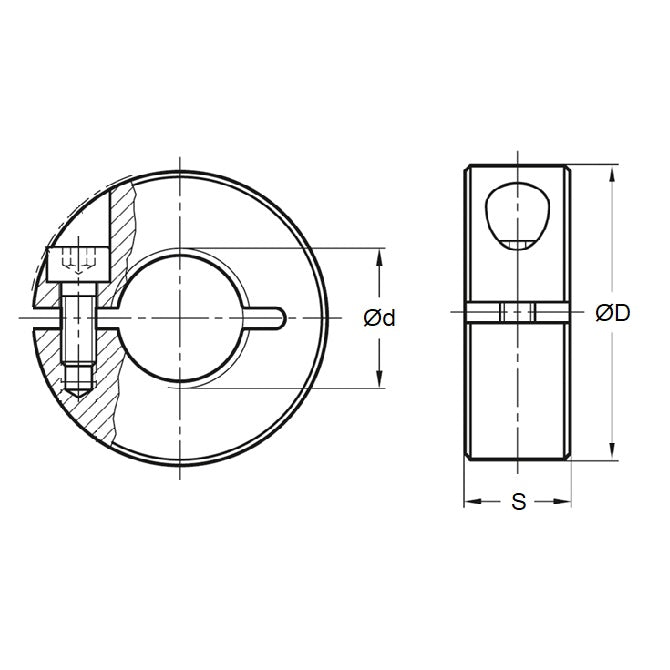

Suitable Shaft Size (d): 5.000mm(5.000mm is 0.197 in.)
Steel, Black Oxide Coated
- Suitable Shaft Size (d): 5.000mm
(5.000mm is 0.197 in.)
- Outside Diameter (D): 16.00mm
(16.00mm is 0.63 in.)
- Overall Width (S): 9.0mm
(9.0mm is 0.354 in.)
- Screw Size: M3.0x0.50 (3.0mm)
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- RINO® 1LM005
- Reid Tool® CTC-701
- Huyett® SCM1-005-BO
- NoCor® SCM1-005-BO
- CTC701
- COL00500016091CCBO
- COL-00500-016-09-1C-CBO
- SCM1005BO
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
COL00500016091CCS, COL00500016
