DP050-012-CH-1 (10 Pcs)

Dowel Pins - 5x12x12 mm Standard - Steel 100Cr6 - Heat Treated and Ground Rc 58-62

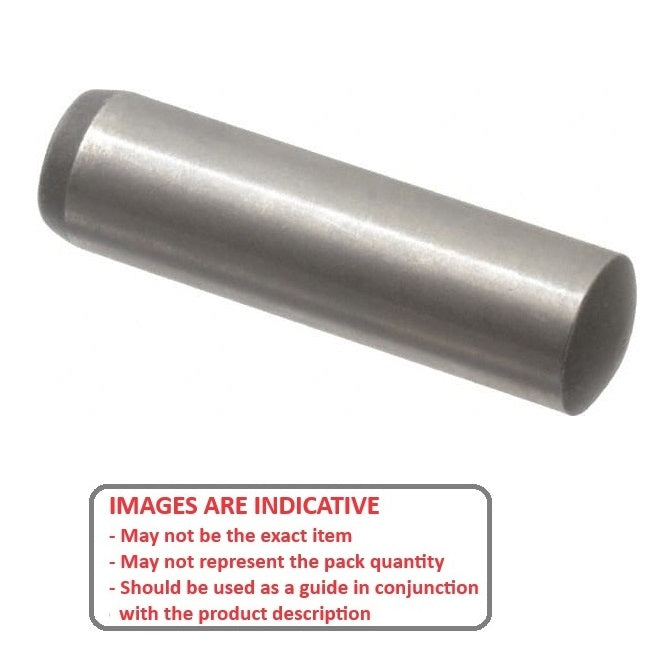

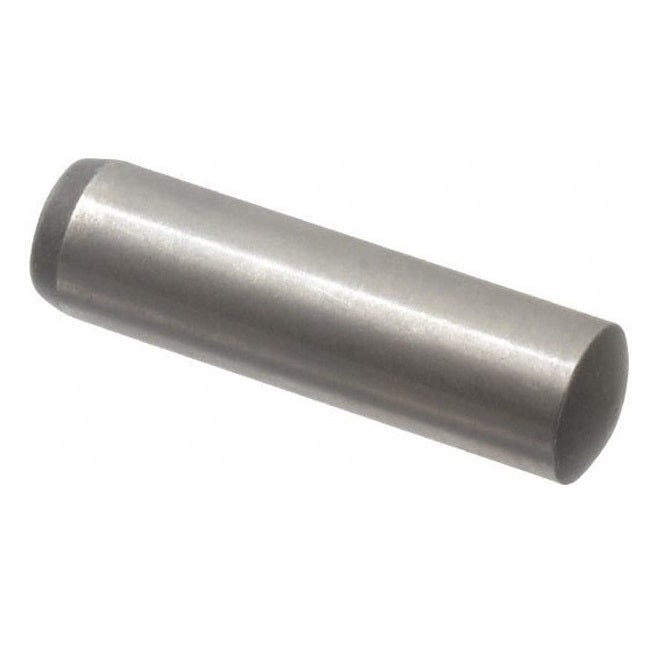

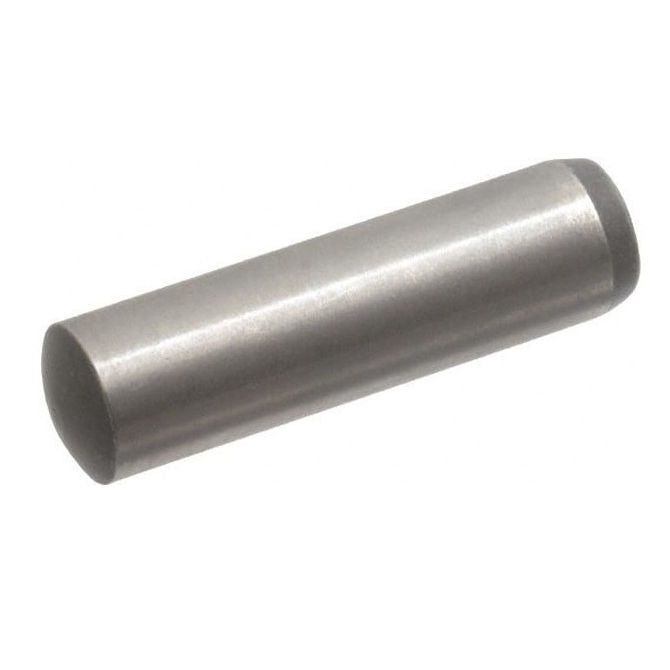

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Dowel Pins - 5x12x12 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62
1 4

NoCor

Store: Minibearings - Miniature Bearings Australia - Online, Collection, Retail, Distributors, Wholesale Additional resources:
Dowel Pins Catalogue PDF
Master Pins Catalogue PDF
Price:
$5.41 AUD
$5.41 AUD
per 10
Qty: 26 packs (260 pcs) available now
Order 50 or more packs (500 pcs) for $4.87 AUD per 10
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Oct 13, 2025

Base Category: Pins - Dowel

Top Level Category: Pins - Dowel - Standard - Chamfered Ends - Carbon Steel

Product Details:

Diameter (D): 5.000mm
+ 0.004 / + 0.012
(5.000mm is 0.197 in.)

Steel 100Cr6 - Heat Treated and Ground Rc 58-62
  • Length (L): 12.00mm
    +/- 0.350
    (12.00mm is 0.472 in.)
  • Approx. Overall Length: 12.00mm
    +/ - 0.350
    (12.00mm is 0.472 in.)

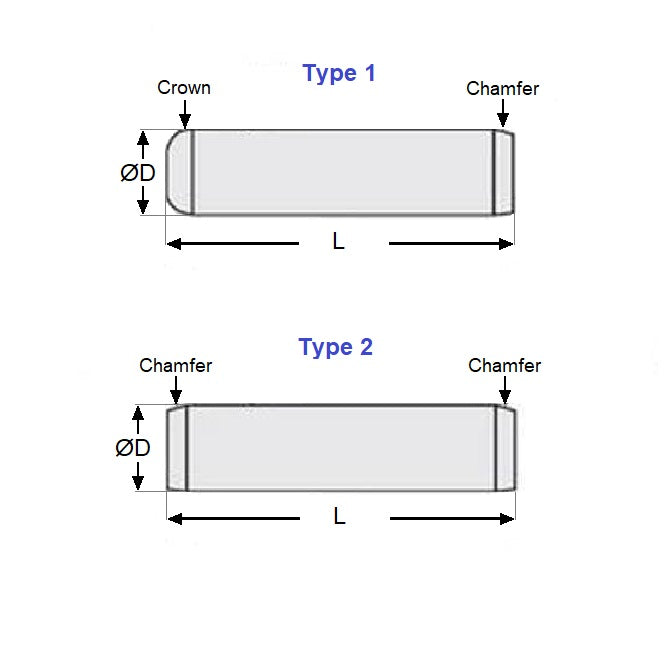

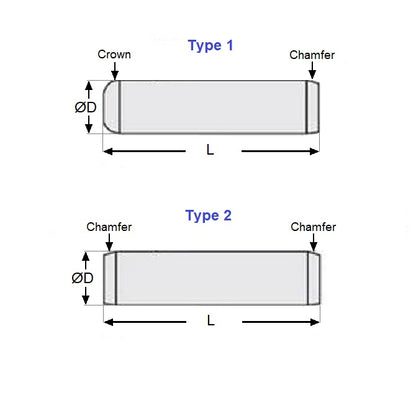

  • Type: 1 (Chamfer One End)
  • Standard: Based on DIN 6325

Brand: NoCor
Country of Origin: US

Alternative Parts Include: MD6325MQB050X012, DOWMH050012, DOWMH-050-012, DH512, DH5-12, 536052, Brighton Best, NoCor

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
