T-0050-0100-G

Base Category: Bearings - Thrust Ball

Top Level Category: Bearings - Thrust Ball - Grooved - Chrome Steel

Product Details

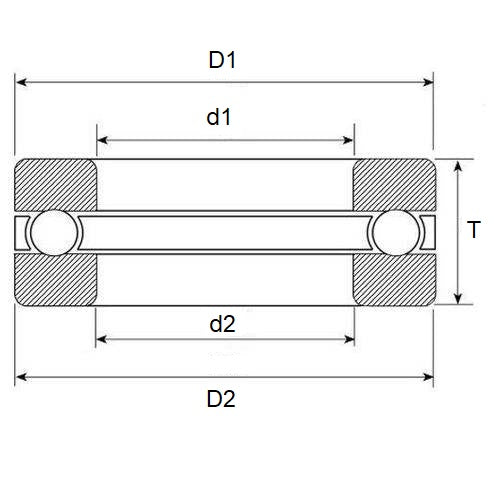

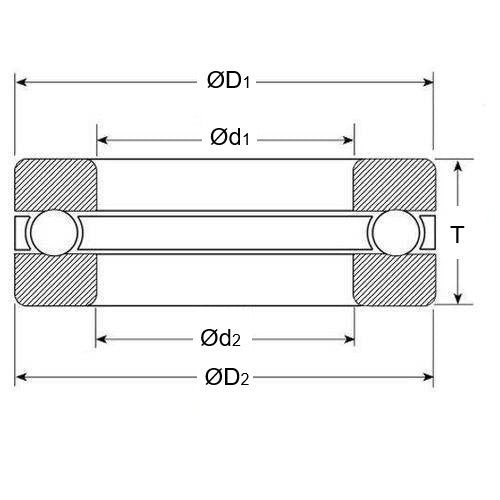

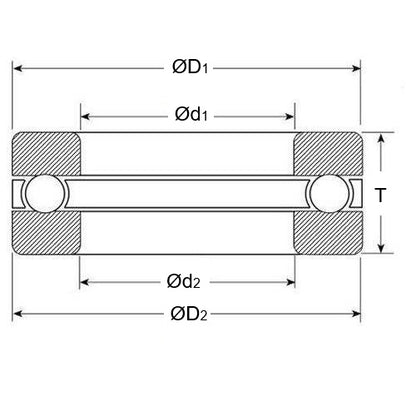

• OD (D1): 10.000mm
  _{(10.000mm is 0.394 in.)}

• Thickness (T): 4.000mm
  _{(4.000mm is 0.157 in.)}

• Bore (d2): 5.200mm
• OD (D2): 10.000mm
• Dynamic Load Capacity: 92kgf
• Cage Type: SAE 52100 Chrome Steel

Product Compliance and Data

• Full Data Sheet
• RoHs Statement
• Reach Statement
• CoC Information

Similar to

• Kyosho 1135
• HIROBO 2500-082
• Nachi 5TAM10
• ERGO 81029
• Origin CRT5-10
• Origin CT5-10
• BOCA F5-10G
• 2500082
• F510G
• CRT510
• CT510

Used for

• RC Car Parts
• RC Helicopter Parts
• Cross Fire Force - F1 Electric - Thrust Bearing 5-10-4mm
• GS General Silicone - Vision Pro - Thrust Bearing 5-10-4mm
• Hobao - Hyper GPX4 - Thrust Bearing 5-10-4mm
• HPI - Proceed - Thrust Bearing 5-10-4mm
• HPI - Proceed Update - Thrust Bearing 5-10-4mm
• Kyosho - Evolva 2005 - Thrust Bearing 5-10-4mm
• Kyosho - V-One RR Evolution - Thrust Bearing 5-10-4mm
• Kyosho - V-One RRR - Thrust Bearing 5-10-4mm
• Mugen - MTX-4 - Thrust Bearing 5-10-4mm
• Serpent - 835 1-10 2WD - Thrust Bearing 5-10-4mm
• Serpent - 835 1-10 4WD - Thrust Bearing 5-10-4mm
• Serpent - 950 - Centax Clutch II Thrust Bearing
• Serpent - 950 - Thrust Bearing 5-10-4mm
• Xray - NT1 - Thrust Bearing 5-10-4mm
• Ergo - 30 - Holder Thrust Bearing
• Hirobo - Lepton EX - Thrust Bearing 5-10-4mm
• Hirobo - Shuttle Plus - 60
• Hirobo - Shuttle ZTS Upgrade Kit - Thrust Bearing 5-10-4mm
• Hirobo - Shuttle ZXX - 2500-082 Thrust Bearing
• Hirobo - Shuttle ZXX - Thrust Bearing 5-10-4mm
• Kyosho - CONCEPT 30 DX Upgrade - Thrust Bearing 5-10-4mm
• Kyosho - CONCEPT 30 SR-T - Thrust Bearing 5-10-4mm
• Kyosho - CONCEPT 30-SX - 204 Thrust Bearing
• Synergy - N9 - Thrust Bearing 5-10-4mm
• Thunder Tiger - Raptor 30 Complete Kit - 30
