B-025T-0058-0040-PFA

Timing 2.5mm Pitch T2.5 Belts - 58 tooth - 145x4 mm 4mm Wide - Polyurethane with Fibreglass Cords Belt

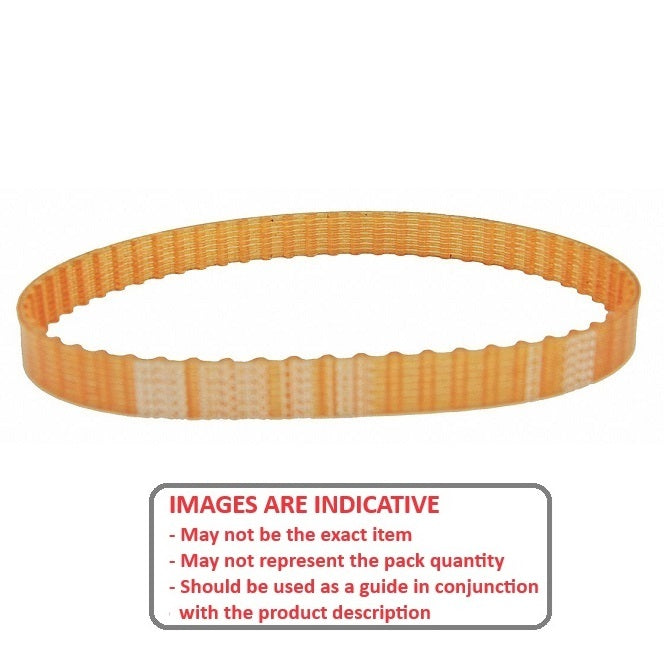

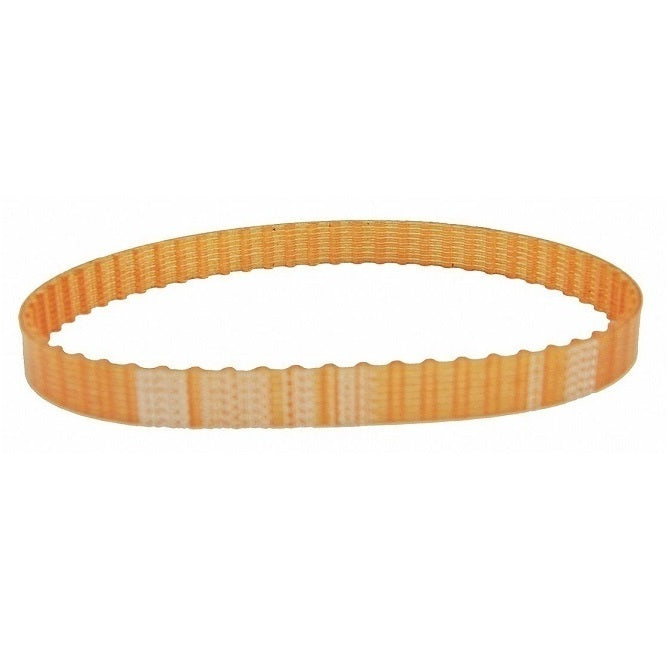

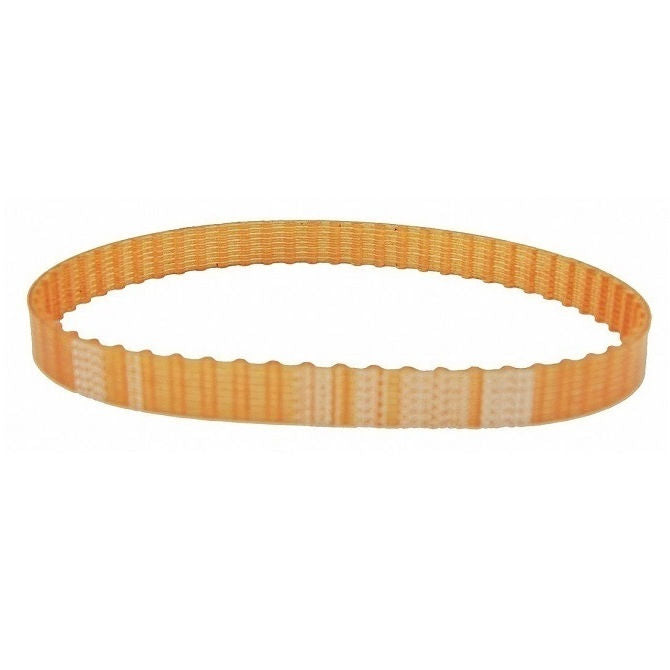

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Timing 2.500mm Pitch T2.5 Belts - 58 tooth - 145x4 mm - Polyurethane with Fibreglass Cords
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Timing Belts Catalogue PDF
Idler Pulleys
Price:
$26.41 AUD
$26.41 AUD
Each
Qty: 3 available now
Order 50 or more for $23.77 AUD Each
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Sep 27, 2025

Base Category: Belts - Timing 2.500mm Pitch T2.5

Top Level Category: Belts - Timing 2.500mm Pitch T2.5 - 4mm Wide

Product Details

Number of Teeth: 58

Polyurethane with Fibreglass Cords
  • Length: 145mm
    (145mm is 5.709 in.)
  • Width: 4.0mm
    (4.0mm is 0.157 in.)
  • Reinforcement: Fibreglass
  • Appearance: Amber
  • Breaking Strength: 156N
  • Min Temperature (C): -18Deg C
  • Max Temperature (C): 82Deg C
  • Tooth Angle (A): 40°

Brand: MBA
Country of Origin: GB

Product Compliance and Data

Similar to

  • A6T32MF058040

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
