P-050G-050-250FF-CB-N-127U (Each)
Metric Timing Pulleys - 50 tooth - 25x12.7 mm 5mm Pitch - Cast Iron Pulley
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Timing Pulleys Catalogue PDF
5mm GT Timing Belts
Order 50 or more
for $217.19 AUD Each
50 tooth - 25x12.7 mm Metric Timing Pulleys - Cast Iron - Sold per Each:
Base Category: Pulleys - Metric Timing
Top Level Category: Pulleys - Metric Timing - 5.000mm Pitch - GT - 25mm Wide - Through Bore
Product Details
Number of Teeth: 50Cast Iron
- Number of Teeth: 50
- Max Belt Width: 25.00mm
(25.00mm is 0.984 in.)
- Bore (d): 12.700mm
(12.700mm is 0.5 in.)
- Bore Type: Unfinished
- Locking Type: None

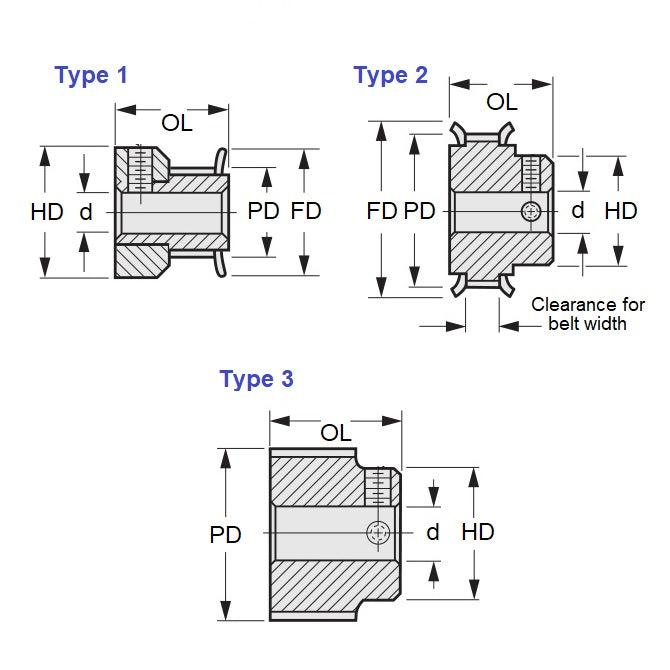

- Type: 2
- Pitch Dia. (PD): 79.54mm
- Flange Diameter (FD): 84.6mm
- Overall Length: 45.2mm
- Hub Diameter (HD): 63.5
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Gates® 50-5P25-6FS6
- 505P256FS6
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
