SK032C-016-SK-C (50 Pcs)

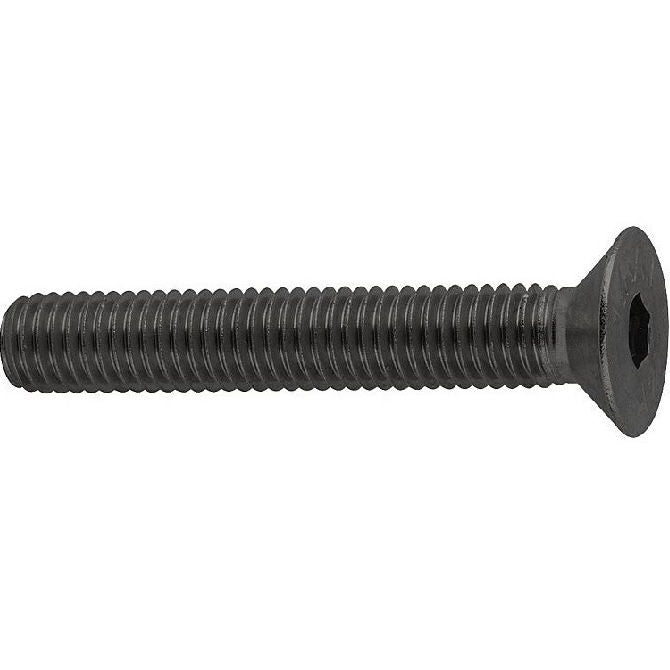

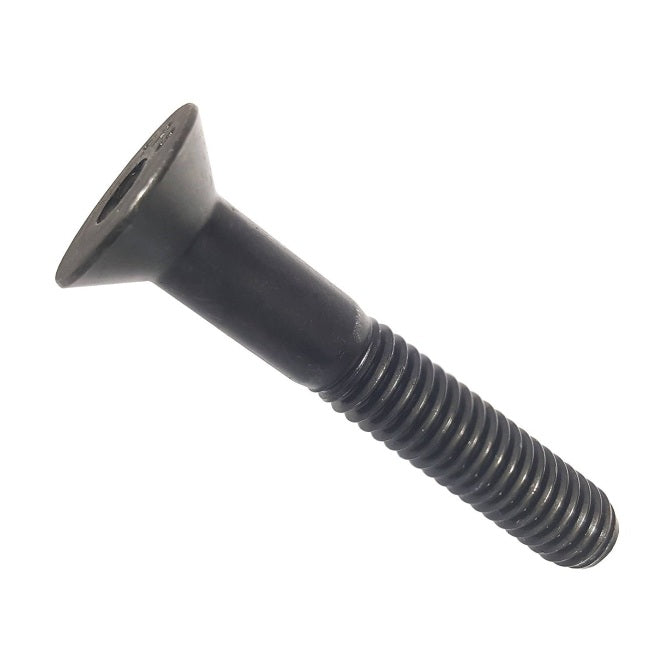

Countersunk Screws - 5-40 UNC - 3.18mm - 15.9 mm - High Tensile Steel / Black Oxide Socket Screw

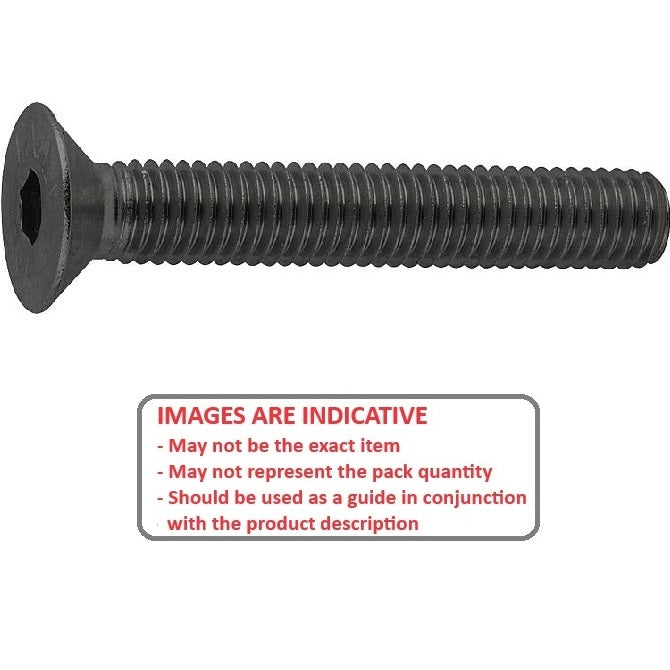

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Countersunk Screws - 5-40 UNC - 3.18mm - 15.9 mm - High Tensile Steel / Black Oxide Socket
1 4

Brighton Best

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
PDF Screws Catalogue
Washers
Nuts
Price:
$33.23 AUD
$33.23 AUD
per 50
Backorder
Order 50 or more pack (2500 pcs) for $29.91 AUD per 50
Backorder now! Backorders for more than the stock quantity are expected before Sep 07, 2025

Base Category: Screws - Countersunk

Top Level Category: Screws - Countersunk - Socket - Steel - Standard

Product Details

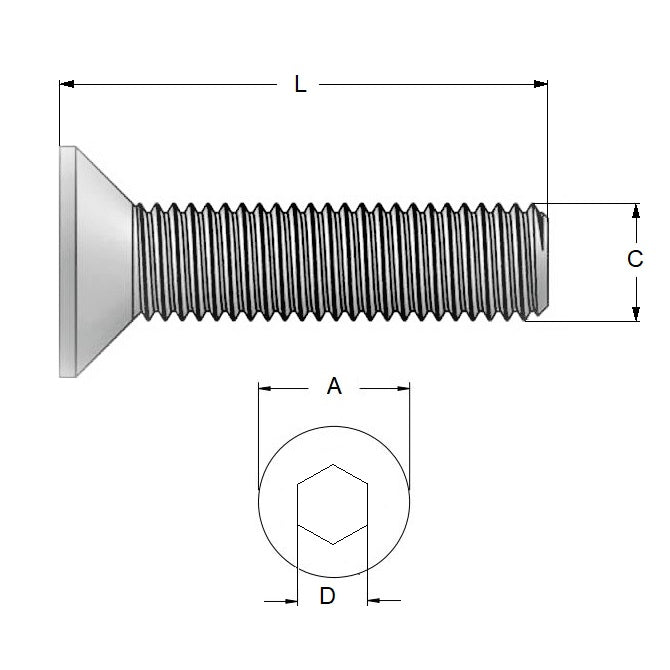

Thread Size (C): 5-40 UNC (3.18mm)

High Tensile Steel Black Oxide
  • Overall Length (L): 15.9mm
    + 0.0 / - 0.76
    (15.9mm is 0.626 in.)
  • Material: High Tensile Steel / Black Oxide
  • Max Head Diameter: 7.1mm
  • Max Head Height: 2.3mm
  • Minimum Thread Length (l): Not Specifiedmm
  • Hex Key (s): 1.98 (5/64)mm
  • Countersunk Angle: 82°
  • Pitch: 0.635mm
  • Threads Per Inch: 40TPI

Brand: Brighton Best
Country of Origin: TW

Product Compliance and Data

Similar to

  • Brighton Best 211025
  • ALTPART
  • 91253A130

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
