THS079C-025-F-MI

Thumb Screws - 5/16-18 UNC - 7.94mm - 25.4x42.86 mm Flat Key Head - Malleable Iron Screw

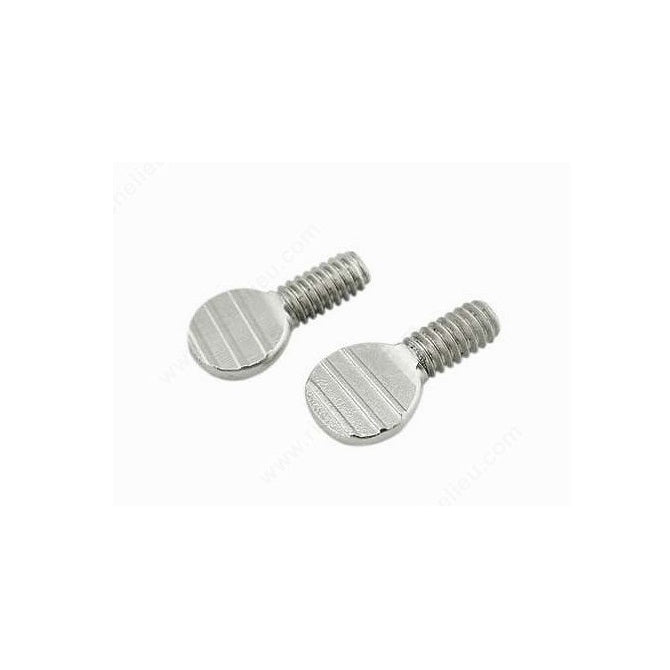

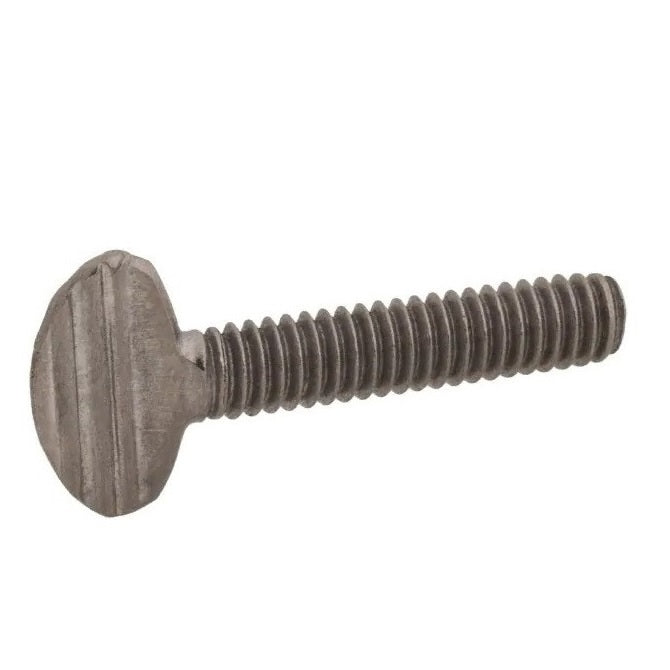

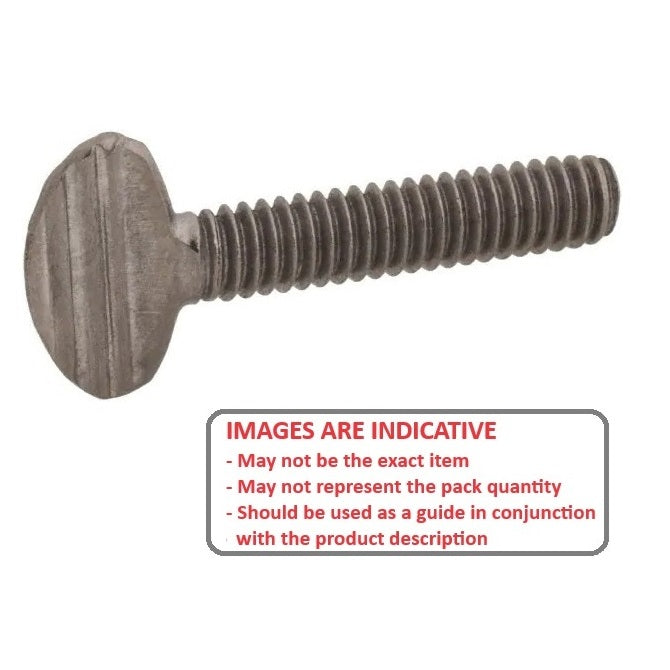

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Thumb Screws - 5/16-18 UNC - 7.94mm - 25.4x42.86 mm Flat Key Head - Malleable Iron
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Thumb Screws and Nuts PDF Quick Guide
PDF Screws Catalogue
Nuts
Price:
$7.68 AUD
$16.65 AUD $7.68 AUD
Each
Excludes GST and overseas Taxes & Duties
 Qty: 8 available now
Only 8 may be ordered online. If you need a large quantity, please contact us.

Base Category: Screws - Thumb

Top Level Category: Screws - Thumb - Flat Key Head - Standard

Product Details

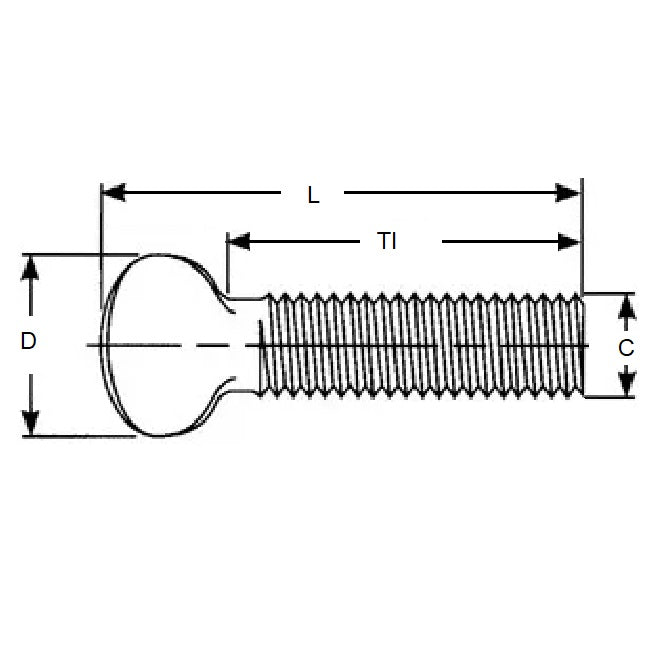

Thread Size (C): 5/16-18 UNC (7.94mm)

Malleable Iron
  • Thread Size (C): 5/16-18 UNC (7.94mm)
  • Thread Length (Tl): 25.40mm
    (25.40mm is 1 in.)
  • Overall Length (L): 42.86mm
    (42.86mm is 1.687 in.)
  • Head Diameter (D): 25.40mm
  • Finish: Tumbled
  • Head Type: Flat Key

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • MIT14
  • MIT-14

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
