T-0040-0090-G-BR (20 Pcs)

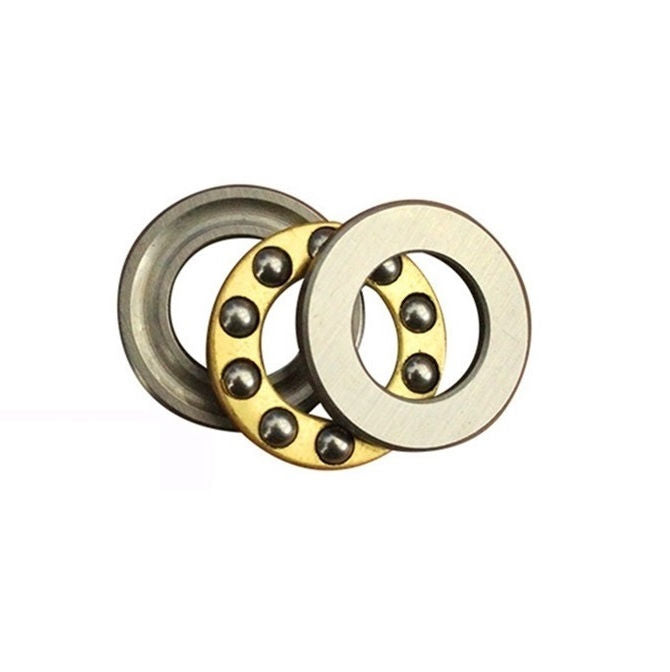

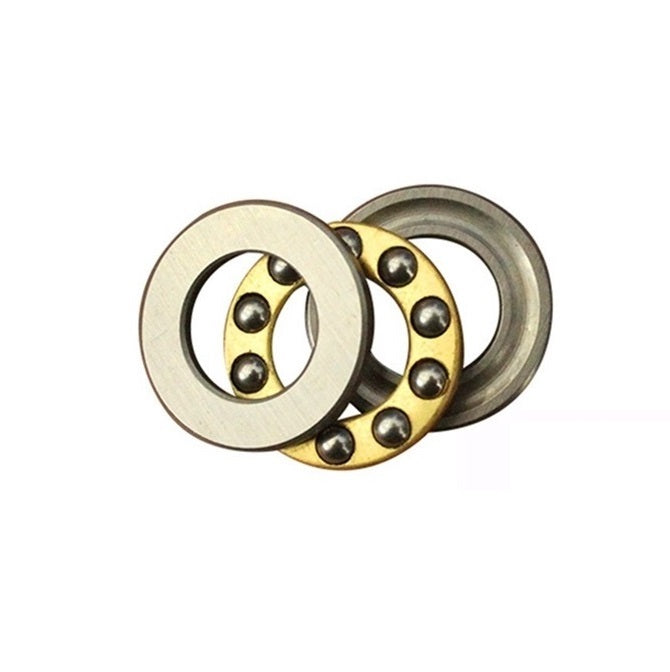

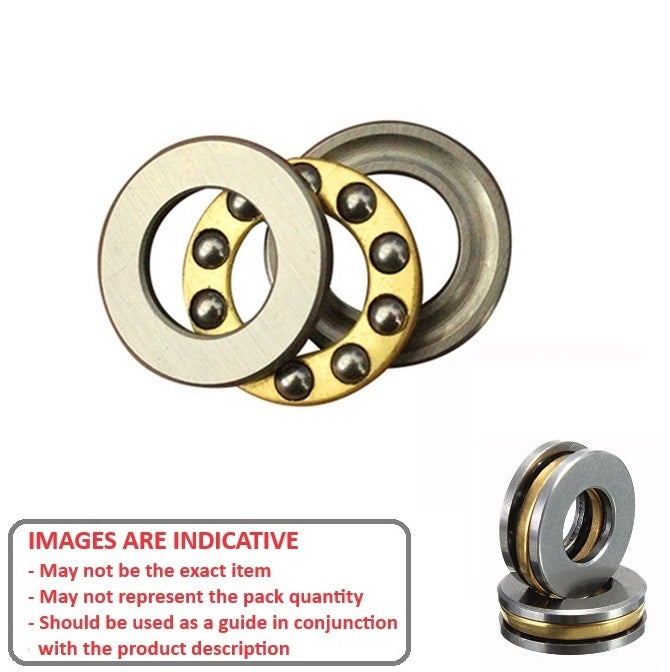

Thrust Ball Bearings - 4x9x4 mm / 4.2 mm Grooved - Chrome Steel Bearing
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Thrust Bearings PDF Catalogue
Shafting
Order 50 or more for $150.01 AUD
Base Category: Bearings - Thrust Ball
Top Level Category: Bearings - Thrust Ball - Grooved - Chrome Steel
Product Details

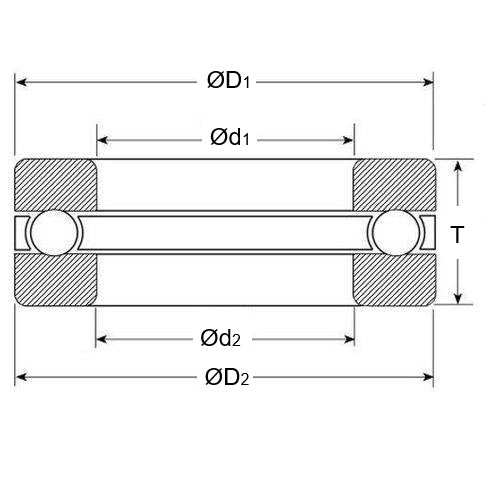

Shaft Diameter (d1): 4.000mm(4.000mm is 0.157 in.)
Chrome Steel
- Shaft Diameter (d1): 4.000mm
(4.000mm is 0.157 in.)
- OD (D1): 9.000mm
(9.000mm is 0.354 in.)
- Thickness (T): 4.000mm
(4.000mm is 0.157 in.)
- Bore (d2): 4.200mm
- OD (D2): 8.800mm
- Dynamic Load Capacity: 83kgf
- Cage Type: Brass
Brand: MBA
Country of Origin: JP
Product Compliance and Data
Similar to
- HIROBO 2500-062
- GMP 457
- Nachi 4TAM9
- SERPENT 4x9
- GMP 6302
- ALTPART
- 7806K54
- F4-9M
- F49M
- 2500062
Used for
- RC Helicopter Parts
- Century - Falcon 46/50 SE II - Thrust Bearing 4-9-4mm
- Century - Predator 60 SE - Thrust Bearing 4-9-4mm
- Century - Predator 60/70 - Thrust Bearing 4-9-4mm
- Century - Predator Gas SE Complete - Thrust Bearing 4-9-4mm
- Century - Predator Gasser Complete - Thrust Bearing 4-9-4mm
- Century - Predator Max 90 - Thrust Bearing 4-9-4mm
- GMP - Cobra - 457 Thrust Bearing
- GMP - Cobra - 6302 Thrust Bearing
- GMP - Competition - 457 Thrust Bearing
- GMP - Competition - 6302 Thrust Bearing
- GMP - Cricket - 457 Thrust Bearing
- GMP - Cricket - 6302 Thrust Bearing
- GMP - Elite Rotor Head - 457 Thrust Bearing
- GMP - Elite Rotor Head - 6302 Thrust Bearing
- GMP - Legend - 457 Thrust Bearing
- GMP - Legend - 6302 Thrust Bearing
- GMP - Rebel - 457 Thrust Bearing
- GMP - Rebel - 6302 Thrust Bearing
- GMP - Stork - 457 Thrust Bearing
- GMP - Stork - 6302 Thrust Bearing
- Hirobo - Sceadu 30 Evolution - Thrust Bearing 4-9-4mm
- Hirobo - Sceadu 50 Evolution - Thrust Bearing 4-9-4mm
- Hirobo - Shuttle ZXX - 2500-062 Thrust Bearing
- Hirobo - Shuttle ZXX - Thrust Bearing 4-9-4mm
- Hirobo - Tsurgi - 2500-062 Thrust Bearing
- JR - Ergo 60 - Thrust Bearing 4-9-4mm
- JR - Vigor CS - Thrust Bearing 4-9-4mm
- Miniature Aircraft - X-Cell 50-60 - Thrust Bearing
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
