NSC-0040-0080-0080-TN (3000 Pcs)

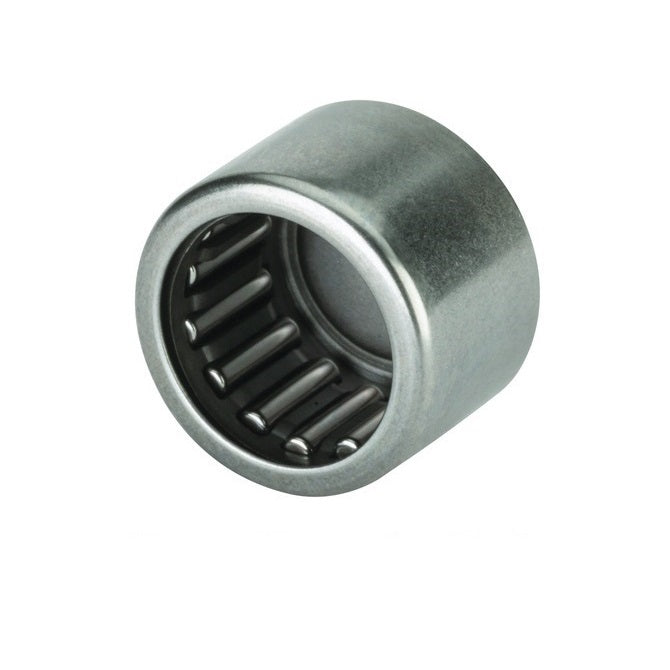

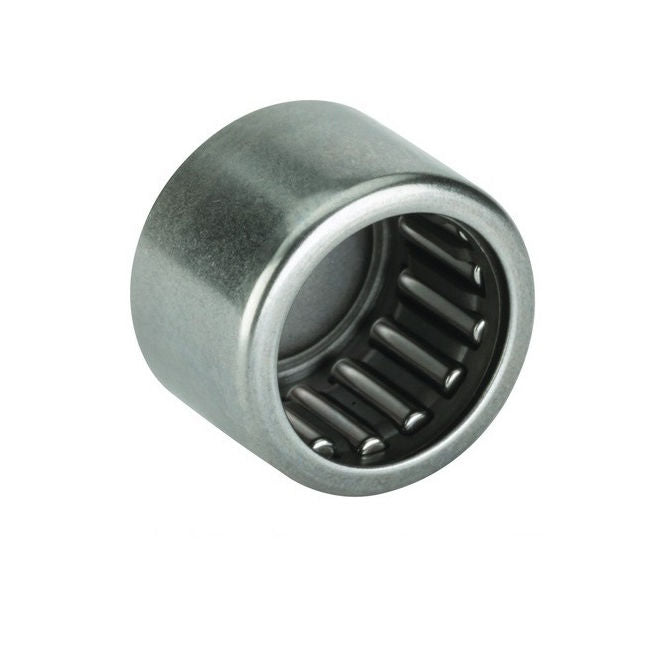

Needle Roller without Inner Ring Bearings - 4x8x8 mm / 170 Kgf Shell Type - Chrome Steel Bearing

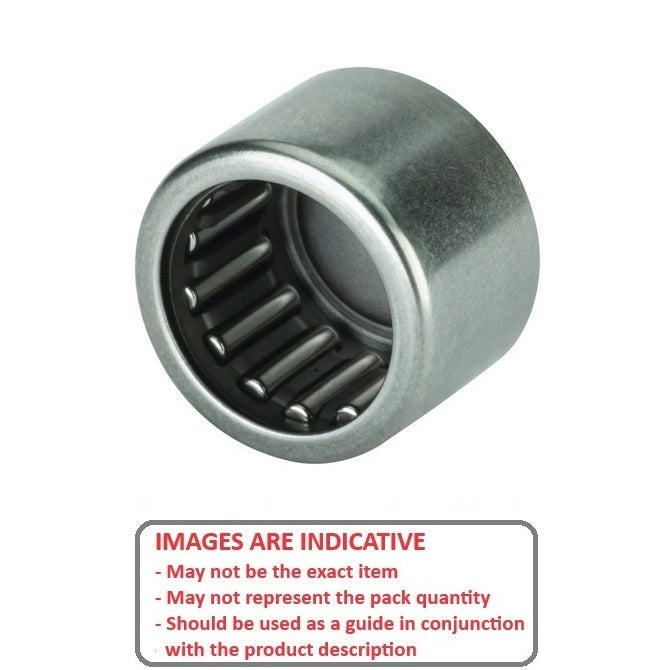

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Needle Roller without Inner Ring Bearings - 4x8x8 mm / 170 mm - Chrome Steel Shell
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Shafting
Price:
$3,712.95 AUD
$4,455.55 AUD $3,712.95 AUD
per 3000
Backorder
Order 50 or more pack (150000 pcs) for $3,341.66 AUD per 3000
Backorder now! Backorders for more than the stock quantity are expected before Sep 27, 2025

Base Category: Bearings - Needle Roller without Inner Ring

Top Level Category: Bearings - Needle Roller without Inner Ring - Shell Type - Closed End

Product Details

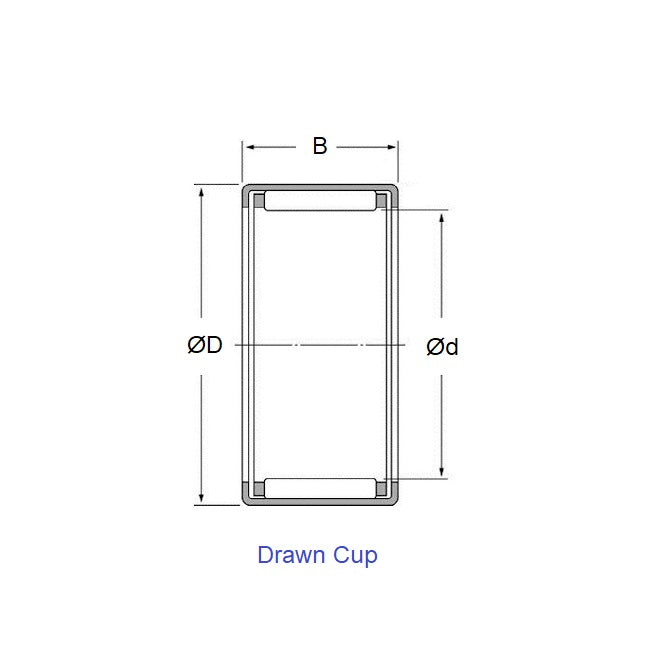

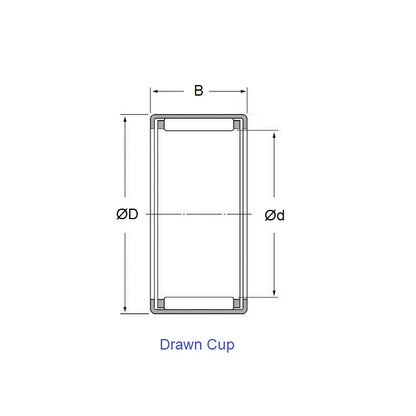

Shaft Diameter (d): 4.000mm
(4.000mm is 0.157 in.)

Chrome Steel
  • OD (D): 8.000mm
    (8.000mm is 0.315 in.)
  • Width (B): 8.000mm
    (8.000mm is 0.315 in.)
  • Basic Dynamic Load Rating: 170Kgf
  • Basic Static Load Rating: 130Kgf
  • Limiting Speed Grease: 32000RPM
  • Limiting Speed Oil: 48000RPM
  • Cage Type: Polyamide
  • Seals: None
  • Type: Closed End

Brand: MBA
Country of Origin: TW

Product Compliance and Data

Similar to

  • FAG BK0408TN
  • INA BK0408TN
  • ISO BK0408TN
  • Torrington BK0408TN
  • IKO TLAM48

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
