PSP-040-040-C (PK-10)

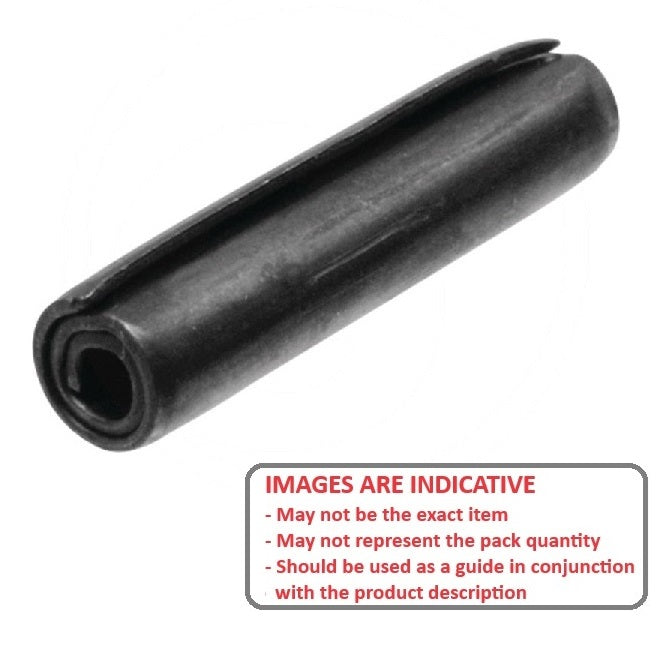

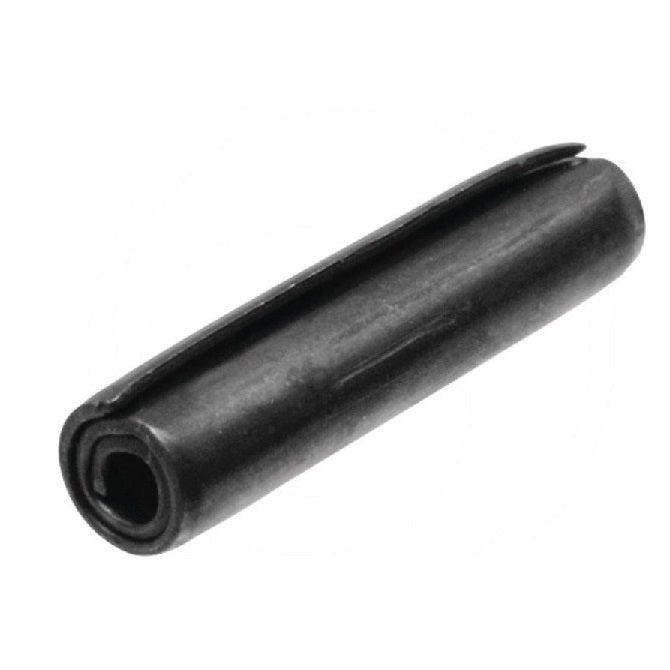

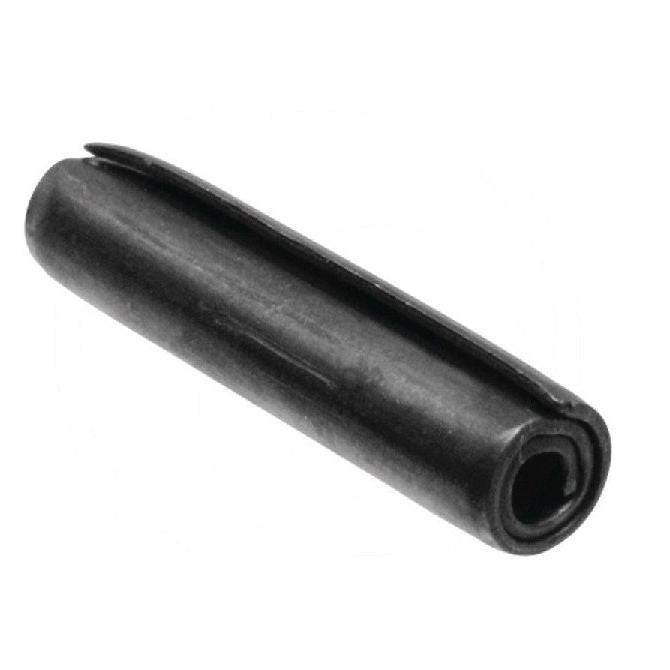

Coiled Pins - 4x40 - 4.00 - 4.12 - High Carbon Steel Pin
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleMaster Pins Catalogue PDF
Roll Pins
Order 50 or more packs of 10 (500 pcs)
for $10.59 AUD per 10 pack
5/32x1 inch Pin - 4x40 - 4.00 - 4.12 Coiled Pins - High Carbon Steel - Sold per pack of 10:
Base Category: Pins - Coiled
Top Level Category: Pins - Coiled - Steel - Standard Duty
Product Details
Additional stock available from USA subject to Prior Sale = 750
Nominal Hole Diameter: 4.00mm
(4.00mm is 0.157 in.)
High Carbon Steel
- Nominal Hole Diameter: 4.00mm
(4.00mm is 0.157 in.)
- Length: 40.00mm
+/- 0.50
(40.00mm is 1.575 in.)
- Drill Size: 4.00 - 4.12mm
(4.00 - 4.12mm is 0.157 in.)
- Loose Diameter: 4.20 - 4.40mm
- ISO: Standard Duty ISO8750 / ASME B18.8.3M
- Hardness: RC 46-53 (HV 420 to 545)
- Double Shear Strength Min.: 10Kn
Brand: MBA
Country of Origin: DE
Product Compliance and Data
Similar to
- Huyett® SPCM-040-040
- SEP4-40
- SEP440
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
PSP040040C, PSP040
