P-634-AGL (Each)

Name: Plastic Bearings - 4x16x5 mm - Acetal with Glass Balls Bearing - P-634-AGL
Brand: KMS
SKU: P634AGL
Price: 21.23 AUD
Availability: BackOrder

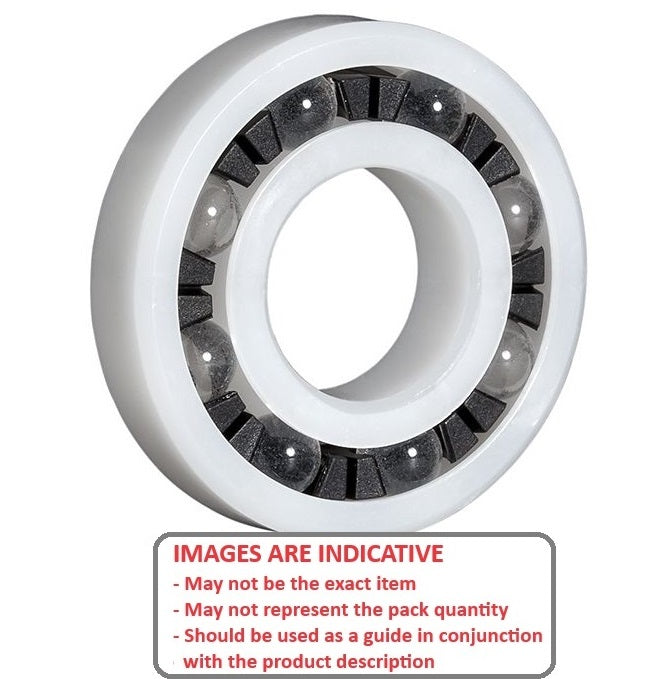

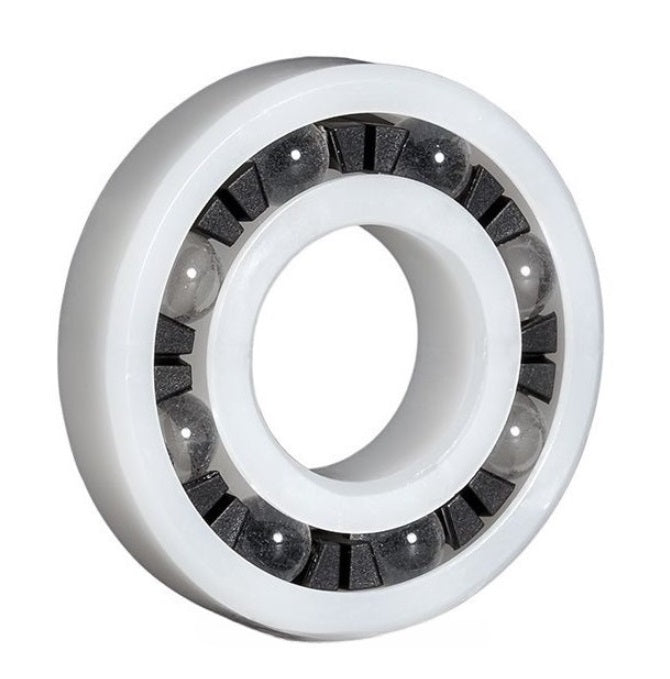

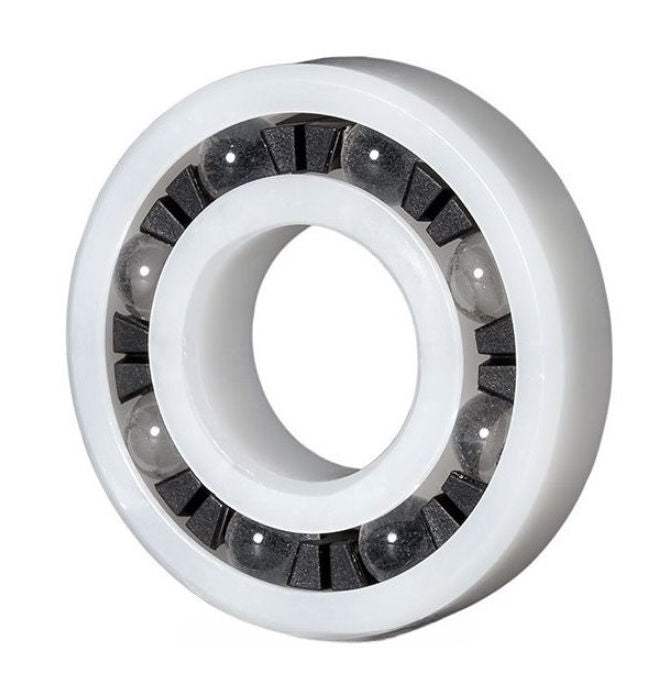

Plastic Bearings - 4x16x5 mm - Acetal with Glass Balls Bearing

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

KMS

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale

Category: Bearings - Plastic - Acetal - Single Row - Glass Balls

Additional resources:
Tolerances
Plastic Bearings PDF Catalogue
Shafting

Price:

$21.23 AUD

~~$25.47 AUD~~ $21.23 AUD

Each

Excludes GST and overseas Taxes & Duties

Backorder
Order 50 or more for $19.11 AUD

Backorder now! Backorders are expected before Mar 19, 2026

Quantity

Base Category: Bearings - Plastic

Top Level Category: Bearings - Plastic - Acetal - Single Row - Glass Balls

Product Details

ID (d): 4.000mm
_{+ 0.076 / - 0.000}
_{(4.000mm is 0.157 in.)}

Acetal with Glass Balls

ID (d): 4.000mm
_{+ 0.076 / - 0.000}
_{(4.000mm is 0.157 in.)}
OD (D): 16.000mm
_{+ 0.000 / - 0.076}
_{(16.000mm is 0.63 in.)}
Width (B): 5.000mm
_{+ 0.127 / - 0.000}
_{(5.000mm is 0.197 in.)}
Max RPM in Air: 2352
Notes: Unlubricated
Type: Radial
Dynamic Load Rating: 11.8Kg
Static Load Rating: 7.7Kg

Brand: KMS
Country of Origin: US

Product Compliance and Data

Similar to

KMS A634-G
AGL634
A634G

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
