DP040-014-304-3 (PK-500)

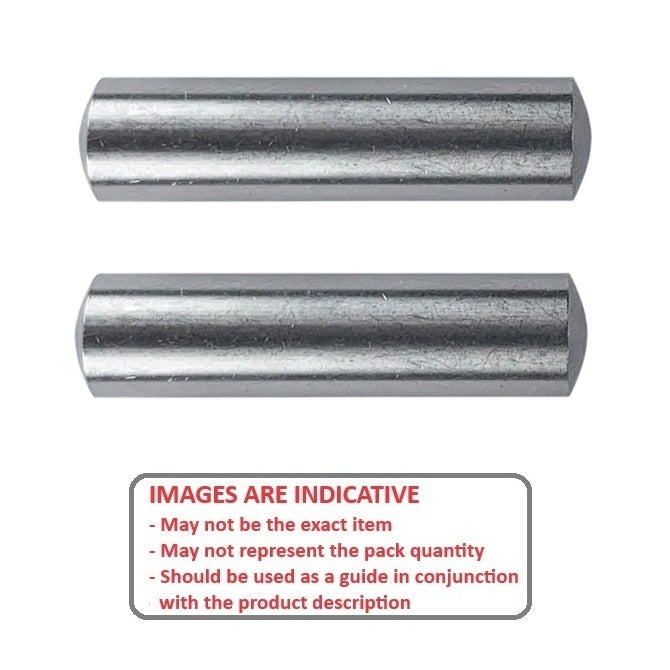

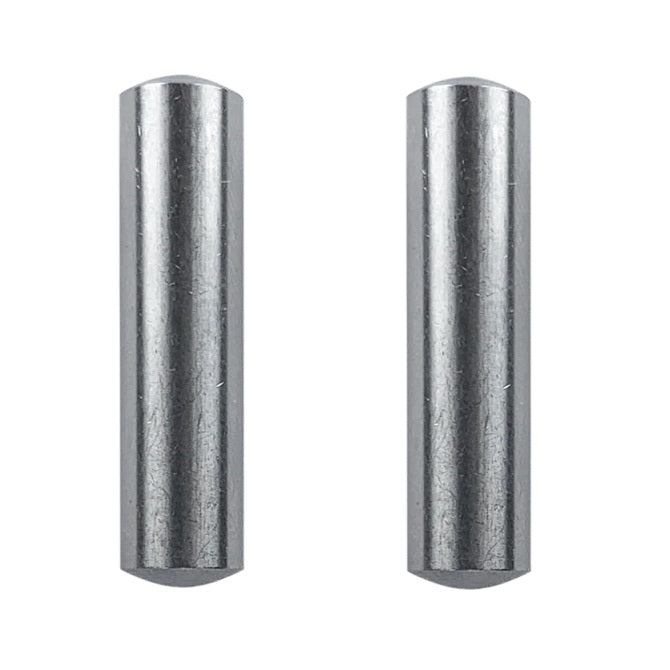

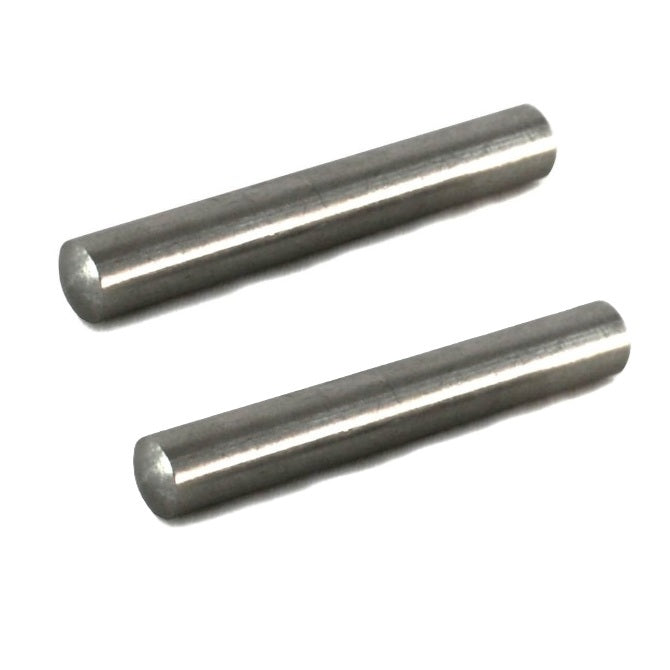

Dowel Pins - 4x14x15.2 mm Standard - Stainless Steel 304 Similar to A2 or 18-8 HRB80 Pin
ENQUIRE
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Dowel Pins Catalogue PDF
Master Pins Catalogue PDF
5/32 inch Pin - 4x14x15.2 mm Dowel Pins - Stainless Steel 304 (Similar to A2, 18-8) HRB80 - Sold per pack of 500:
Base Category: Pins - Dowel
Top Level Category: Pins - Dowel - Standard - Rounded Ends - 303-304 Stainless
Product Details
Diameter (D): 4.000mm+ 0.004 / + 0.012
(4.000mm is 0.157 in.)
Stainless Steel 304 (Similar to A2, 18-8) HRB80
- Diameter (D): 4.000mm
+ 0.004 / + 0.012
(4.000mm is 0.157 in.)
- Length (L): 14.00mm
+/- 0.350
(14.00mm is 0.551 in.)
- Approx. Overall Length: 15.20mm
+/- 0.350
(15.20mm is 0.598 in.)

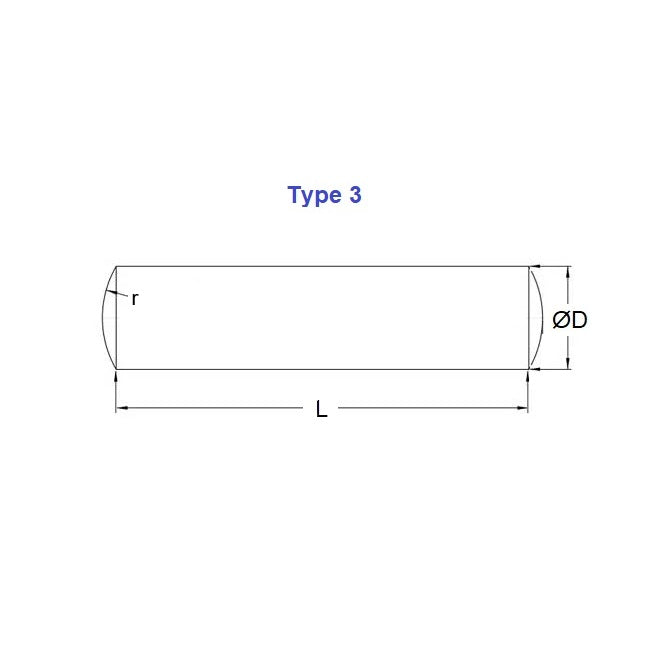

- Type: 3 (Rounded Ends)
- Standard: DIN 7
Brand: NoCor
Country of Origin: TW
Product Compliance and Data
Similar to
- MD0007MX0040X014
- DP0400143043
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
DP0400143043, DP040014
