DP040-014-316-2 (PK-5)

Dowel Pins - 4x14 Standard - Stainless Steel 316 Similar to A4, 18-10 Pin

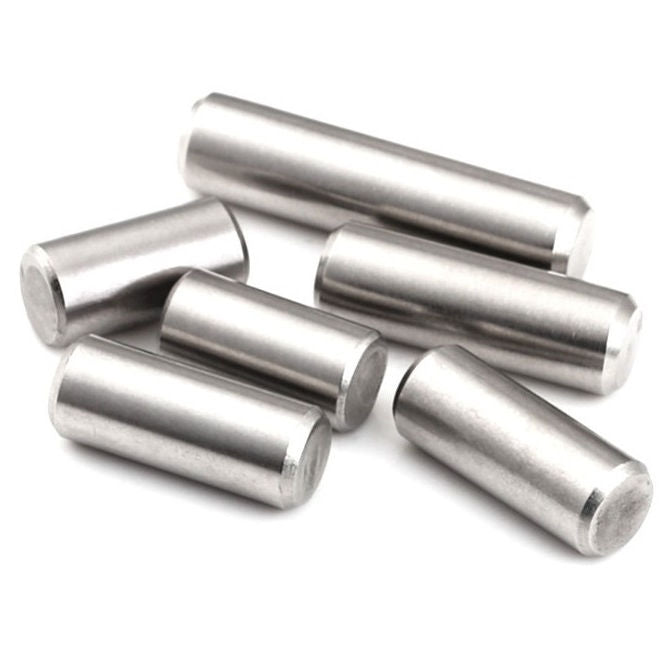

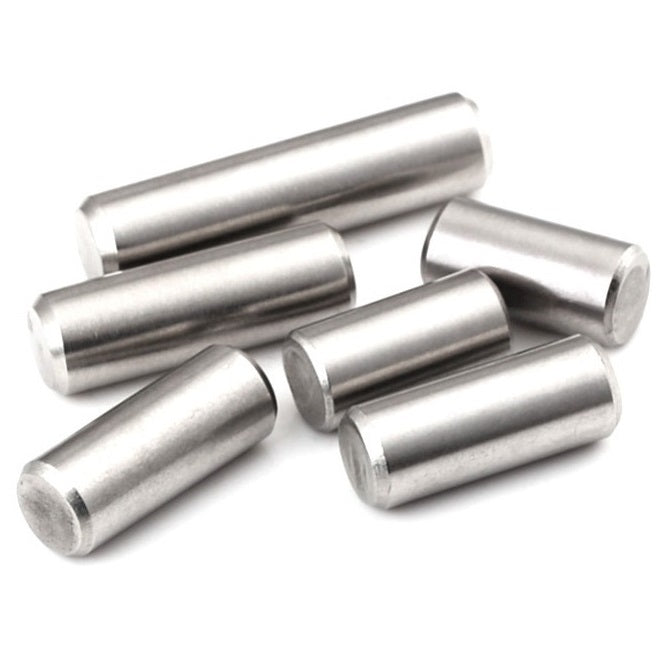

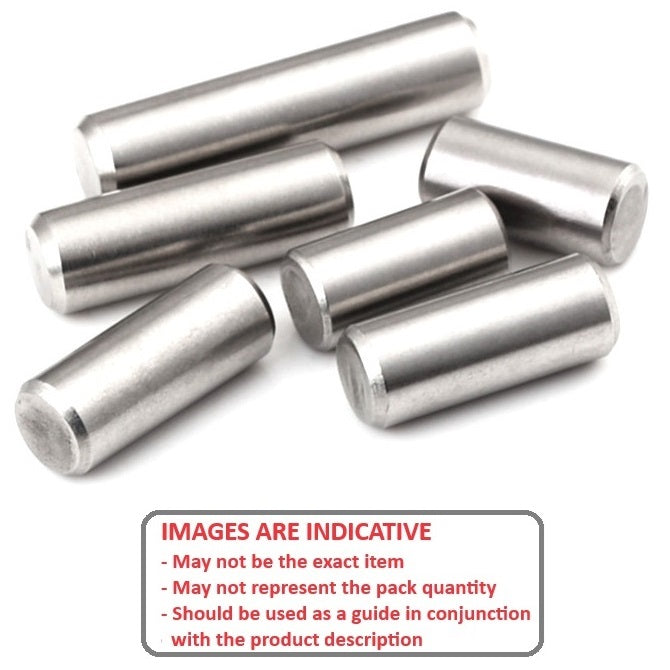

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Dowel Pins - 4x14x14 mm - Stainless Steel 316 Similar to A4, 18-10
1 4

NoCor

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Dowel Pins Catalogue PDF
Master Pins Catalogue PDF
Price:
$5.95 AUD
$5.95 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
 Qty: 120 packs (600 pcs) available now

Order 50 or more packs of 5 (250 pcs)
for $5.36 AUD per 5 pack
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Aug 03, 2026

Base Category: Pins - Dowel

Top Level Category: Pins - Dowel - Standard - Chamfered Ends - 316 Stainless

Product Details

Diameter (D): 4.000mm
+ 0.004 / + 0.012
(4.000mm is 0.157 in.)

Stainless Steel 316 (Similar to A4, 18-10)
  • Diameter (D): 4.000mm
    + 0.004 / + 0.012
    (4.000mm is 0.157 in.)
  • Length (L): 14.00mm
    +/- 0.350
    (14.00mm is 0.551 in.)
  • Approx. Overall Length: 14.00mm
    +/- 0.350
    (14.00mm is 0.551 in.)

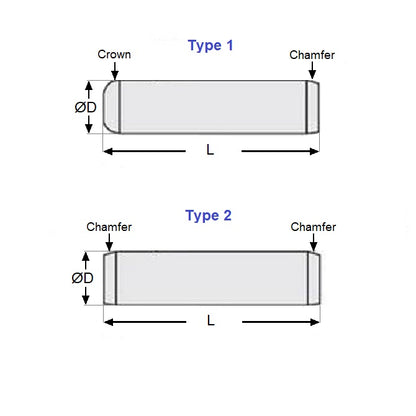

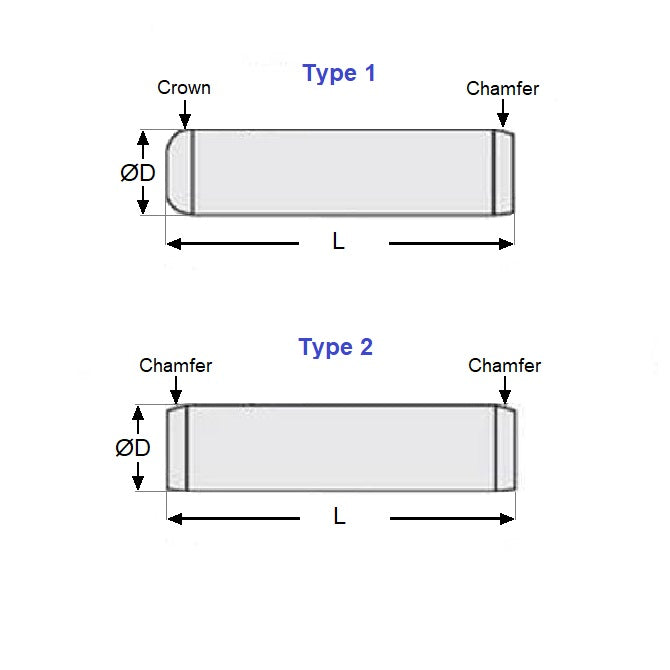

  • Type: 2 (Chamfer Both Ends)
  • Chamfer: 0.63 x 15 Deg
  • Standard: Based on ISO 2338

Brand: NoCor
Country of Origin: GB

Product Compliance and Data
