RP040-0120-Z (PK-20)

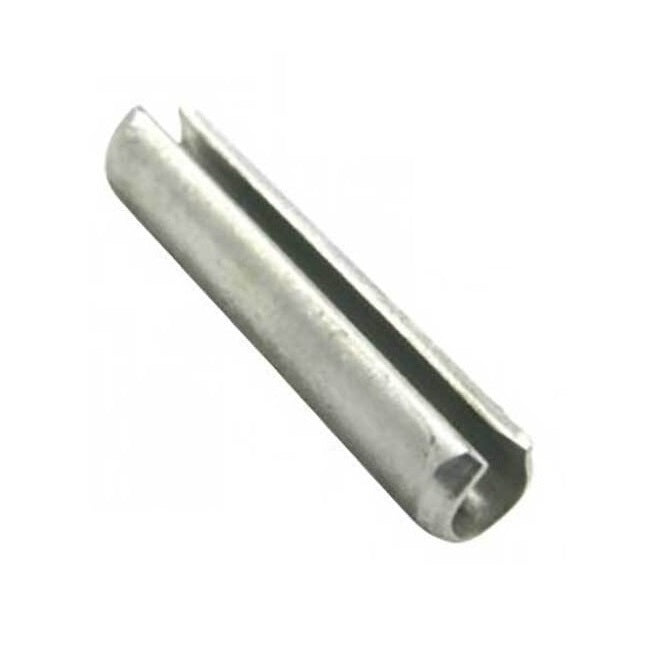

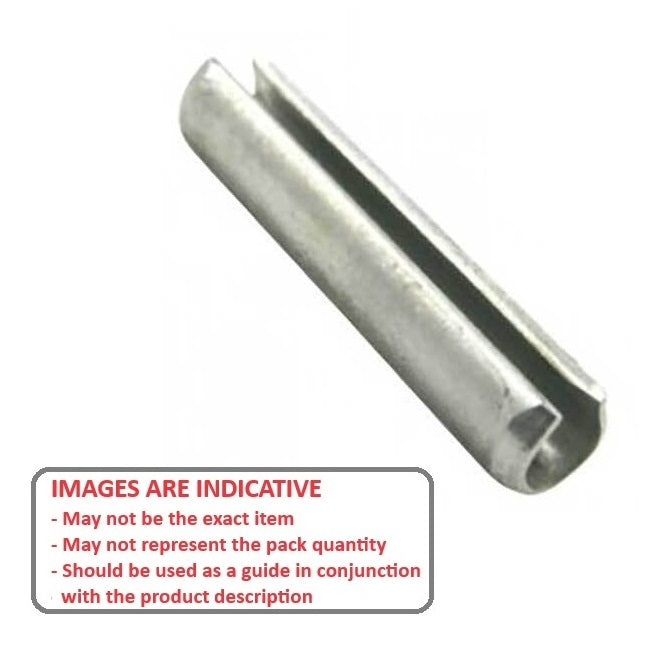

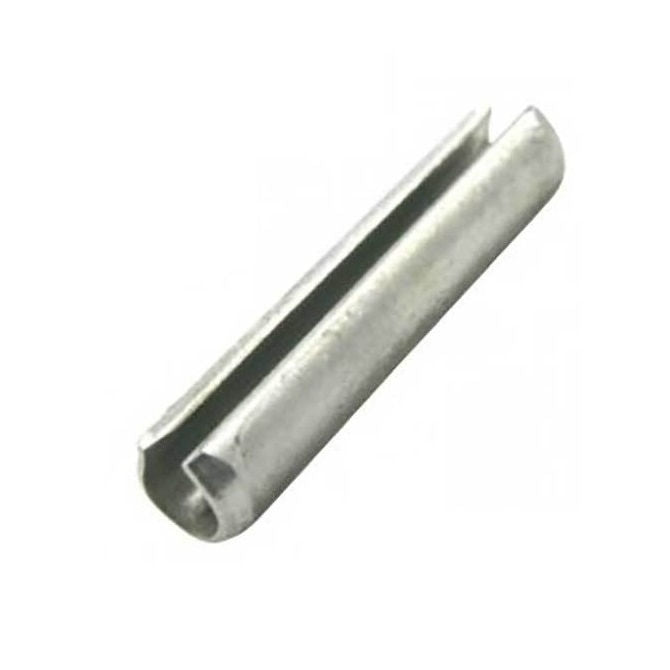

Roll Pins - 4x12x4.4 mm - Carbon Spring Steel Zinc Plated Pin
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleMaster Pins Catalogue PDF
Roll Pins Catalogue PDF
Coiled Pins
Order 50 or more packs of 20 (1000 pcs)
for $3.47 AUD per 20 pack
Special Offer: If you purchase the remaining quantity of this item, you will receive the bulk price.
Couldn't load pickup availability
5/32 inch Pin - 4x12x4.4 mm Roll Pins - Carbon Spring Steel Zinc Plated - Sold per pack of 20:
Base Category: Pins - Roll
Top Level Category: Pins - Roll - Zinc Plated
Product Details
Additional stock available from USA subject to Prior Sale = 1559
Nominal Diameter (D): 4.00mm
(4.00mm is 0.157 in.)
Carbon Spring Steel Zinc Plated
- Nominal Diameter (D): 4.00mm
(4.00mm is 0.157 in.)
- Length (L): 12.00mm
(12.00mm is 0.472 in.)
- Free Diameter: 4.40mm
(4.40mm is 0.173 in.)
- Thickness (S): 0.80mm
- Chamfer Length (cL): 0.30-1.20mm
- Chamfer Diameter (cD): 3.9mm
- Standard: B18.8.4M
Brand: MBA
Country of Origin: TW
Product Compliance and Data
Similar to
- NoCor® SPMZ-040-012
- Huyett® SPMZ-040-012-A
- NoCor® SPMZ-040-012-A
- Brighton Best® V81216
- SPMZ040012
- SPMZ040012A
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
RP0400120Z, RP0400120
