CCE-04763-CZY (PK-6)

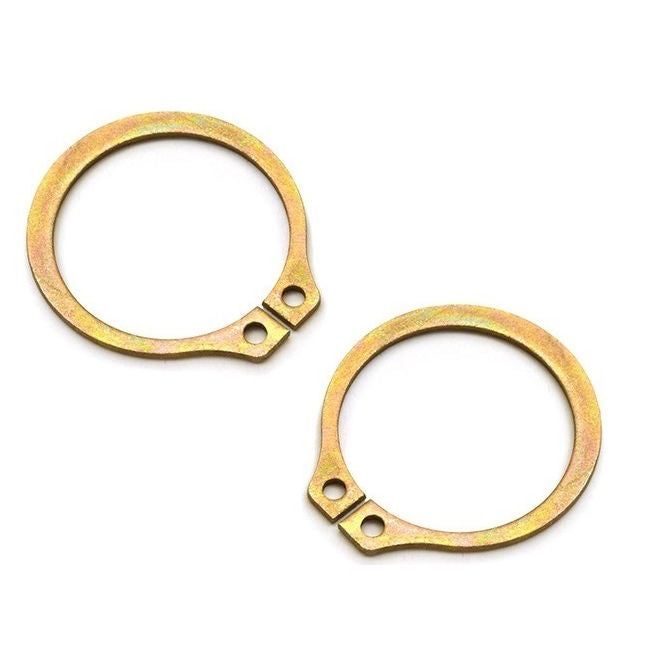

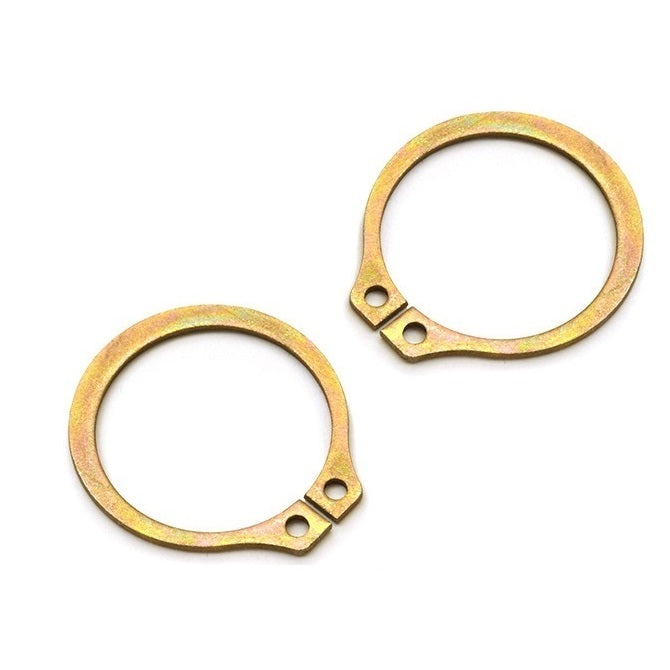

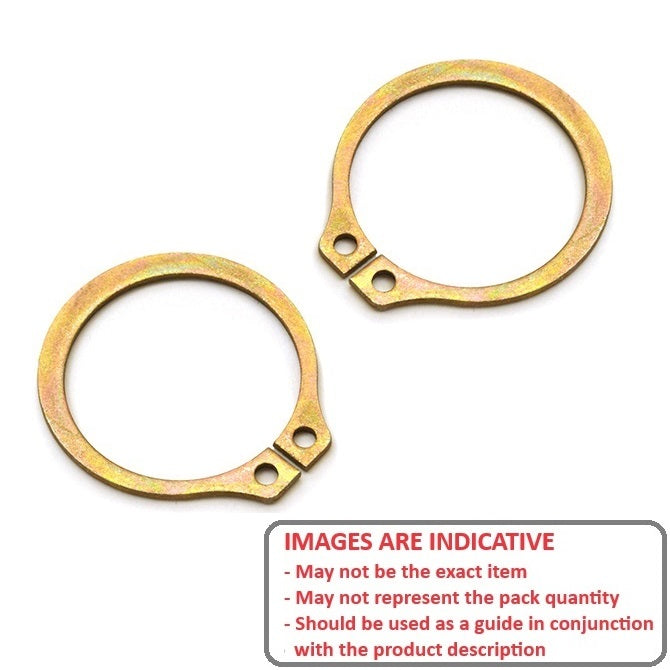

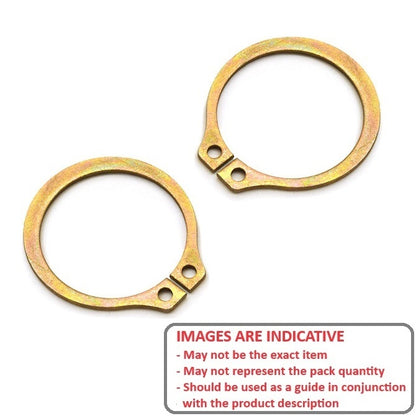

External Retaining Rings - 47.63x1.57x44.9 mm Circlips - Carbon Steel Zinc Plated Circlip
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits
Order 50 or more packs of 6 (300 pcs)
for $10.85 AUD per 6 pack
Base Category: Retaining Rings - External
Top Level Category: Retaining Rings - External - Circlips - Standard - Zinc Plated
Product Details
Additional stock available from USA subject to Prior Sale = 2145
Shaft Diameter (Ds): 47.63mm
(47.63mm is 1.875 in.)
Carbon Steel Zinc Plated
- Shaft Diameter (Ds): 47.63mm
(47.63mm is 1.875 in.)
- Clip Thickness (T): 1.57mm
+/- 0.076
(1.57mm is 0.062 in.)
- Groove Dia. (Dg): 44.90mm
+/- 0.127
(44.90mm is 1.768 in.)
- Approx. Loose Circlip ID (A): 44.10mm
- Groove Width (W): 1.70mm
- Standard: MIL-16624
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- ALTPART
- 98410A147
- Huyett® SH-187-ZD
- NoCor® SH-187-ZD
- SH187ZD
- N14000188AZD
- N1400-0188AZD
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
CCE04763CZY, CCE04763
