CCI-04200H-C (PK-250)

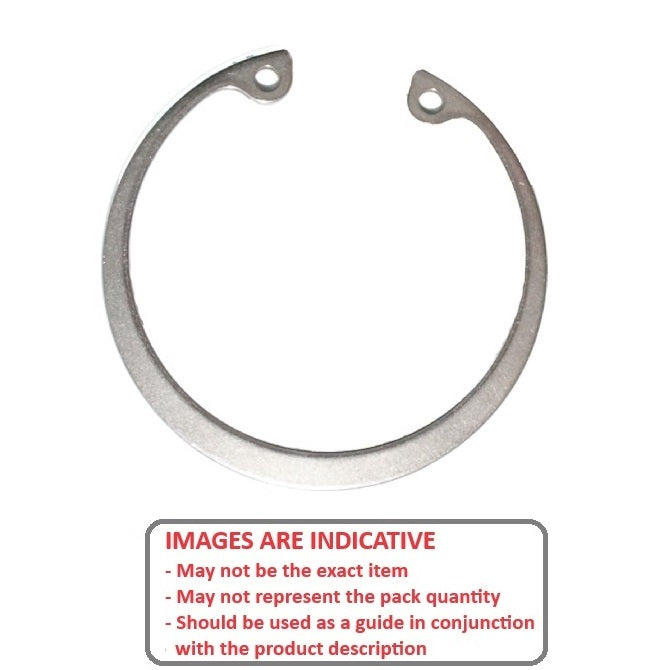

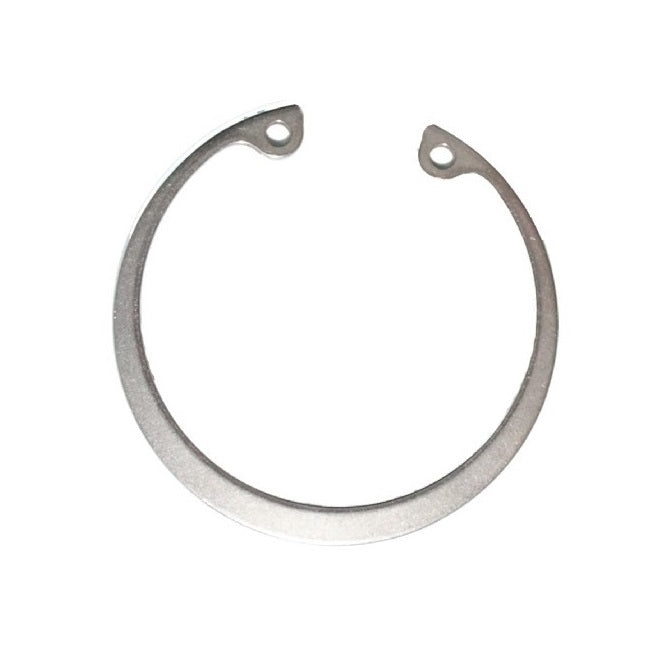

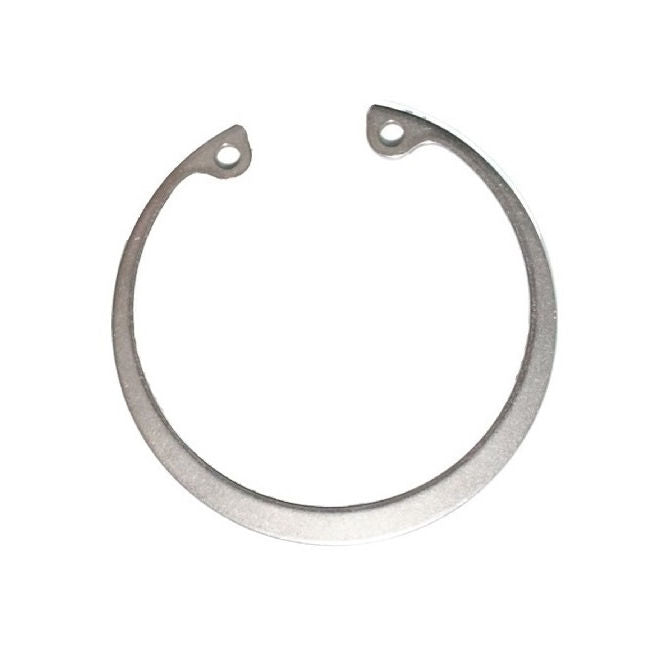

Internal Retaining Rings - 42x2x44.45 mm Circlips - Carbon Steel Circlip
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits
Order 50 or more packs of 250 (12500 pcs)
for $297.37 AUD per 250 pack
1x1-3/4 inch Circlip - 42x2x44.45 mm Internal Retaining Rings - Carbon Steel - Sold per pack of 250:
Base Category: Retaining Rings - Internal
Top Level Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Product Details

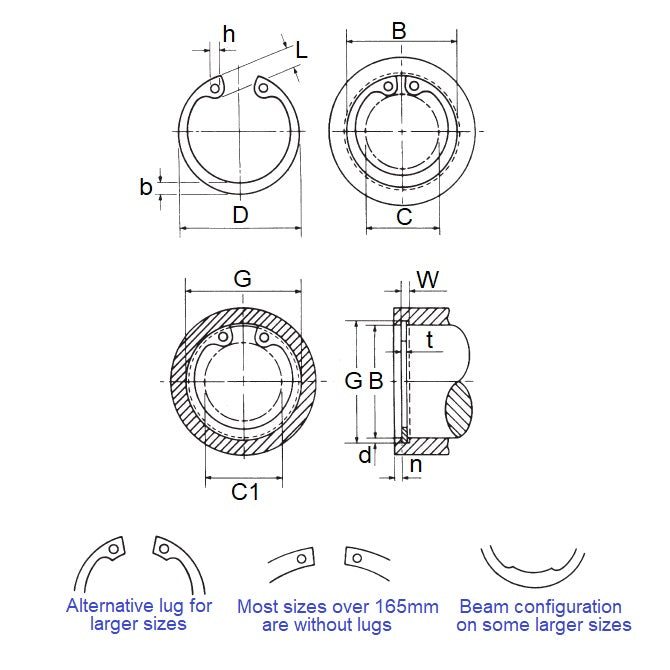

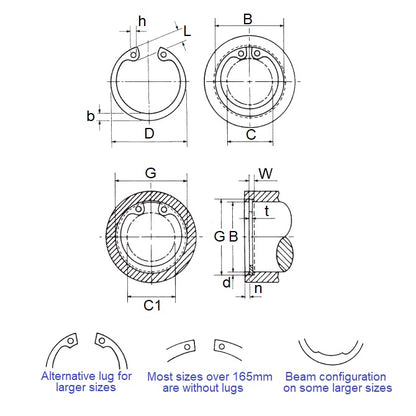

Housing Bore (B): 42.00mm(42.00mm is 1.654 in.)
Carbon Steel
- Housing Bore (B): 42.00mm
(42.00mm is 1.654 in.)
- Clip Thickness (T): 2.00mm
+ 0.00 / - 0.06
(2.00mm is 0.079 in.)
- Groove Dia. (Dg): 44.45mm
+ 0.25 / - 0.00
(44.45mm is 1.75 in.)
- Approx. Loose Circlip OD (Dr): 45.50mm
+ 0.90 / - 0.39
- Groove Width (W): 2.15mm
+ 0.10 / - 0.00
- Standard: DIN472
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Huyett® DHOR-042
- NoCor® DHOR-042
- Seeger® JS42X2
- D13600420
- D1360-0420
- DHOR042
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
CCI04200HC, CCI04200H
