T-0400-0780-G-51308 (Each)
Thrust Ball Bearings - 40x78x26 mm / 42 mm Grooved - Chrome Steel Bearing
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Thrust Bearings PDF Catalogue
Shafting
Order 50 or more
for $37.19 AUD Each
40x78x26 mm / 42 mm Thrust Ball Bearings - Chrome Steel - Sold per Each:
Base Category: Bearings - Thrust Ball
Top Level Category: Bearings - Thrust Ball - Grooved - Chrome Steel

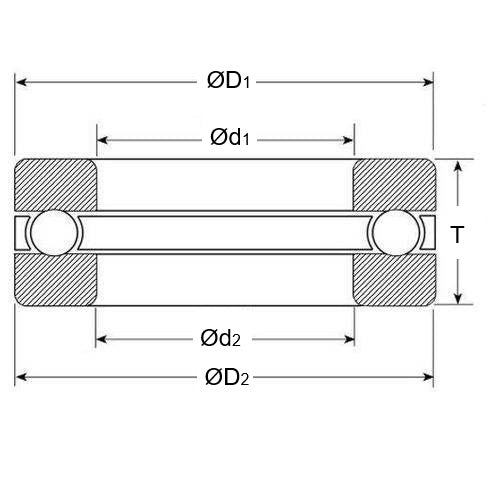

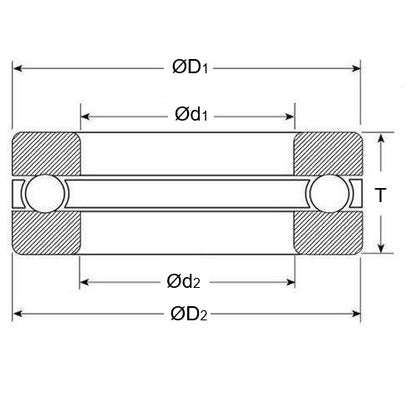

Product Details
Shaft Diameter (d1): 40.000mm(40.000mm is 1.575 in.)
Chrome Steel
- Shaft Diameter (d1): 40.000mm
(40.000mm is 1.575 in.)
- O.D. (D1): 78.000mm
(78.000mm is 3.071 in.)
- Thickness (T): 26.000mm
(26.000mm is 1.024 in.)
- Bore (d2): 42.000mm
- OD (D2): 78.000mm
- Dynamic Load Capacity: 6210kgf
- Cage Type: Steel
Brand: MBA
Country of Origin: JP
Product Compliance and Data
Similar to
- Nachi® 51308
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
T04000780G51308, T04000780
