PC048-0254-6 (50 Pcs)

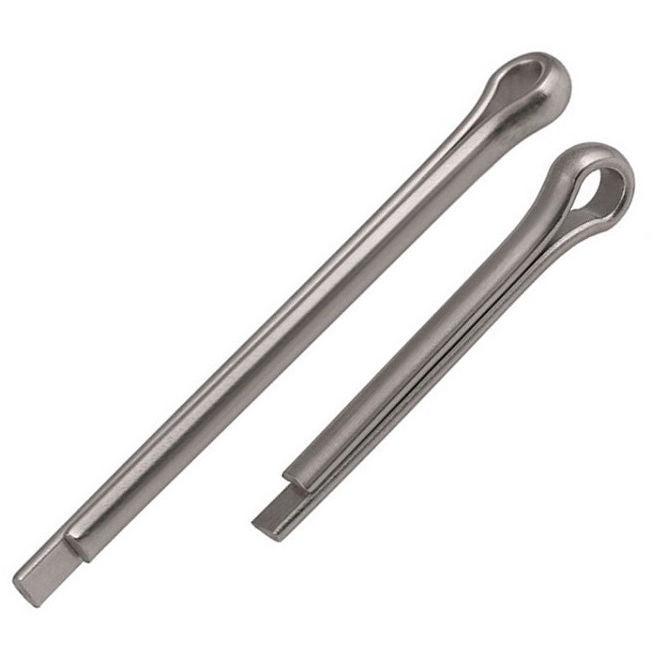

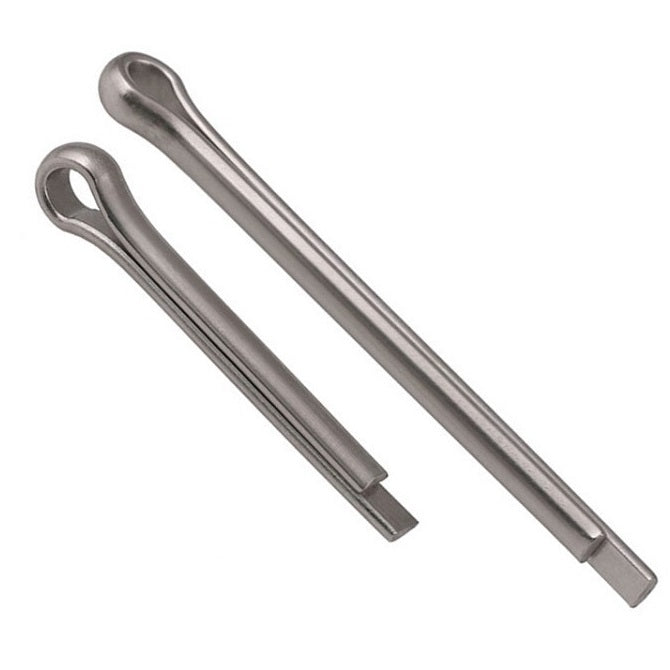

Split Pins - 4.8x25x4.3 mm - Stainless Steel 316 Similar to A4, 18-10 Pin

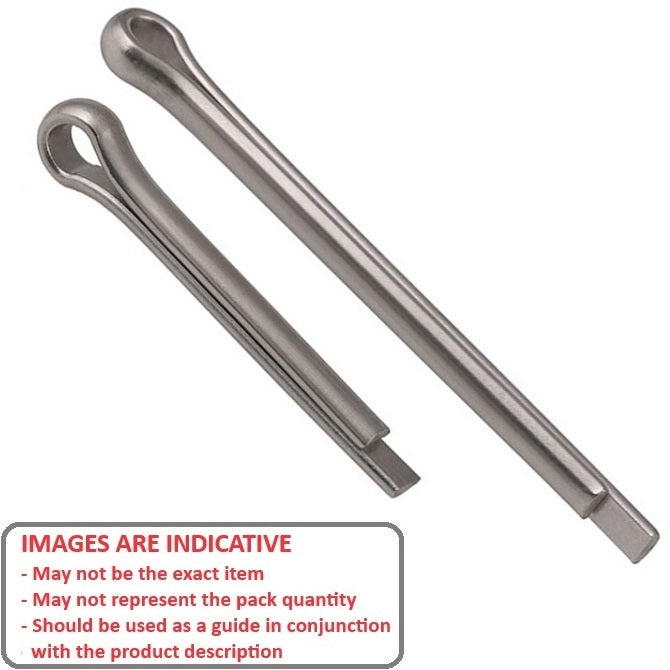

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Split Pins - 4.8x25x4.3 mm - Stainless Steel 316 Similar to A4, 18-10
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Master Pins Catalogue PDF
Assortment Kits
R-Clips
Price:
$22.77 AUD
$27.33 AUD $22.77 AUD
per 50
Backorder
Order 50 or more pack (2500 pcs) for $20.49 AUD per 50
Backorder now! Backorders for more than the stock quantity are expected before Sep 20, 2025

Base Category: Pins - Split

Top Level Category: Pins - Split - Stainless Steel

Product Details


Additional stock available from USA subject to Prior Sale = 4877

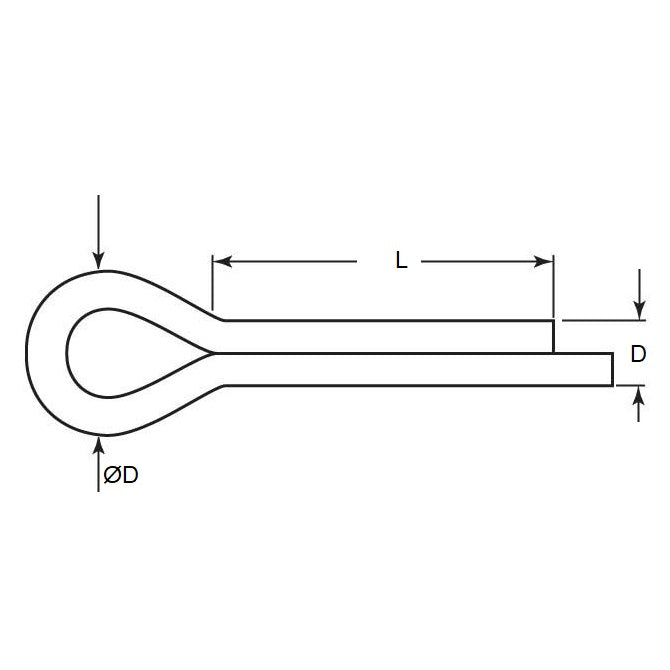

Maximum Hole Diameter: 4.8mm
(4.8mm is 0.189 in.)

Stainless Steel 316 (Similar to A4, 18-10)
  • Nom. Pin Length (L): 25.0mm
    (25.0mm is 0.984 in.)
  • Nom. Pin Diameter (D): 4.3mm
    (4.3mm is 0.169 in.)
  • Nom. Overall Length: 30mm

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • ALTPART
  • 98355A230
  • NoCor CPS16-187-1000
  • CPS161871000

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
