CLP-048-0091-S4 (10 Pcs)

Clevis Pins - 4.76x9.13x12.7 mm Pin Locking - Stainless Steel 300 Series

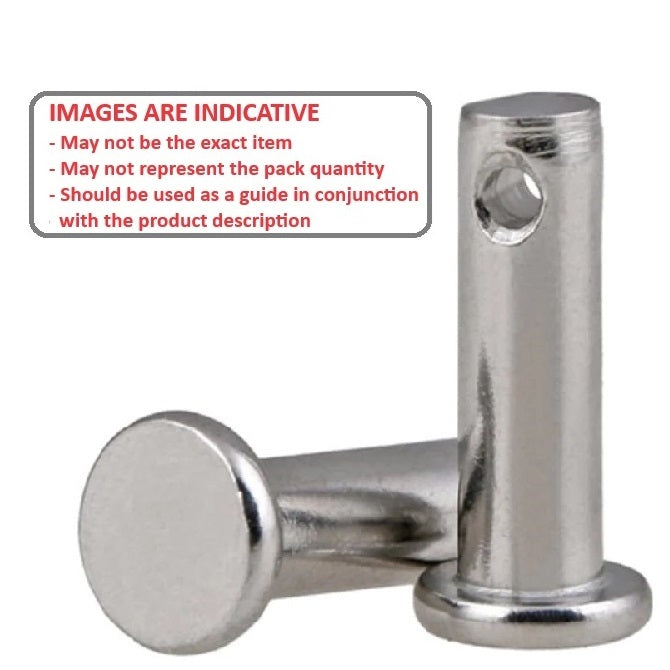

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

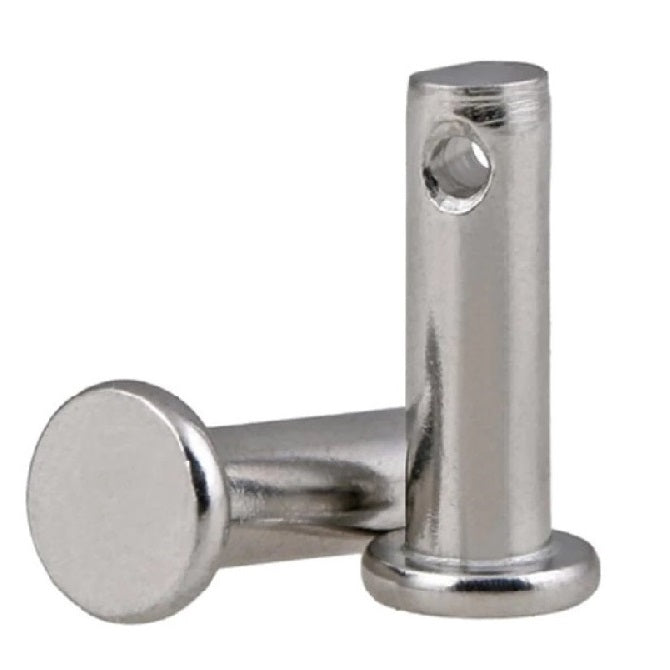

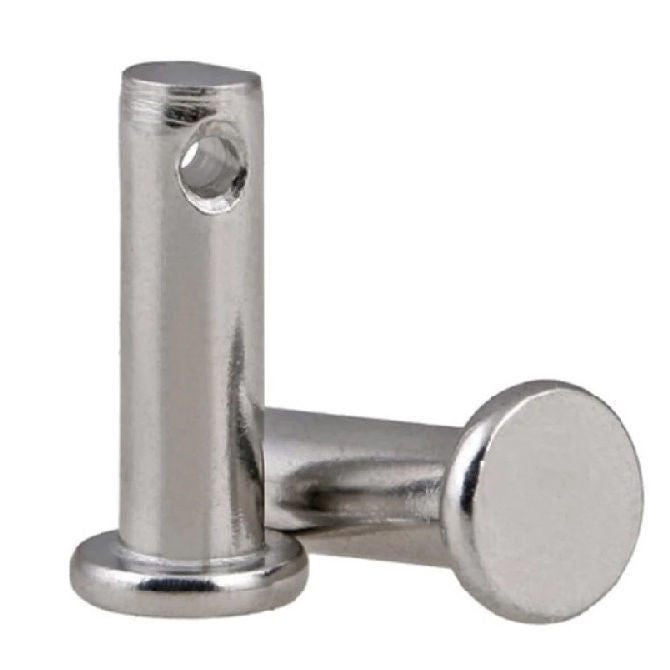

  • Clevis Pins - 4.76x9.13x12.7 mm - Stainless Steel 300 Series
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Master Pins Catalogue PDF
R-Clips
Split Pins
Price:
$8.14 AUD
$8.14 AUD
per 10
Backorder
Order 50 or more pack (500 pcs) for $7.33 AUD per 10
More stock due Oct 07, 2025: Qty 15 (150 pcs) Backorder now! If you wish to order more than 15, delivery is expected before Oct 07, 2025

Base Category: Pins - Clevis

Top Level Category: Pins - Clevis - Pin Locking - Stainless Steel 300 Grade

Product Details


Additional stock available from USA subject to Prior Sale = 11805

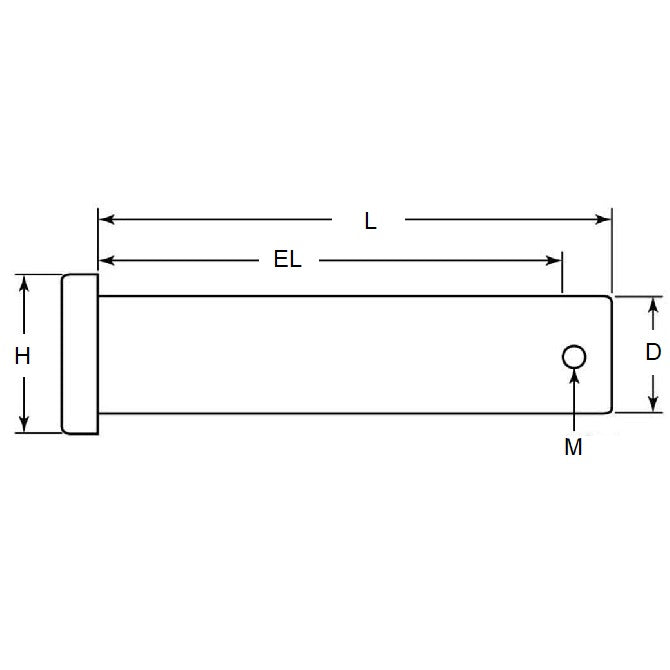

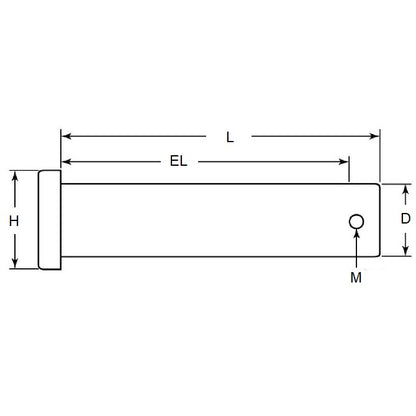

Nominal Pin Diameter (D): 4.76mm
- 0.04 / - 0.16
(4.76mm is 0.187 in.)

Stainless Steel 300 Series
  • Grip Length (EL): 9.13mm
    + 0.51 / - 0.00
    (9.13mm is 0.359 in.)
  • Nom. Length (L): 12.70mm
    + 0.51 / - 0.00
    (12.70mm is 0.5 in.)
  • Ret. Pin Dia. (M): 2.0mm
  • Suitable R-Clip: RCL-012-015-S4

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • NoCor CLPS-0187-0500
  • NoCor CLPS-0187-0500/B
  • CLPS01870500/B
  • CLP-2S
  • CLP2S

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
