PSP-048-025H-C (5 Pcs)

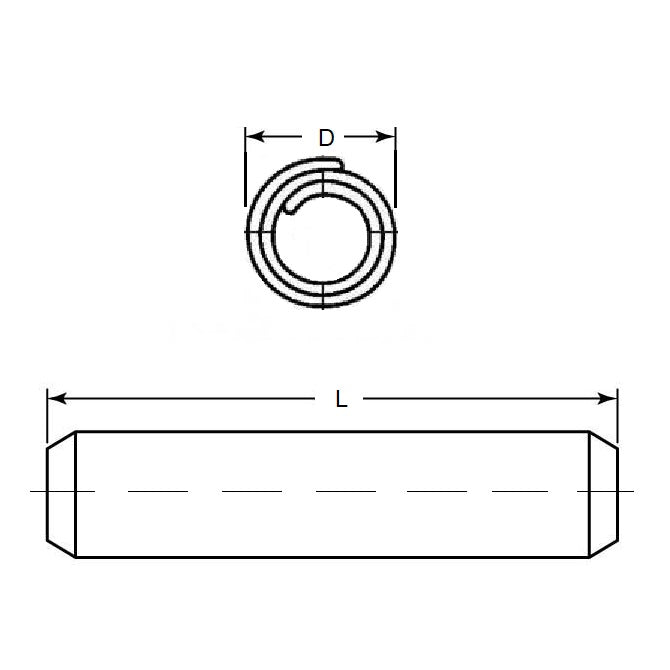

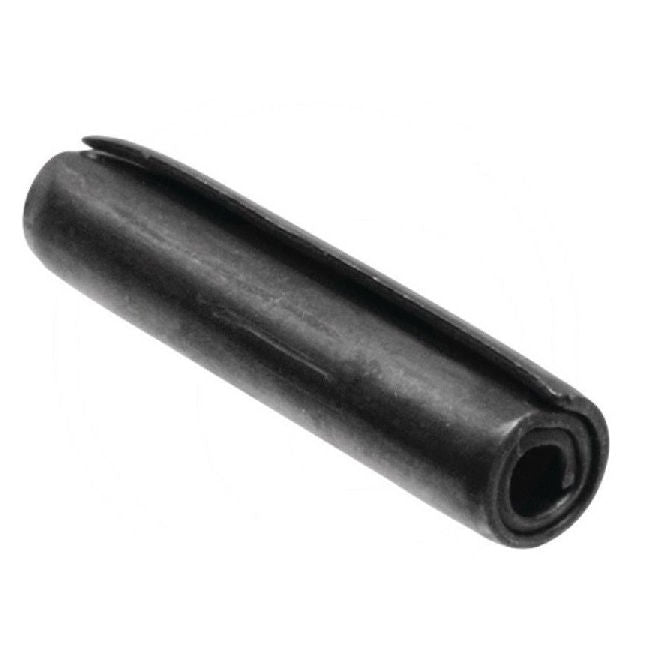

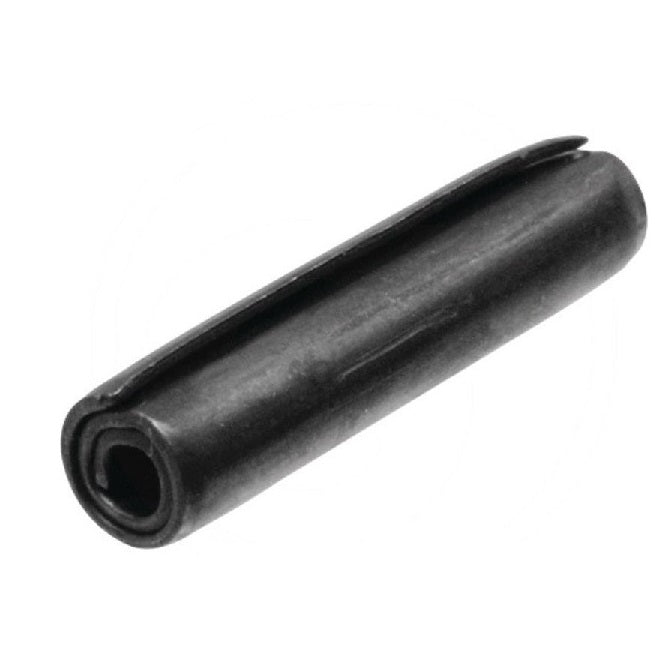

Coiled Pins - 4.76x25.4 - 4.76 - 4.88 - High Carbon Steel

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Coiled Pins - 4.76x25.4 - 4.76 - 4.88 - Carbon Steel - High Carbon
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Collection, Retail, Distributors, Wholesale Additional resources:
Master Pins Catalogue PDF
Roll Pins
Price:
$5.32 AUD
$5.32 AUD
per 5
Qty: 13 packs (65 pcs) available now
Order 50 or more packs (250 pcs) for $4.79 AUD per 5
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Aug 13, 2025

Base Category: Pins - Coiled

Top Level Category: Pins - Coiled - Steel - Heavy Duty

Product Details:


Additional stock available from USA subject to Prior Sale = 1551

Nominal Hole Diameter: 4.76mm
(4.76mm is 0.187 in.)

High Carbon Steel
  • Length: 25.40mm
    +/- 0.50
    (25.40mm is 1 in.)
  • Drill Size: 4.76 - 4.88mm
    (4.76 - 4.88mm is 0.187 in.)
  • Loose Diameter: 4.93 - 5.13mm
  • ISO: Heavy Duty ASME B18.8.2 / ISO 8748
  • Hardness: RC 46-53 (HV 420 to 545)

Brand: MBA
Country of Origin: US

Product Compliance and Data

Alternative Parts Include:

  • ALTPART 95755A324
  • NoCor SPC-187-1000H
  • SPC1871000H

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
