CLP-048-0220-CZ (10 Pcs)

Clevis Pins - 4.76x22.02x25.4 mm Pin Locking - Zinc Plated Low Carbon Steel

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Clevis Pins - 4.76x22.02x25.4 mm - Zinc Plated Low Carbon Steel
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Master Pins Catalogue PDF
R-Clips
Split Pins
Price:
$6.86 AUD
$6.86 AUD
per 10
Qty: 10 packs (100 pcs) available now
Order 50 or more packs (500 pcs) for $6.17 AUD per 10
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Sep 22, 2025

Base Category: Pins - Clevis

Top Level Category: Pins - Clevis - Pin Locking - Zinc Plated

Product Details


Additional stock available from USA subject to Prior Sale = 8862

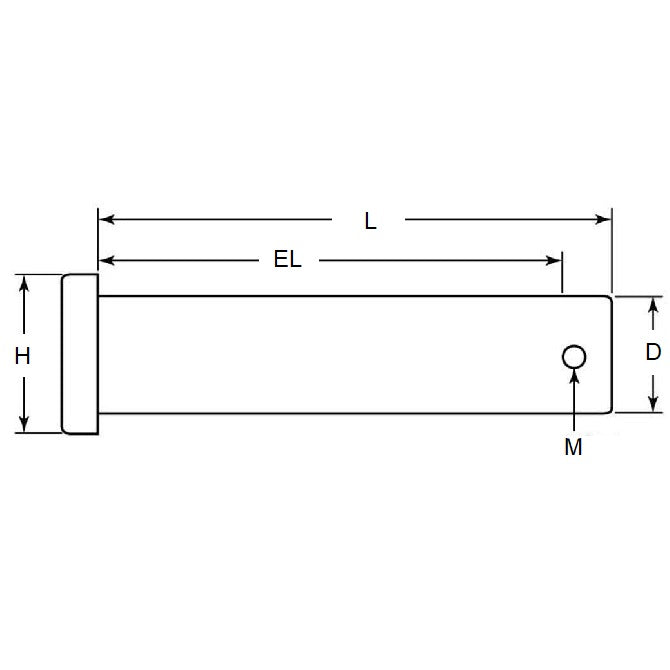

Nominal Pin Diameter (D): 4.76mm
- 0.04 / - 0.16
(4.76mm is 0.187 in.)

Zinc Plated Low Carbon Steel
  • Grip Length (EL): 22.02mm
    + 0.51 / - 0.00
    (22.02mm is 0.867 in.)
  • Nom. Length (L): 25.40mm
    + 0.51 / - 0.00
    (25.40mm is 1 in.)
  • Ret. Pin Dia. (M): 2.0mm
  • Suitable R-Clip: RCL-012-015-Z

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • ALTPART
  • 97245A119
  • NoCor CLPZ-0187-1000/B
  • NoCor CLPZ-0187-1000-B
  • CLPZ01871000B
  • CLPZ01871000/B
  • CLP0480220Z

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
