DP048-064-CH-1 (100 Pcs)

Dowel Pins - 4.763x63.5 Standard - Steel Alloy - Heat Treated and Ground Rc 58-62 Pin

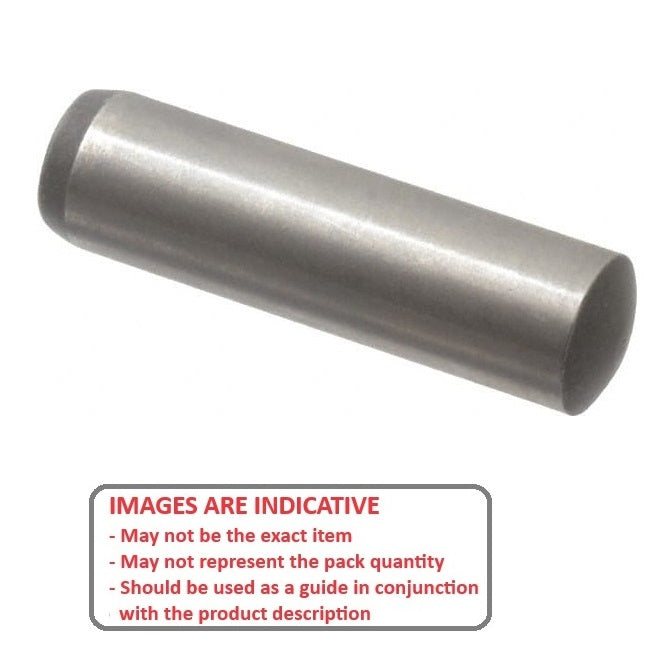

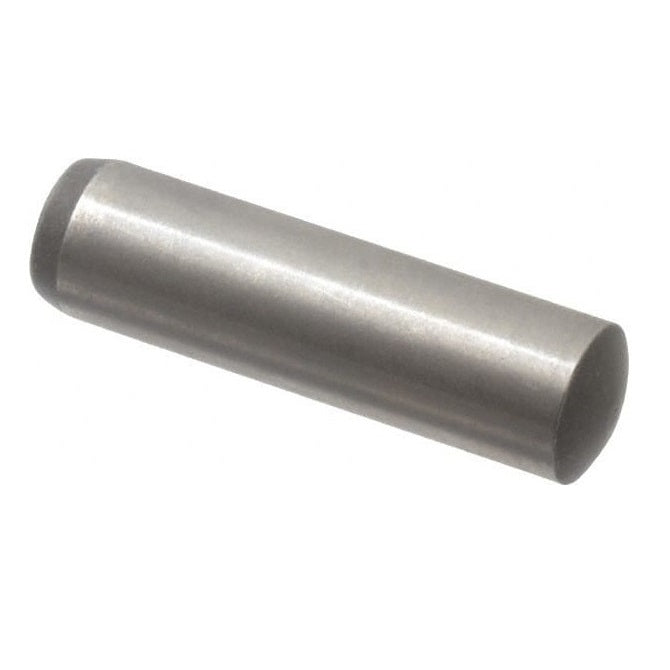

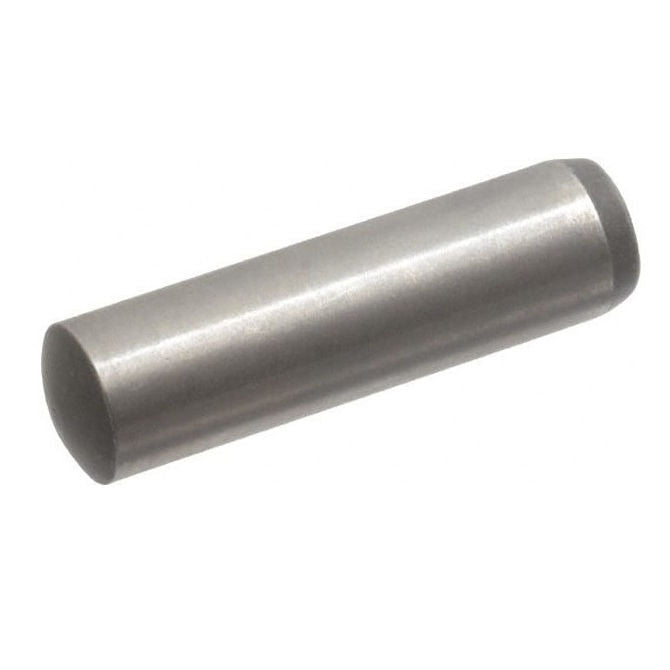

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Dowel Pins - 4.763x63.5x63.5 mm - Steel Alloy - Heat Treated and Ground Rc 58-62
1 4

NoCor

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Dowel Pins Catalogue PDF
Master Pins Catalogue PDF
Price:
$141.32 AUD
$169.58 AUD $141.32 AUD
Excludes GST and overseas Taxes & Duties
 per 100
Backorder
Order 50 or more pack (5000 pcs) for $127.19 AUD per 100
Backorder now! Backorders for more than the stock quantity are expected before Sep 28, 2025

Base Category: Pins - Dowel

Top Level Category: Pins - Dowel - Standard - Chamfered Ends - Carbon Steel

Product Details

Diameter (D): 4.763mm
+ 0.004 / + 0.012
(4.763mm is 0.188 in.)

Steel Alloy - Heat Treated and Ground Rc 58-62
  • Diameter (D): 4.763mm
    + 0.004 / + 0.012
    (4.763mm is 0.188 in.)
  • Length (L): 63.50mm
    +/- 0.600
    (63.50mm is 2.5 in.)
  • Approx. Overall Length: 63.50mm
    +/ - 0.600
    (63.50mm is 2.5 in.)

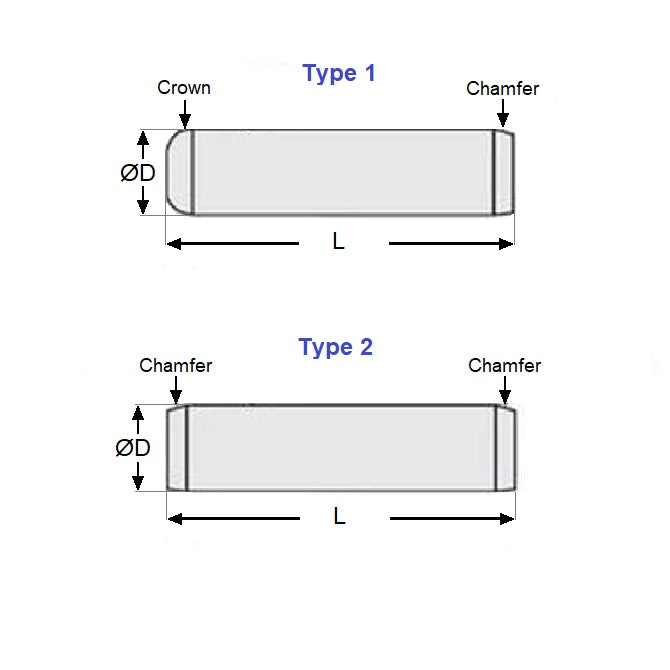

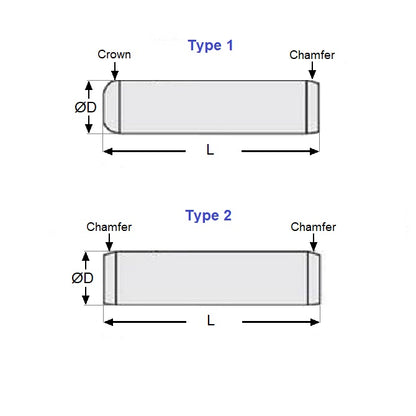

  • Type: 1 (Chamfer One End)
  • Standard: Based on DIN 6325

Brand: NoCor
Country of Origin: TW

Product Compliance and Data

Similar to

  • Brighton Best 241153

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
