P-R1106-KGL (Each)

Name: Plastic Bearings - 4.763x15.875x4.978 mm - PVDF with Glass Balls Bearing - P-R1106-KGL
Brand: KMS
SKU: PR1106KGL
Price: 101.68 AUD
Availability: BackOrder

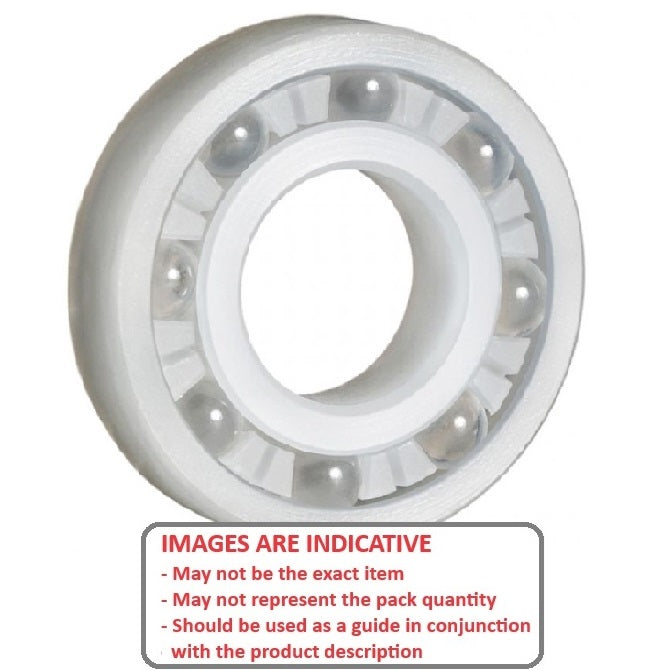

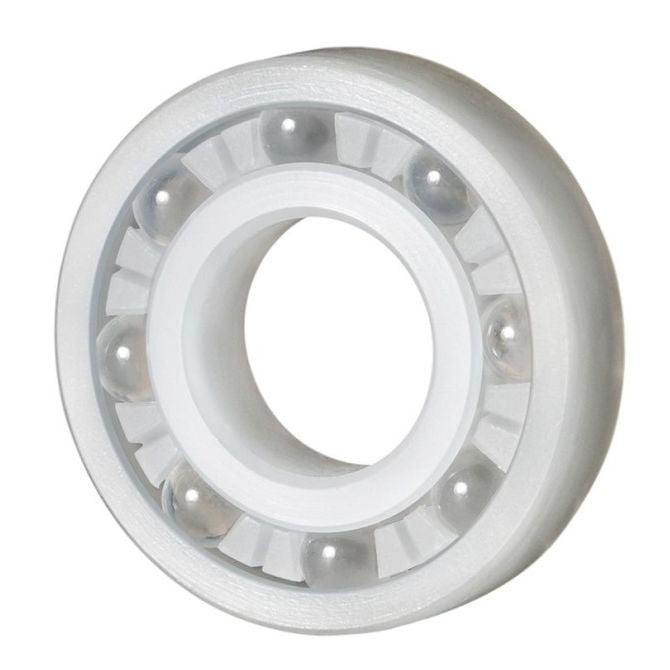

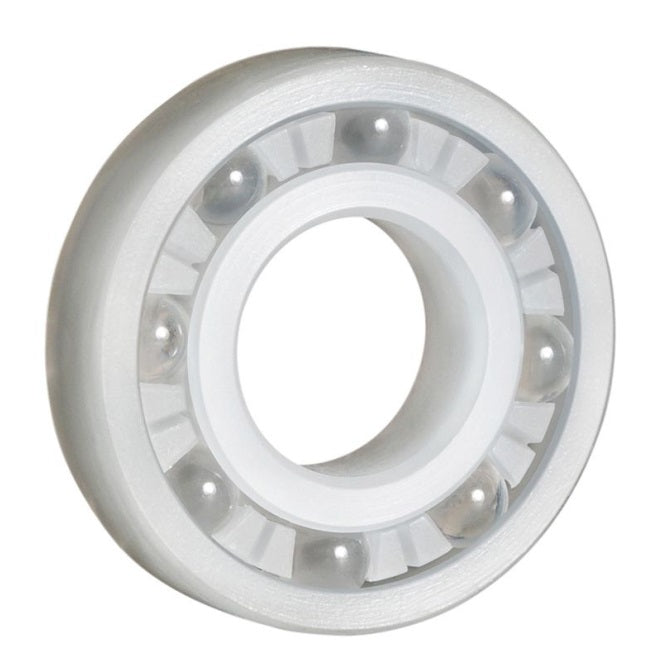

Plastic Bearings - 4.763x15.875x4.978 mm - PVDF with Glass Balls Bearing

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

KMS

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale

Category: Bearings - Plastic - PVDF - Glass Balls

Additional resources:
Tolerances
Plastic Bearings PDF Catalogue
Shafting

Price:

$101.68 AUD

~~$122.02 AUD~~ $101.68 AUD

Each

Excludes GST and overseas Taxes & Duties

Backorder

Order 50 or more
for $91.51 AUD Each

Product Details

ID (d): 4.763mm
_{+ 0.076 / - 0.000}
_{(4.763mm is 0.188 in.)}

PVDF with Glass Balls

ID (d): 4.763mm
_{+ 0.076 / - 0.000}
_{(4.763mm is 0.188 in.)}
O.D. (D): 15.875mm
_{+ 0.000 / - 0.102}
_{(15.875mm is 0.625 in.)}
Width (B): 4.978mm
_{+ 0.127 / - 0.000}
_{(4.978mm is 0.196 in.)}
Max RPM in Air: 2352
Notes: Unlubricated
Type: Radial
Dynamic Load Rating: 12.1Kg
Static Load Rating: 7.9Kg

Brand: KMS
Country of Origin: US

Product Compliance and Data

Similar to

KMS KR3A-G
R1106
KR3AG

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
