RP030-0240-C (PK-20)

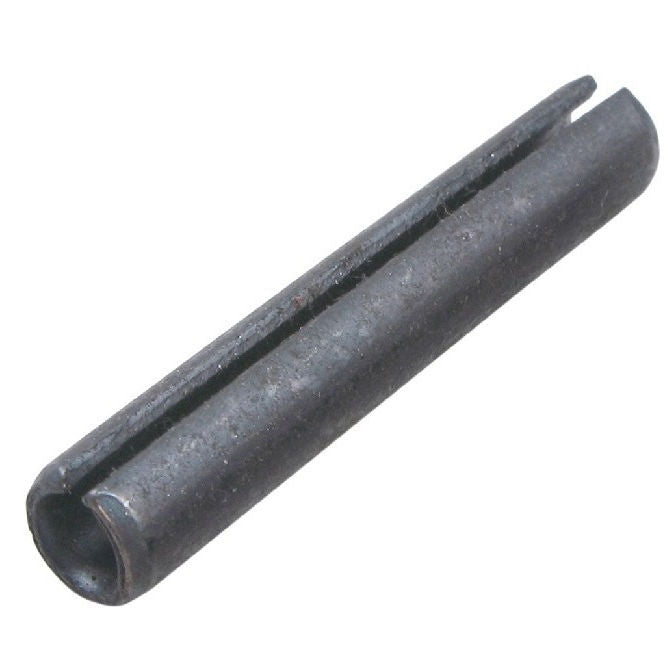

Roll Pins - 3x24x3.3 mm Carbon Steel - Carbon Spring Steel Self Finish Pin
Brighton Best
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleMaster Pins Catalogue PDF
Roll Pins Catalogue PDF
Coiled Pins
Order 50 or more packs of 20 (1000 pcs)
for $5.03 AUD per 20 pack
Couldn't load pickup availability
3x24x3.3 mm Roll Pins - Carbon Spring Steel Self Finish - Sold per pack of 20:
Base Category: Pins - Roll
Top Level Category: Pins - Roll - Carbon Steel
Product Details
Nominal Diameter (D): 3.00mm(3.00mm is 0.118 in.)
Carbon Spring Steel Self Finish
- Nominal Diameter (D): 3.00mm
(3.00mm is 0.118 in.)
- Length (L): 24.00mm
(24.00mm is 0.945 in.)
- Free Diameter: 3.30mm
(3.30mm is 0.13 in.)
- Thickness (S): 0.60mm
- Chamfer Length (cL): 0.50-0.70mm
- Standard: DIN1481 / ISO8752
- Type: Standard
Brand: Brighton Best
Country of Origin: TW
Product Compliance and Data
Similar to
- Brighton Best® 802126
- ALTPART
- 91611A161
- NoCor® SPM-030-024
- NoCor® SPMP-030-024
- Brighton Best® Spring-Pin-M3x24
- SAP324
- SAP3-24
- SpringPinM3x24
- MD1481MQB030X024
- SPMP030024
- SPM030024
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
RP0300240C, RP0300240
